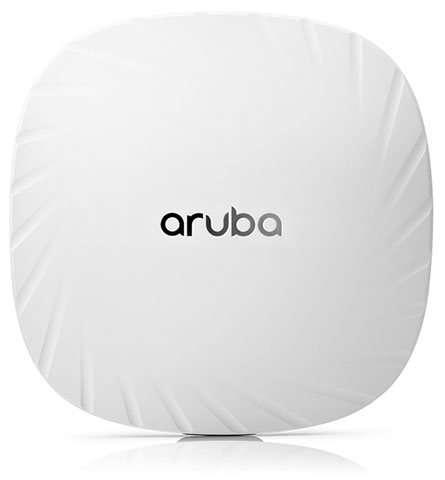

HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
802.11ax dual-radio with 2×2:2 MIMO
Up to 1.77 Gbps aggregate throughput
2×1 GbE Smart Rate (PoE-PD/PSE) ports
USB 2.0 host for on-premise analytics or security
OFDMA for optimized spectrum use
MU-MIMO for simultaneous multi-client support
WPA3, Enhanced Open and MACsec security
Specifications
5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.
INCREDIBLE EFFICIENCY The 500 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA), and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 500 Series provides groundbreaking wireless capabilities for budget-conscious deployments.
What wireless standards and throughput does the HPE Aruba R2H37A support?
The HPE Aruba R2H37A is an 802.11ax dual-radio access point with 2×2:2 MIMO that delivers up to 1.77 Gbps aggregate throughput. On the 5 GHz band, it supports HE80 SU-MIMO up to 1.2 Gbps and HE40 MU-MIMO up to 574 Mbps, while the 2.4 GHz band provides HE40 SU-MIMO up to 574 Mbps. This makes it ideal for cost-sensitive deployments that still require enterprise-class performance.
How many devices can connect to the HPE Aruba R2H37A simultaneously?
The R2H37A can support up to 256 clients per radio with 16 BSSIDs each, making it suitable for high-density environments like classrooms, branch offices, and retail stores. Built-in OFDMA and MU-MIMO technologies reduce airtime contention and enable simultaneous multi-client support across dozens of connected devices.
What are the power and connectivity options for the HPE Aruba R2H37A?
The R2H37A features two Smart Rate 1 GbE ports that support both PoE Power Delivery (PoE-PD) and PoE Power Sourcing (PoE-PSE) for flexible network integration. It accepts 802.3af/at PoE input or 12V DC power, with a maximum power consumption of 12W DC or 15.4W PoE, plus a USB 2.0 host port for local edge services and on-premise analytics.
What security features does the HPE Aruba R2H37A provide?
The R2H37A enforces security through WPA3, Enhanced Open, and MACsec protocols, ensuring enterprise-grade protection for wireless communications. These features protect against unauthorized access and provide secure network authentication for sensitive deployments.
Is the HPE Aruba R2H37A suitable for ceiling or wall mounting?
Yes, the R2H37A features a small form factor with versatile mounting options for both ceiling and wall installations. Its compact dimensions of 160 × 161 × 37 mm and lightweight design of 500g make it ideal for classrooms, branch offices, retail stores, and other environments where space is limited.
What automated RF optimization tools are included with the HPE Aruba R2H37A?
The R2H37A includes ClientMatch and AirMatch—automated RF tools that optimize performance and roaming without requiring manual tuning. These intelligent features automatically manage spectrum use and client connectivity to ensure consistent performance across your wireless network.
Full specifications (PDF)
