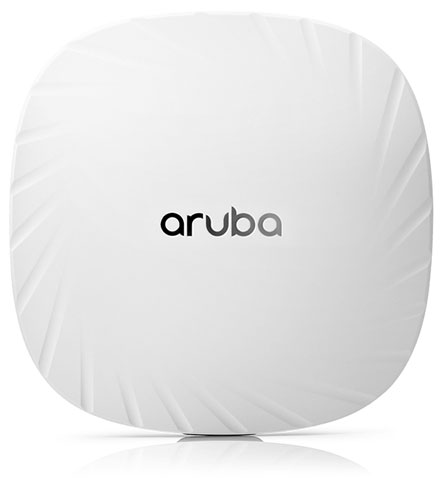

HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
802.11ax dual-radio with 2×2:2 MIMO
Up to 1.77 Gbps aggregate throughput
2×1 GbE Smart Rate (PoE-PD/PSE) ports
USB 2.0 host for on-premise analytics or security
OFDMA for optimized spectrum use
MU-MIMO for simultaneous multi-client support
WPA3, Enhanced Open and MACsec security
Specifications
5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
These affordable Wi-Fi 6 access points provide high-performance connectivity for any organization experiencing growing numbers of mobile, IoT and mobility requirements. With a maximum real-world aggregate data rate of 1.49 Gbps (HE80/HE20), they deliver the speed and reliability needed for venues and workplaces such as schools, midsize offices and retailers.
INCREDIBLE EFFICIENCY The 500 Series APs are also designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients.
Features include Orthogonal frequency-division multiple access (OFDMA), and cellular optimization. With up to 2 spatial streams (2SS) and 80MHz channel bandwidth (HE80), the 500 Series provides groundbreaking wireless capabilities for budget-conscious deployments.
What wireless standards and throughput does the HPE Aruba R2H35A support?
The HPE Aruba R2H35A is an 802.11ax (Wi-Fi 6) access point with dual 2×2:2 MIMO radios delivering up to 1.77 Gbps aggregate throughput. The 5 GHz radio supports HE80 SU-MIMO up to 1.2 Gbps and HE40 MU-MIMO up to 574 Mbps, while the 2.4 GHz radio provides HE40 SU-MIMO up to 574 Mbps. This makes it ideal for cost-sensitive enterprise deployments requiring modern wireless performance.
How many devices can connect to the HPE Aruba R2H35A simultaneously?
The R2H35A supports up to 256 associated client devices per radio with 16 BSSIDs each, enabling it to handle dozens of connected devices without performance degradation. Built-in OFDMA and MU-MIMO technologies reduce airtime contention and optimize spectrum use for simultaneous multi-client support in classrooms, branch offices, and retail environments.
What power options and connectivity ports are available on this access point?
The R2H35A features two Smart Rate 1 GbE ports with PoE-PD/PSE capability, allowing it to receive power from the network or provide power to downstream devices. It also includes a USB 2.0 host port for local edge services and supports both 802.3af/at PoE and 12V DC power input, with maximum power consumption of 12W DC or 15.4W PoE.
What security features does the HPE Aruba R2H35A provide?
The R2H35A enforces security through WPA3, Enhanced Open, and MACsec protocols, protecting your wireless network from unauthorized access and data interception. These enterprise-class security features ensure compliance with modern security standards while maintaining ease of deployment in cost-sensitive environments.
Is the HPE Aruba R2H35A suitable for ceiling or wall mounting?
Yes, the R2H35A features a small form factor (160 × 161 × 37 mm) with versatile mounting options for both ceiling and wall installation. Its compact 500g weight and flexible deployment options make it ideal for classrooms, branch offices, retail stores, and other campus environments where space is limited.
What automated RF optimization tools does this access point include?
The R2H35A includes ClientMatch and AirMatch automated RF tools that optimize performance and roaming without requiring manual tuning. These intelligent features automatically adjust to network conditions and client behavior, reducing configuration complexity while maintaining enterprise-class performance in dynamic environments. Contact us today at barcodesinc.com to learn how we can integrate this AP into your wireless infrastructure.
