HPE Aruba R2H22A Wireless Access Points
Full specifications (PDF)

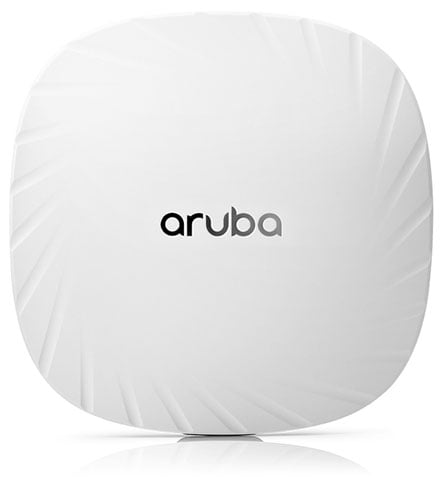

HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
- 802.11ax dual-radio with 2×2:2 MIMO
- Up to 1.77 Gbps aggregate throughput
- 2×1 GbE Smart Rate (PoE-PD/PSE) ports
- USB 2.0 host for on-premise analytics or security
- OFDMA for optimized spectrum use
- MU-MIMO for simultaneous multi-client support
- WPA3, Enhanced Open and MACsec security
Specifications
- 5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
- 2.4 GHz: HE40 SU-MIMO 2×2 up to 574 Mbps
- Client Capacity: 256 per radio; 16 BSSIDs each
- Power: 802.3af/at PoE or 12 V DC
- Max Power: 12 W DC; 15.4 W PoE
- Environment: 0 °C–50 °C; 5 %–93 % RH non-condensing
- Size: 160 × 161 × 37 mm; Weight: 500 g
Recommended Accessories
Category
- Access Point Accessories (1)
- Antennas (5)
- Cables, Connectors, and Adapters (18)
- HPE Aruba (34)
- Mounting Hardware and Stands (1)
- Network Antennas (6)
- PoE Injectors (3)
- Power Device (1)
- Wireless Adapters (3)
- Wireless Antennas (2)
Recommended Accessories for Model: HPE Aruba R2H22A Wireless Access Points
Top Access Point Accessories Purchased With HPE Aruba R2H22A
-
HPE Aruba R2H24A AccessoryAccess Point Accessories, HPE Aruba 500 Series, AP-505-CVR-20 20-pack for AP-505 white non-glossy snap-on coversItem on backorder — chat for lead time$291.78
Top Antennas Purchased With HPE Aruba R2H22A
-
HPE Aruba JW003A AntennaAntennas, HPE Aruba, AP-ANT-16 2.4-2.5GHz (3.9dBi)/4.9-5.9GHz (4.7dBi) 3 element MIMO antenna with downtilt omni-directional antenna.Item on backorder — chat for lead time$422.79 -
HPE Aruba JW009A AntennaAntennas, HPE Aruba, 2.4-2.5GHz (4dBi), 4.9-5.875GHz (6dBi) High-Gain Dual-Band Omni-Directional Direct-Mount Articulating Antenna (White).In Stock$62.56 -
HPE Aruba JW001A AntennaAntennas, HPE Aruba, AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single AntennaItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Cables, Connectors, and Adapters Purchased With HPE Aruba R2H22A
-
HPE Aruba R3K00A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5 mm connectorIn Stock$82.59 -
HPE Aruba R6Q99A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter ModuleIn Stock$103.81 -
HPE Aruba JW117A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba 750 Series, PC-AC-DEN 250V/10A 1.8 m C13 to AFSNIT 107-2-D1 (DK) AC Power CordItem on backorder — chat for lead time$18.03
Top HPE Aruba Purchased With HPE Aruba R2H22A
-
HPE Aruba JW629A PoE InjectorsARUBA 1 PORT GE 802.3AT MIDSPANItem on backorder — chat for lead time$46.67 -
HPE Aruba JW013A Wireless AntennaAruba Indoor/Outdoor MIMO Antenna - 4.90 GHz, 2.40 GHz to 6 GHz, 2.50 GHz - 7.5 dBi - Indoor, Outdoor, Wireless Data NetworkPole/Wall - RP-SMA ConnectorItem on backorder — chat for lead time$426.84 -
HPE Aruba R3K00A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5 mm connectorIn Stock$82.59
Top Mounting Hardware and Stands Purchased With HPE Aruba R2H22A
-
HPE Aruba JW020A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba, AP-ANT-MNT-3 AP-ANT-25A/28/35A/38 Azimuth and Elevation Adjustable Mount KitItem on backorder — chat for lead time$170.40
Top Network Antennas Purchased With HPE Aruba R2H22A
-
HPE Aruba JW003A AntennaAntennas, HPE Aruba, AP-ANT-16 2.4-2.5GHz (3.9dBi)/4.9-5.9GHz (4.7dBi) 3 element MIMO antenna with downtilt omni-directional antenna.Item on backorder — chat for lead time$422.79
-
HPE Aruba JW009A AntennaAntennas, HPE Aruba, 2.4-2.5GHz (4dBi), 4.9-5.875GHz (6dBi) High-Gain Dual-Band Omni-Directional Direct-Mount Articulating Antenna (White).In Stock$62.56
-
HPE Aruba JW001A AntennaAntennas, HPE Aruba, AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single AntennaItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top PoE Injectors Purchased With HPE Aruba R2H22A
-
HPE Aruba JW629A PoE InjectorsARUBA 1 PORT GE 802.3AT MIDSPANItem on backorder — chat for lead time$46.67
-
HPE Aruba R6P68A PoE InjectorsPoE Injectors, HPE Aruba, AP-PoE-AFGE 1-Port GbE 802.3af 15.4W midspan injectorItem on backorder — chat for lead time$109.36 -
HPE Aruba R6P67A PoE InjectorsPoE Injectors, HPE Aruba, AP-POE-ATSR 1P SR 802.3AT Midspan PoE injector, 30 WattIn Stock$155.74
Top Power Device Purchased With HPE Aruba R2H22A
-
HPE Aruba JW118A Power DevicePower Device, HPE Aruba, AC Power Cord (Europe), 250V/10A, 1.8m C13 to CEE7/7Item on backorder — chat for lead time$17.99
Top Wireless Adapters Purchased With HPE Aruba R2H22A
-
HPE Aruba R2X45A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB USB Zigbee BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y09A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 10-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y10A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 50-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Wireless Antennas Purchased With HPE Aruba R2H22A
-
HPE Aruba JW013A Wireless AntennaAruba Indoor/Outdoor MIMO Antenna - 4.90 GHz, 2.40 GHz to 6 GHz, 2.50 GHz - 7.5 dBi - Indoor, Outdoor, Wireless Data NetworkPole/Wall - RP-SMA ConnectorItem on backorder — chat for lead time$426.84
-
HPE Aruba JW012A Wireless AntennasWireless Access Points, HPE Aruba, AP-ANT-25A Dual-band 90 degree x 90 degree directional 5 dBi ±45 degree polarized, 2-element enterprise MIMO antenna with 2x RP-SMA pigtailsItem on backorder — chat for lead time$380.81
Frequently Asked Questions
What is the maximum throughput of the HPE Aruba R2H22A access point?
The HPE Aruba R2H22A delivers up to 1.77 Gbps aggregate throughput across its dual 2×2:2 radios. On the 5 GHz band, it achieves up to 1.2 Gbps in HE80 SU-MIMO mode or 574 Mbps in HE40 MU-MIMO mode, while the 2.4 GHz band supports up to 574 Mbps in HE40 SU-MIMO mode.
How many wireless devices can connect to the HPE Aruba R2H22A?
The R2H22A supports up to 256 clients per radio with 16 BSSIDs each, enabling enterprise-class deployments with dozens of simultaneous connected devices. Built-in MU-MIMO and OFDMA technologies reduce airtime contention and optimize performance across multiple users.
What security features does the HPE Aruba R2H22A provide?
The access point enforces security through WPA3, Enhanced Open, and MACsec protocols, delivering enterprise-grade wireless security. These features protect your network from unauthorized access while maintaining compatibility with modern security standards.
Can the HPE Aruba R2H22A power downstream devices?
Yes, the R2H22A includes two Smart Rate 1 GbE ports with PoE-PD/PSE capabilities, allowing it to receive power from the network or supply power to downstream devices. This dual-function design reduces cabling complexity in campus deployments.
What are the environmental operating conditions for the HPE Aruba R2H22A?
The R2H22A operates reliably in temperatures from 0°C to 50°C with humidity levels between 5% and 93% non-condensing. Its compact 160 × 161 × 37 mm form factor and 500g weight make it ideal for ceiling or wall-mounted installations in classrooms, branch offices, and retail stores.
Does the HPE Aruba R2H22A support local edge services?
Yes, the R2H22A includes a USB 2.0 host port that supports local edge services for on-premise analytics and security applications. This enables advanced functionality without requiring all traffic to be backhauled to a central controller, improving network responsiveness and reducing latency.
