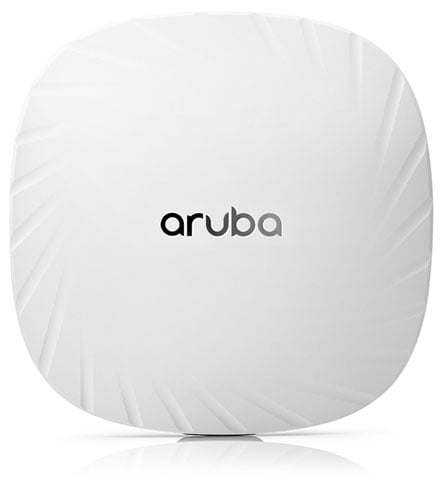

HPE Aruba R2H19A Wireless Access Points
Full specifications (PDF)
HPE Aruba 500 Series Indoor Wireless Access Points Model Overview
Designed for cost-sensitive deployments that demand enterprise-class features, this campus AP supports dual 2×2:2 radios on 5 GHz and 2.4 GHz bands to deliver up to 1.77 Gbps total throughput. Its small form factor and versatile ceiling or wall-mount options fit classrooms, branch offices and retail stores. Built-in OFDMA and MU-MIMO reduce airtime contention for dozens of connected devices, while automated RF tools—ClientMatch and AirMatch—optimize performance and roaming without manual tuning. The two Smart Rate 1 GbE ports provide PoE in or out for network or downstream devices, and the USB 2.0 host port supports local edge services. Security is enforced with WPA3, Enhanced Open and MACsec.
Key Features
- 802.11ax dual-radio with 2×2:2 MIMO
- Up to 1.77 Gbps aggregate throughput
- 2×1 GbE Smart Rate (PoE-PD/PSE) ports
- USB 2.0 host for on-premise analytics or security
- OFDMA for optimized spectrum use
- MU-MIMO for simultaneous multi-client support
- WPA3, Enhanced Open and MACsec security
Specifications
- 5 GHz: HE80 SU-MIMO up to 1.2 Gbps; HE40 MU-MIMO 2×2 up to 574 Mbps
- 2.4 GHz: HE40 SU-MIMO 2×2 up to 574 Mbps
- Client Capacity: 256 per radio; 16 BSSIDs each
- Power: 802.3af/at PoE or 12 V DC
- Max Power: 12 W DC; 15.4 W PoE
- Environment: 0 °C–50 °C; 5 %–93 % RH non-condensing
- Size: 160 × 161 × 37 mm; Weight: 500 g
Recommended Accessories
Category
- Access Point Accessories (1)
- Antennas (5)
- Cables, Connectors, and Adapters (18)
- HPE Aruba (34)
- Mounting Hardware and Stands (1)
- Network Antennas (6)
- PoE Injectors (3)
- Power Device (1)
- Wireless Adapters (3)
- Wireless Antennas (2)
Recommended Accessories for Model: HPE Aruba R2H19A Wireless Access Points
Top Access Point Accessories Purchased With HPE Aruba R2H19A
-
HPE Aruba R2H24A AccessoryAccess Point Accessories, HPE Aruba 500 Series, AP-505-CVR-20 20-pack for AP-505 white non-glossy snap-on coversItem on backorder — chat for lead time$291.78
Top Antennas Purchased With HPE Aruba R2H19A
-
HPE Aruba JW003A AntennaAntennas, HPE Aruba, AP-ANT-16 2.4-2.5GHz (3.9dBi)/4.9-5.9GHz (4.7dBi) 3 element MIMO antenna with downtilt omni-directional antenna.Item on backorder — chat for lead time$422.79 -
HPE Aruba JW009A AntennaAntennas, HPE Aruba, 2.4-2.5GHz (4dBi), 4.9-5.875GHz (6dBi) High-Gain Dual-Band Omni-Directional Direct-Mount Articulating Antenna (White).In Stock$62.56 -
HPE Aruba JW001A AntennaAntennas, HPE Aruba, AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single AntennaItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Cables, Connectors, and Adapters Purchased With HPE Aruba R2H19A
-
HPE Aruba R3K00A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5 mm connectorIn Stock$82.59 -
HPE Aruba R6Q99A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-MOD-SERU Micro-USB TTL3.3V to RJ45 RS232 AP Console Adapter ModuleIn Stock$103.81 -
HPE Aruba JW117A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba 750 Series, PC-AC-DEN 250V/10A 1.8 m C13 to AFSNIT 107-2-D1 (DK) AC Power CordItem on backorder — chat for lead time$18.03
Top HPE Aruba Purchased With HPE Aruba R2H19A
-
HPE Aruba JW629A PoE InjectorsARUBA 1 PORT GE 802.3AT MIDSPANItem on backorder — chat for lead time$46.67 -
HPE Aruba JW013A Wireless AntennaAruba Indoor/Outdoor MIMO Antenna - 4.90 GHz, 2.40 GHz to 6 GHz, 2.50 GHz - 7.5 dBi - Indoor, Outdoor, Wireless Data NetworkPole/Wall - RP-SMA ConnectorItem on backorder — chat for lead time$426.84 -
HPE Aruba R3K00A Cables, Connectors, and AdaptersCables, Connectors, and Adapters, HPE Aruba, AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5 mm connectorIn Stock$82.59
Top Mounting Hardware and Stands Purchased With HPE Aruba R2H19A
-
HPE Aruba JW020A Mounting Hardware and StandsMounting Hardware and Stands, HPE Aruba, AP-ANT-MNT-3 AP-ANT-25A/28/35A/38 Azimuth and Elevation Adjustable Mount KitItem on backorder — chat for lead time$170.40
Top Network Antennas Purchased With HPE Aruba R2H19A
-
HPE Aruba JW003A AntennaAntennas, HPE Aruba, AP-ANT-16 2.4-2.5GHz (3.9dBi)/4.9-5.9GHz (4.7dBi) 3 element MIMO antenna with downtilt omni-directional antenna.Item on backorder — chat for lead time$422.79
-
HPE Aruba JW009A AntennaAntennas, HPE Aruba, 2.4-2.5GHz (4dBi), 4.9-5.875GHz (6dBi) High-Gain Dual-Band Omni-Directional Direct-Mount Articulating Antenna (White).In Stock$62.56
-
HPE Aruba JW001A AntennaAntennas, HPE Aruba, AP-ANT-13B 2.4-2.5GHz (4.4dBi)/4.9-5.9GHz (3.3dBi) Downtilt Smallest Omni-Dir Single AntennaItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top PoE Injectors Purchased With HPE Aruba R2H19A
-
HPE Aruba JW629A PoE InjectorsARUBA 1 PORT GE 802.3AT MIDSPANItem on backorder — chat for lead time$46.67
-
HPE Aruba R6P68A PoE InjectorsPoE Injectors, HPE Aruba, AP-PoE-AFGE 1-Port GbE 802.3af 15.4W midspan injectorItem on backorder — chat for lead time$109.36 -
HPE Aruba R6P67A PoE InjectorsPoE Injectors, HPE Aruba, AP-POE-ATSR 1P SR 802.3AT Midspan PoE injector, 30 WattIn Stock$155.74
Top Power Device Purchased With HPE Aruba R2H19A
-
HPE Aruba JW118A Power DevicePower Device, HPE Aruba, AC Power Cord (Europe), 250V/10A, 1.8m C13 to CEE7/7Item on backorder — chat for lead time$17.99
Top Wireless Adapters Purchased With HPE Aruba R2H19A
-
HPE Aruba R2X45A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB USB Zigbee BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y09A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 10-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase -
HPE Aruba R2Y10A Wireless AdaptersWireless Adapters, HPE Aruba, AP-USB-ZB 50-pk USB ZB BLE DongleItem on backorder — chat for lead timePlease Call for Pricing or to Purchase
Top Wireless Antennas Purchased With HPE Aruba R2H19A
-
HPE Aruba JW013A Wireless AntennaAruba Indoor/Outdoor MIMO Antenna - 4.90 GHz, 2.40 GHz to 6 GHz, 2.50 GHz - 7.5 dBi - Indoor, Outdoor, Wireless Data NetworkPole/Wall - RP-SMA ConnectorItem on backorder — chat for lead time$426.84
-
HPE Aruba JW012A Wireless AntennasWireless Access Points, HPE Aruba, AP-ANT-25A Dual-band 90 degree x 90 degree directional 5 dBi ±45 degree polarized, 2-element enterprise MIMO antenna with 2x RP-SMA pigtailsItem on backorder — chat for lead time$380.81
Frequently Asked Questions
What wireless standard does the HPE Aruba R2H19A support and what throughput can I expect?
The HPE Aruba R2H19A supports 802.11ax (Wi-Fi 6) with dual 2×2:2 MIMO radios on both 5 GHz and 2.4 GHz bands, delivering up to 1.77 Gbps aggregate throughput. On the 5 GHz band, you can achieve up to 1.2 Gbps in HE80 SU-MIMO mode, while the 2.4 GHz band supports up to 574 Mbps in HE40 SU-MIMO mode. We offer this access point for deployments requiring enterprise-class performance in cost-sensitive environments.
How many devices can connect to the HPE Aruba R2H19A and what security features are included?
The R2H19A supports up to 256 associated client devices per radio with 16 BSSIDs each, making it ideal for classrooms, retail stores, and branch offices with dozens of connected devices. Security is enforced through WPA3, Enhanced Open, and MACsec protocols to protect your wireless network. Contact us today to discuss security requirements for your deployment.
What are the power and connectivity options for the HPE Aruba R2H19A?
The R2H19A features two Smart Rate 1 GbE ports that support both Power over Ethernet (PoE) Power Delivery and Power Sourcing Equipment (PSE) capabilities, allowing flexible network connectivity and downstream device powering. It accepts 802.3af/at PoE input or 12 V DC power, with maximum power consumption of 12 W DC or 15.4 W PoE. Additionally, a USB 2.0 host port supports local edge services and on-premise analytics. Visit barcodesinc.com to explore our full range of access point options.
Is the HPE Aruba R2H19A suitable for ceiling or wall mounting in different environments?
Yes, the R2H19A is designed with a small form factor (160 × 161 × 37 mm) and versatile mounting options for both ceiling and wall installation, making it ideal for classrooms, branch offices, and retail stores. It operates reliably in environments from 0°C to 50°C with humidity levels from 5% to 93% non-condensing, ensuring stable performance across diverse deployment scenarios. We offer this access point for organizations requiring flexible deployment flexibility.
What automated RF optimization features does the R2H19A provide for network performance?
The R2H19A includes ClientMatch and AirMatch automated RF tools that optimize performance and roaming without requiring manual tuning, reducing the operational overhead of your wireless network. Built-in OFDMA and MU-MIMO technologies reduce airtime contention and enable simultaneous multi-client support, delivering consistent performance across dozens of connected devices. These intelligent features make the R2H19A an excellent choice for enterprise deployments seeking automated network optimization.
What is the maximum client capacity and BSSID configuration for the HPE Aruba R2H19A?
The R2H19A supports a maximum of 256 associated client devices per radio and can be configured with up to 16 BSSIDs per radio, allowing flexible network segmentation for different user groups or departments. This configuration capability makes it suitable for multi-tenant environments such as educational institutions, hospitality venues, and enterprise campuses. Contact us today to discuss the optimal BSSID configuration for your specific use case.
