Aruba Q9H64A Data Networking

The Aruba Q9H64A Data Networking has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

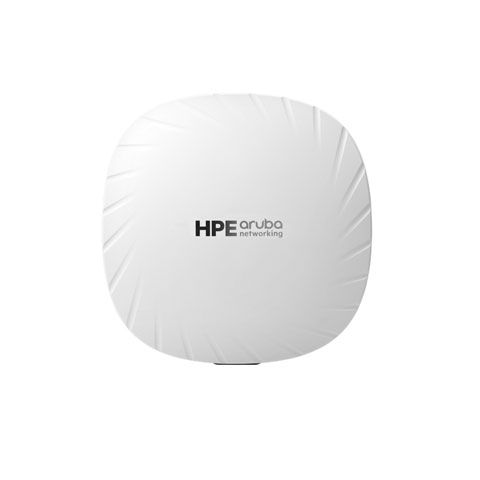

Aruba - Aruba AP-514 (EG) TAA Unified AP
  • High performance Dual Radio 802.11ax AP with OFDMA and Multi-User MIMO (MU-MIMO)
  • Supports all mandatory and several optional 802.11ax features
  • Maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps)
  • Mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices
  • Includes Bluetooth 5 and Zigbee radios for location and IoT use-case
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aruba Parts Accessory Model Overview
Products and parts from Aruba.
Aruba Q9H64A Data Networking Overview
With an increasing number of mobile and Internet of Things (IoT) devices reliant on wireless access, networks must be capable of accommodating a diverse mixture of device types, applications and services.

The Aruba 510 series campus access points with 802.11ax technology are designed to deliver high performance access for mobile and (IOT) devices in environments where density is an issue. The 510 series uses 802.11ax features to efficiently and simultaneously serve multiple clients and traffic types in dense environments, increasing data rates for both individual device and overall system.

The 510 series support all mandatory and several optional 802.11ax features, which includes up- and downlink OFDMA with up to 16 resource units, multi-user MIMO (MU-MIMO), 4x4 MIMO with up to four spatial streams in 5GHz and 2x2 with up to two special streams in 2.4GHz, channel bandwidths up to 160MHz (5GHz; 40MHz in 2.4GHz), and 1024-QAM modulation.

The 510 series supports maximum data rates of 4.8Gbps in the 5GHz band and 575Mbps in the 2.4GHz band (for an aggregate peak data rate of 5.4Gbps). Each AP supports up to 256 associated client devices per radio (typical recommended limit for active clients is 150), making the mid-range 802.11ax 510 series APs ideal for high density environments, such as schools, retail branches, hotels and enterprise offices.

In addition to 802.11ax standard capabilities, the 510 Series supports unique features like Aruba ClientMatch radio management and additional radios for location services and IoT applications. This delivers an unsurpassed user experience in today's all-wireless digital work environment and offers up to 4x higher capacity in a cost-effective manner.

HIGH EFFICIENCY

The Aruba 510 Series will efficiently and simultaneously serve multiple clients, increasing data rates for both individual devices and as an overall system. Two key features of 802.11ax are multi-user connectivity and enhanced efficiency using Orthogonal Frequency Division Multiple Access (OFDMA) and multi-user - multiple input multiple output (MU-MIMO).

Multi-user transmission with downlink and uplink OFDMA - OFDMA increases user data rates and also reduces latency, especially for large numbers of devices with short frames or low data-rate requirements, such as voice and IoT devices. By providing multi-user capabilities, a channel can be divided in the frequency domain, and multiple transmissions can be carried simultaneously. OFDMA is particularly effective in raising network efficiency and capacity where there are many devices, short frames, or low data-rate streams.

Multi user transmission with downlink multi-user MIMO - MU-MIMO is another multi-user capability, originally introduced in 802.11ac. This improves network capacity by allowing multiple devices to transmit simultaneously.

Energy efficiency - As higher performance 802.11ax access points will handle a greater number of devices and traffic, they will be driving the need for more power consumption. To offset these demands, Aruba NetInsight includes a feature called GreenAP which allows the 510 series access points to draw less power when it's not being used, such as evenings when the buildings are empty.
Technical Information
Wireless LAN Standard:
802.11ax
Bluetooth Standard:
Bluetooth 5
Frequency Band:
  • 2.40 GHz
  • 5 GHz
Wireless Transmission Speed:
5.40 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
  • 2.5 Gigabit Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE PD Port:
Yes
USB:
Yes
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
  • Rail-mountable
Height:
1.8"
Width:
7.9"
Depth:
7.9"
Weight (Approximate):
1.79 lb
Miscellaneous
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0190017273648
UPC: 190017273648
EAN: 0190017273648
UNSPSC: 43222631
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Aruba Q9H64A Data Networking is also known as HPE-Q9H64A
