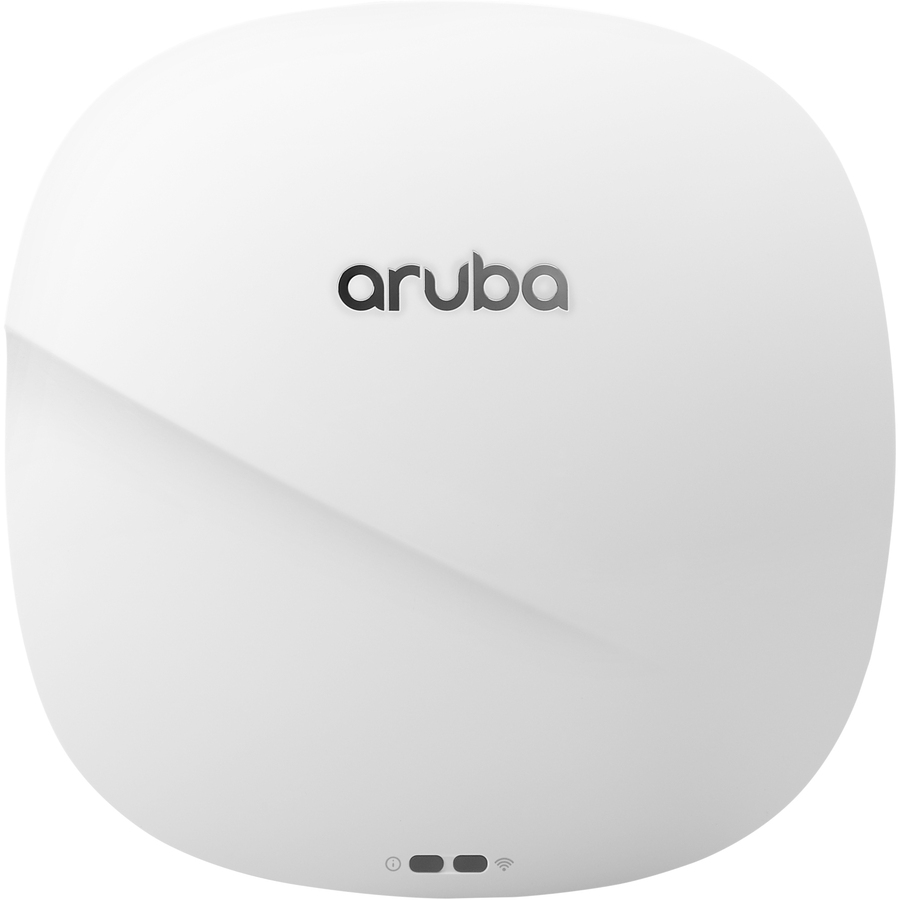

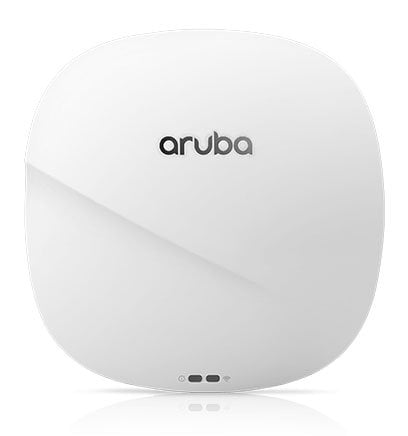

HPE Aruba 340 Series Wireless Access Points Model Overview
The Aruba 340 Series Campus Access Points deliver outstanding wireless performance, ideal for mobile devices in high-density environments such as lecture halls, auditoriums, and offices. Featuring advanced 802.11ac Wave 2 technology, these access points offer data rates up to 4.3 Gbps in dual-5 GHz mode. The integrated HPE SmartRate multi-gig Ethernet port eliminates wired bottlenecks, while Aruba’s ClientMatch technology enhances device performance and network efficiency. With flexible deployment options, the Aruba 340 Series ensures a top-tier user experience tailored to the demands of modern digital workplaces. Key Features:
Exceptional Data Speeds: Maximum rates of 2,166 Mbps in the 5 GHz band and up to 800 Mbps in the 2.4 GHz band.
Multi-User MIMO: Supports multiple simultaneous connections to maximize network capability.
Integrated Bluetooth LE: Ensures advanced location-based services and asset tracking.
Flexible Deployment Options: Supports both controller-based and controllerless modes.
Advanced RF Management: Automatically optimizes channel selection and power for optimal performance.
Specifications:
AP Types: AP-344 (External Antenna), AP-345 (Internal Antenna).
Wi-Fi Standards: 802.11ac Wave 2, 802.11n.
Data Rates: Up to 4.3 Gbps in dual-5 GHz mode.
Environmental: Operating Temp: 0° C to +50° C, Humidity: 5% to 93% non-condensing.
Power Consumption: Max: 25.1W in dual-5 GHz mode (PoE).
Mounting: Ships with ceiling mounting clips, optional mounts available.
HPE Aruba JZ033A Wireless Access Points Overview
The Aruba 340 series access points provide the fastest 802.11ac gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated, 802.3bz Compliant, HPE SmartRate multi-gig Ethernet port to eliminate wired bottlenecks, these APs offer unmatched wireless performance and capacity. The unique and flexible dual-5 GHz architecture of the 340 series offers a way to double 5 GHz capacity where needed, without compromise or restrictions.
Thanks to Aruba's advanced ClientMatch technology, the 340 series can automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically group Wave 2 capable devices onto a single Wave 2 radio so that performance benefits of multi-user MIMO can be realized - without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.
With maximum data rates of 2,166 Mbps in the 5 GHz band1 and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 3.0 Gbps in dual-band mode and 4.3 Gbps in dual-5 GHz mode), the 340 series APs deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.
These high performance and high density 340 Series 802.11ac access points support up to 160 MHz channel bandwidth (VHT160), and 4 spatial streams (4SS) for both SU- and MU-MIMO communications.
The 340 series APs have an integrated Bluetooth LowEnergy (BLE) radio, which can be used as an Aruba beacon for advanced location, indoor wayfinding, and to enable proximity-based push notification services. The integrated beacon radio also enables the remote management of battery-powered and other standalone beacons in a largescale network of Aruba beacons. It enables businesses to leverage mobility context to develop applications that can deliver an enhanced user experience and increase the value of the wireless network for organizations.
What wireless standard does the HPE Aruba JZ033A support?
The HPE Aruba JZ033A AP-345 supports 802.11ac, delivering the fastest gigabit data speeds in the 340 Series. This standard provides excellent performance for modern mobile devices and bandwidth-intensive applications in enterprise digital workplaces. We offer this access point as part of our comprehensive wireless networking solutions.
Does the Aruba AP-345 include Bluetooth capability?
Yes, the HPE Aruba JZ033A features an integrated Bluetooth Low Energy (BLE) radio that functions as an Aruba Beacon. This enables advanced indoor location services, wayfinding capabilities, and proximity-based push notifications for enhanced user experiences. Contact us today to learn how this feature can support your workplace mobility strategy.
What antenna configuration does the AP-345 use?
The HPE Aruba JZ033A is equipped with dual 4x4:4 MU-MIMO radios with internal antennas. This configuration optimizes signal distribution and supports multiple simultaneous device connections, making it ideal for high-density wireless environments. Visit barcodesinc.com to explore our complete Aruba access point lineup.
Is the Aruba AP-345 suitable for both indoor and outdoor deployment?
The HPE Aruba JZ033A is designed as a unified campus access point capable of supporting diverse deployment scenarios across your organization. Its robust construction and integrated antenna design make it versatile for various enterprise environments. Contact us today to discuss your specific deployment requirements.
What makes the Aruba 340 Series different from previous generation access points?
The 340 Series, including the JZ033A AP-345, delivers faster 802.11ac gigabit speeds while adding integrated Bluetooth Low Energy functionality for location and proximity services. The dual 4x4:4 MU-MIMO configuration provides superior performance for mobile-first digital workplaces. We offer this latest-generation technology to keep your network competitive.
Can the HPE Aruba AP-345 handle high-density wireless environments?
Yes, the dual 4x4:4 MU-MIMO radio design enables the AP-345 to efficiently serve multiple devices simultaneously, making it well-suited for high-density deployments in warehouses, logistics facilities, and enterprise campuses. The 802.11ac standard ensures sufficient bandwidth for demanding applications. Contact us today for deployment planning assistance.
The HPE Aruba JZ033A Wireless Access Points is also known as
HPE-JZ033A
