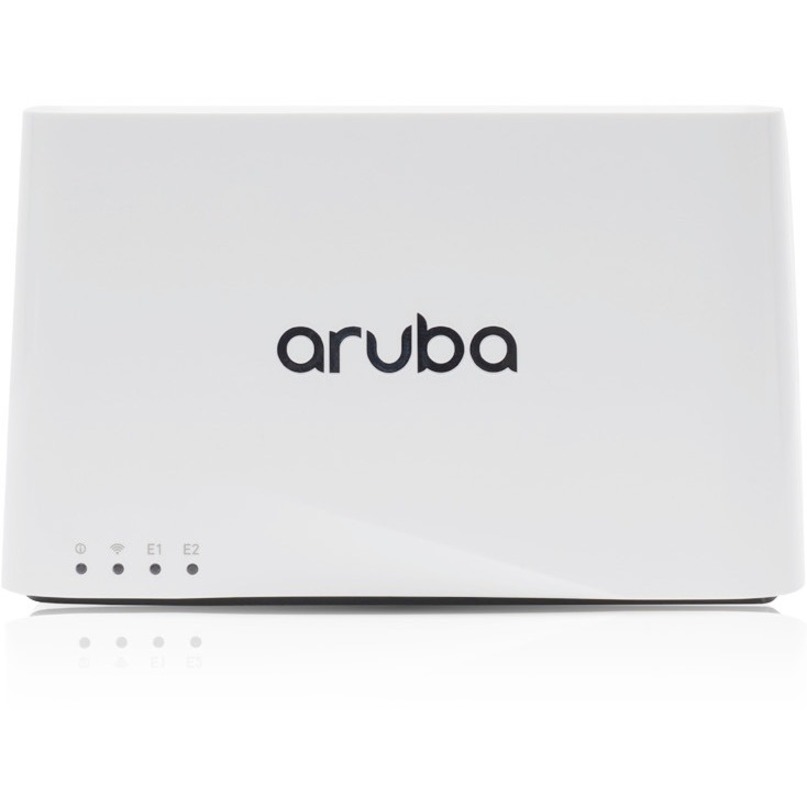

HPE Aruba AP-203R Wireless Access Points Model Overview
The Aruba 203R Series Remote Access Point is an ideal solution for home and small branch office environments, providing fast and secure 802.11ac wireless and wired network access. With its unique flexible radio architecture, the 203R can be configured to operate in either dual radio or single radio mode, enhancing performance up to 867Mbps. Users benefit from enterprise-class features such as Adaptive Radio Management and integrated Bluetooth Low-Energy for enhanced location services. Easy deployment options and remote management capabilities make it a smart choice for extending corporate resources to remote locations.
Key Features
Flexible Deployment: Supports both controller-based and controllerless modes.
High Performance: Up to 867Mbps in the 5GHz band.
Integrated BLE Radio: Location-based services for enhanced management.
Adaptive Radio Management: Automatically optimizes network settings for performance.
Type: Indoor flexible radio with internal antennas.
Wi-Fi Standards: 802.11ac (5GHz) and 802.11n (2.4GHz).
Maximum Throughput: 867Mbps (5GHz), 400Mbps (2.4GHz).
Operating Modes: Remote AP (RAP), Air Monitor (AM), Secure Enterprise Mesh.
LED Indicators: Power/system, radio status, and network port status.
Power Consumption: Maximum 8.2W, idle 5W.
Weight: 320g (AP-203R), 340g (AP-203RP).
Operating Temperature: 0° C to +40° C.
Warranty: Limited lifetime warranty.
HPE Aruba JY714A Wireless Access Points Overview
The multifunctional Aruba 203R Remote AP delivers secure and fast 802.11ac wireless and wired network access to corporate resources for branch and home offices.
Unique in the industry, the compact Aruba 203R remote AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band when operating in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203R AP are 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band.
The 203R AP offers a variety of enterprise-class features, including role-based network access, policy-based forwarding, and Adaptive Radio Management (ARM), which gives remote workers the same high-quality Wi-Fi experience they get at corporate headquarters. When additional capacity is desired, this low-cost 203R AP can be quickly added to an existing Aruba WLAN to improve network performance.
Managed by the Aruba Mobility Controller, the 203R AP supports centralized configuration, data encryption, policy enforcement and network services. It extends corporate resources to remote locations by establishing site-to-site VPN tunnels to the data center.
With an integrated Aruba Beacon, the 203R AP simplifies the remote management of a large scale network of battery-powered BLE Aruba Beacons and provides advanced location and indoor wayfinding, and proximity-based push notification capabilities.
For large installations across multiple sites, the Aruba Activate service significantly reduces deployment time by automating device provisioning, firmware upgrades, and inventory management. With Aruba Activate, APs can configure themselves when powered up, slashing the cost and time to deploy wireless in remote branches and home offices.
UNIQUE BENEFITS
Deploy with or without controller
The 203R can be deployed in either controller-based (ArubaOS) or controllerless (InstantOS) deployment mode.
New 802.11ac flexible radio architecture
The 203R AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode.
Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) or up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual radio mode, these max speeds are up to 433Mbps (5GHz) and 200Mbps (2.4GHz).
Built-in Bluetooth Low-Energy (BLE) radio
Delivers location-based services for BLE-enabled mobile devices.
Enables management of your deployment of battery-powered Aruba Beacons.
Advanced Cellular Coexistence (ACC)
Minimizes the impact from out-of-band interference from sources such as 3G/4G cellular networks.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
What are the maximum data rates for the HPE Aruba JY714A 203R Remote AP?
The Aruba 203R Remote AP supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band when operating in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates are 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band. This flexible configuration allows you to optimize performance based on your network requirements.
Can the Aruba 203R be configured for different operating modes?
Yes, the Aruba 203R is uniquely software configurable to operate in either 1x1 dual radio mode or 2x2 single radio mode, depending on your capacity and coverage needs. This flexibility allows you to quickly adapt the access point to changing network demands without requiring hardware changes.
What makes the Aruba 203R suitable for branch and home office deployments?
The Aruba 203R Remote AP is specifically designed as a remote access point that delivers secure and fast 802.11ac wireless and wired network access to corporate resources for branch and home offices. It includes enterprise-class features like role-based network access, policy-based forwarding, and Adaptive Radio Management (ARM) to ensure remote workers experience the same high-quality Wi-Fi they get at corporate headquarters.
How does Adaptive Radio Management (ARM) improve wireless network performance?
Adaptive Radio Management (ARM) automatically assigns optimal channel and power settings while providing airtime fairness and ensuring access points stay clear of RF interference sources. This technology delivers reliable, high-performance WLANs by continuously monitoring and adjusting radio parameters to maintain consistent coverage and throughput across your deployment.
Is the Aruba 203R suitable for adding capacity to existing Aruba WLAN installations?
Yes, the low-cost Aruba 203R Remote AP can be quickly added to an existing Aruba WLAN to improve network performance and expand capacity. Its software-configurable design and compatibility with Aruba's centralized management make it an efficient solution for scaling your wireless infrastructure.
What integrated security features does the Aruba 203R offer?
The Aruba 203R includes integrated wireless intrusion protection with threat detection and mitigation, eliminating the need for separate RF sensors and security appliances. It also features an integrated Trusted Platform Module (TPM) for secure storage of credentials and keys, along with IP reputation and security services that identify and block malicious files, URLs, and IPs to protect against advanced online threats.
