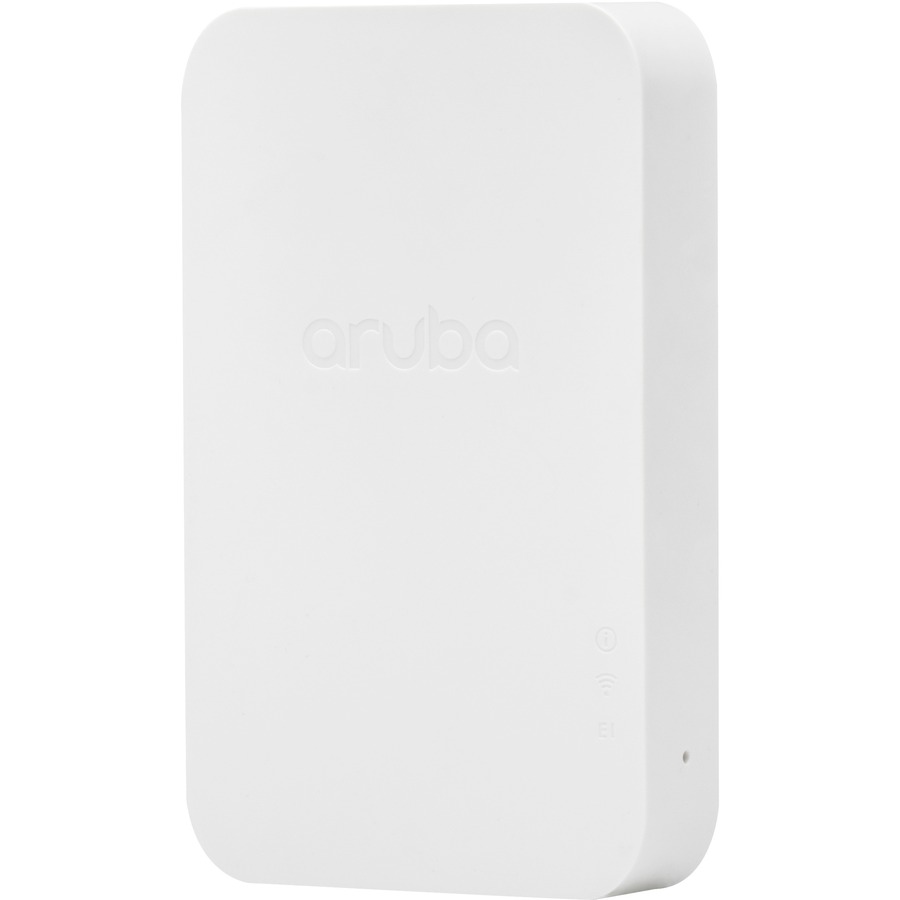

HPE Aruba AP-203H Wireless Access Points Model Overview
The Aruba 203H Hospitality Access Point is the ideal solution for cost-effective, high-performance Wi-Fi networks in hospitality and branch office environments. Designed to function in either a 1x1 dual radio mode or a 2x2 single radio mode, the 203H delivers speeds of up to 867Mbps in the 5GHz band and up to 400Mbps in the 2.4GHz band. With flexible mounting options and powered by Power over Ethernet (PoE), it brings together robust wireless connectivity and wired access in a compact device, making it perfect for hotel rooms, dormitories, and small offices. Key Features:
Two Devices in One: Easily deployable as a wall-mounted or desk-mounted access point.
Flexible Deployment: Supports both controller-based and controllerless operation modes.
Advanced Security: Integrated wireless intrusion protection and threat mitigation features.
Adaptive Radio Management: Ensures reliable high-performance WLANs by managing RF interference.
Bluetooth Support: Optional BLE module for advanced location services and push notifications.
Specifications:
AP Type: Indoor, 802.11ac dual-band with flexible radio options.
Max Data Rates: Up to 867Mbps (5GHz) and 400Mbps (2.4GHz).
Power: PoE powered with max consumption of 7.4W.
Environment: Operating temperature: 0° C to +40° C; Humidity: 5% to 93% non-condensing.
Mounting: Supports single-gang wall-box and optional desk mount.
HPE Aruba JY695A Wireless Access Points Overview
This cost-effective 802.11ac access point with single or dual radio mode delivers high performance Wi-Fi networks for hospitality and branch offices, while minimizing costs for low to moderate density areas.
The compact Aruba 203H AP is software configurable to operate in either 1x1 dual radio mode, or 2x2 single radio mode. It supports up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4 GHz band in single radio 2x2 mode. In dual radio 1x1 mode, the maximum data rates for the 203H AP are up to 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band.
The 203H AP can be easily mounted to a standard data wall-box using the existing structured cabling system or converted to a desk mounted AP using an optional mounting kit. With its flexible deployment options, the 203H is designed to deliver high-speed Wi-Fi for cost-sensitive, medium-density environments. It ensures the most cost-effective Wi-Fi connectivity for indoor premises including hotel rooms, dormitories, small offices and remote workstations.
Powered by PoE, the 203H AP minimizes power consumption with rich features that further facilitates a highly efficient and reliable wireless network. The 802.11ac 203H AP combines wireless and wired access in a single compact device. The local Gigabit Ethernet port can securely attach wired devices to your network. Additionally, the USB host interface on the AP allows the plug-in of Aruba BLE radio modules to enable advanced location and indoor wayfinding, and proximity-based push notification services.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
What are the maximum data rates for the HPE Aruba JY695A access point?
The HPE Aruba 203H AP delivers up to 867Mbps in the 5GHz band or up to 400Mbps in the 2.4GHz band when operating in single radio 2x2 mode. In dual radio 1x1 mode, maximum data rates are up to 433Mbps in the 5GHz band and 200Mbps in the 2.4GHz band. This flexible performance makes it ideal for cost-sensitive deployments requiring reliable mid-range throughput.
Can the HPE Aruba 203H AP be configured for different radio modes?
Yes, the HPE Aruba 203H AP is software configurable to operate in either 1x1 dual radio mode or 2x2 single radio mode, giving you flexibility to optimize performance based on your deployment needs. This adaptability allows you to balance coverage and data rates without hardware changes, making it suitable for various network environments from hospitality to branch offices.
What mounting options are available for the HPE Aruba 203H access point?
The HPE Aruba 203H AP can be easily mounted to a standard data wall-box using your existing structured cabling system for permanent installations. It can also be converted to a desk-mounted AP using an optional mounting kit, providing flexibility for temporary or repositionable deployments in offices, hotel rooms, and remote workstations.
Is the HPE Aruba 203H AP suitable for hospitality environments?
Yes, the HPE Aruba 203H AP is specifically designed for hospitality and branch office environments with low to moderate density areas. Its cost-effective 802.11ac performance and flexible deployment options make it ideal for hotel rooms, dormitories, small offices, and remote workstations where reliable, budget-conscious Wi-Fi connectivity is essential.
What wireless standards does the HPE Aruba JY695A support?
The HPE Aruba 203H AP is an 802.11ac wireless access point that supports both 5GHz and 2.4GHz bands. This dual-band capability ensures compatibility with modern Wi-Fi devices while maintaining backward compatibility with legacy equipment in mixed-device environments.
Where can I purchase the HPE Aruba 203H access point?
We offer the HPE Aruba JY695A wireless access point with expert support and competitive pricing. Contact us today or visit barcodesinc.com to check availability, get detailed specifications, and discuss which access point solution best fits your network deployment needs.
The HPE Aruba JY695A Wireless Access Points is also known as
HPE-JY695A
