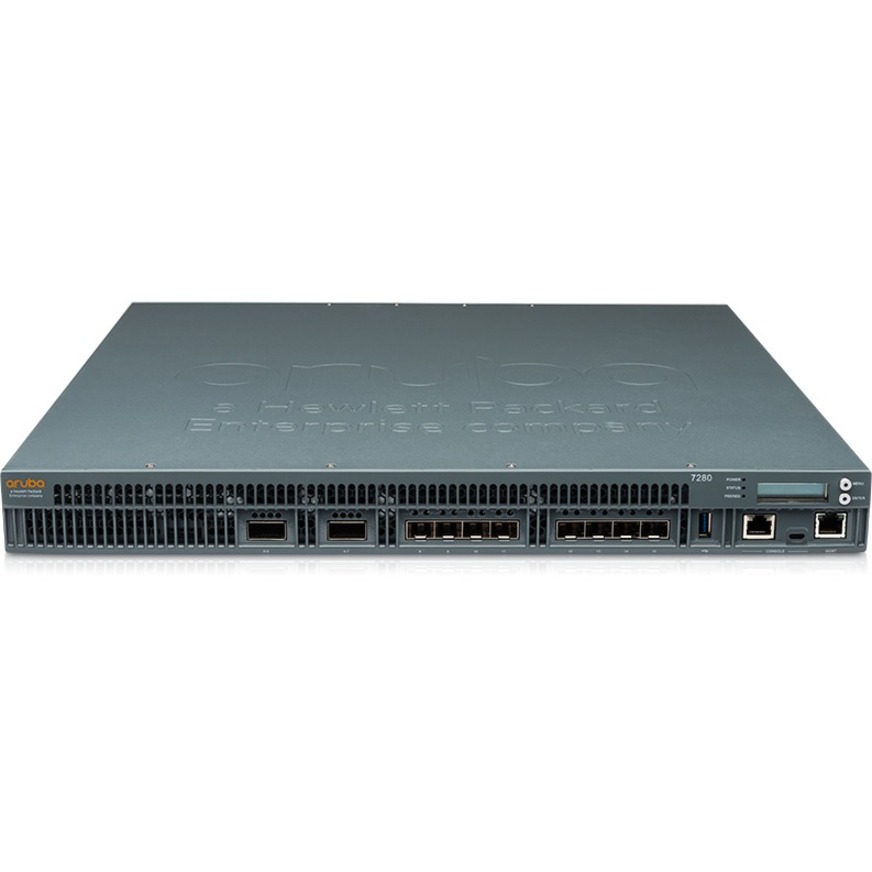

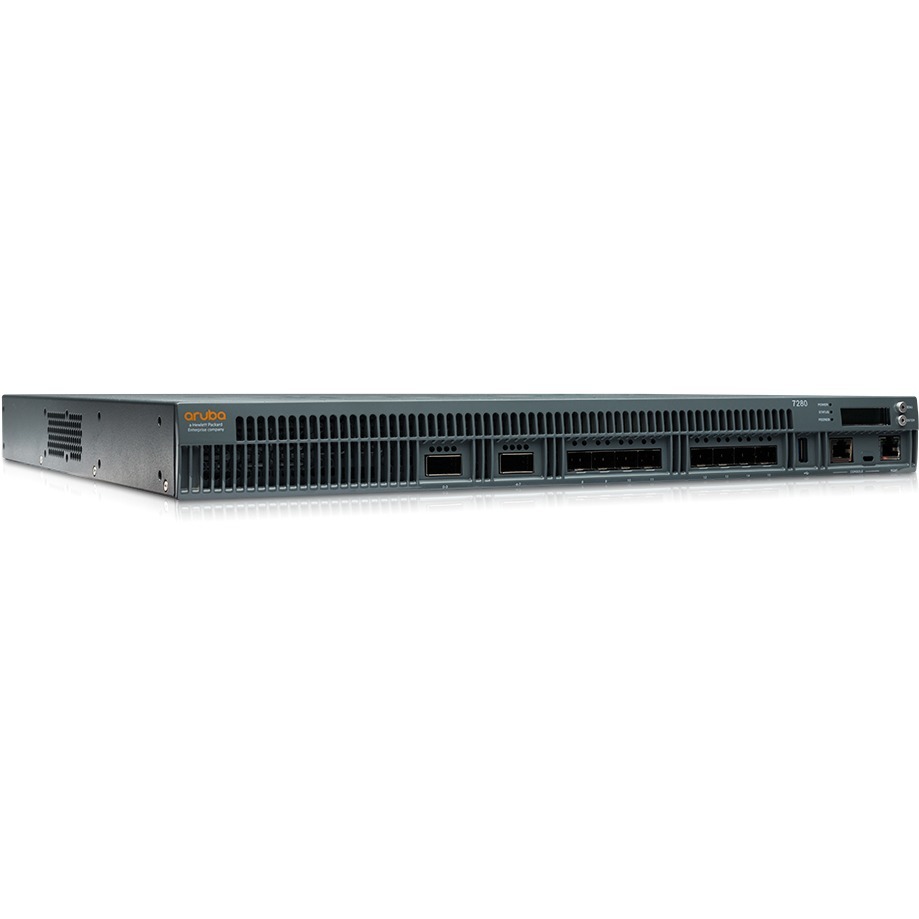

The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs up to eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,768 mobile devices and performs stateful firewall policy enforcement at 100 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
Key Features
Architected for High Availability
The 7200 series includes a number of features that make it ideal for deployment in customer locations that require maximum availability:
Hot-swappable redundant power supplies: The 7210/7220/7240/7240XM/7280 supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.

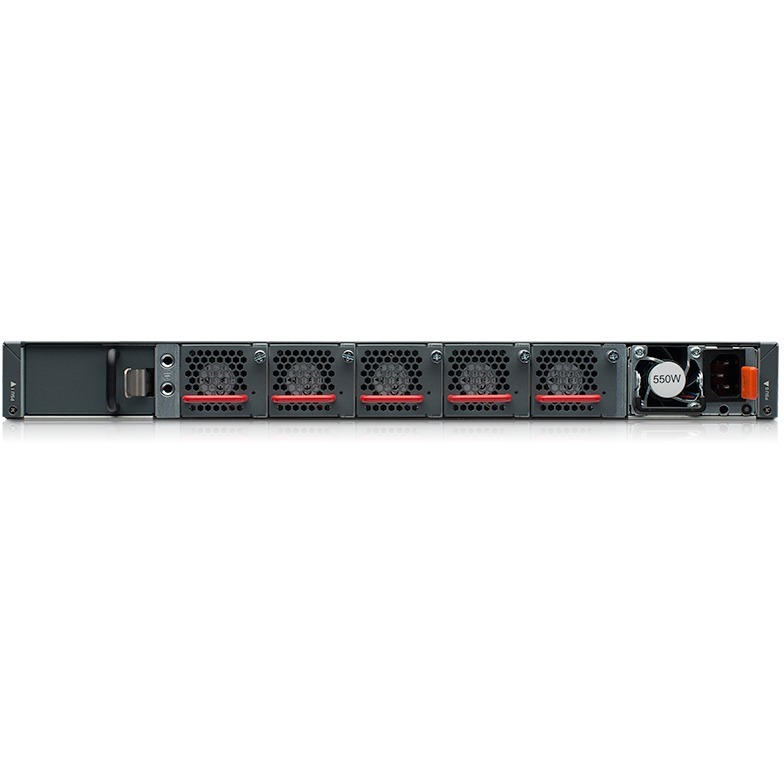

Hot-swappable fan tray with multiple fans: The 7210/7220/7240/7240XM/7280 includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
What are the key performance specifications of the HPE Aruba 7280 Controller?
The HPE Aruba 7280 Controller features a dual-core ARM Cortex A9 processor running at 1.016 GHz with 4 GB DDR3 memory and 16 GB eMMC storage. Depending on the specific model configuration, it delivers switching capacities ranging from 68 to 128 Gbps with throughput capacities between 45.1 and 95.2 Mpps, making it suitable for enterprise network deployments. We offer complete technical documentation and support to help you select the right configuration for your infrastructure needs.
What connectivity options does the Aruba 7280 provide?
The HPE Aruba 7280 series offers multiple connectivity configurations including 48-port Gigabit Ethernet options, 24-port and 12-port variants, plus SFP ports for uplink connectivity. Models support both standard Ethernet and PoE (Power over Ethernet) capabilities with Class 4 support, along with USB-C console ports and USB Type-A host ports for management and device connectivity. Contact us today to discuss which port configuration best matches your network topology.
What are the operating temperature and environmental requirements for the Aruba 7280?
The HPE Aruba 7280 Controller is designed to operate in environments ranging from 32°F to 113°F (0°C to 45°C) at elevations up to 5,000 feet, with derating requirements for higher altitudes. The switch features fixed fan cooling and compact rack-mountable dimensions (approximately 4.39 cm H × 44.2 cm W × 20-32 cm D depending on model), making it suitable for standard data center installations. Visit barcodesinc.com to verify environmental specifications for your specific deployment location.
How much PoE power can the Aruba 7280 deliver?
HPE Aruba 7280 models offer flexible PoE power options, with configurations delivering up to 370W or 740W of Class 4 PoE power depending on the specific model selected. This enables powering of IP phones, wireless access points, and other PoE-compliant networked devices directly from the switch without separate power injectors. We can help you determine the appropriate power budget for your deployment—contact us today for detailed specifications.
What is the MAC table capacity and routing capacity of the Aruba 7280?
The HPE Aruba 7280 supports an 8,192-entry MAC address table, 1,024 IPv4 host entries (ARP), 512 IPv6 host entries (ND), and 512 IPv4 and IPv6 unicast routes respectively. It also handles up to 16 switched virtual interfaces (dual stack), 512 IGMP groups, and 512 MLD groups, providing robust Layer 2 and Layer 3 scalability for enterprise networks. These specifications ensure reliable performance in medium to large network environments.
What warranty and support options are available with the Aruba 7280?
The HPE Aruba 7280 Controller includes a Limited Lifetime Warranty and access to HPE Aruba Networking support services. We provide comprehensive technical support, software updates, and detailed warranty information to ensure your networking infrastructure remains operational and current. Visit barcodesinc.com or contact us today to learn about support packages and service options tailored to your organization's needs.
The HPE Aruba JX910A Data Networking is also known as
HPE-JX910A
