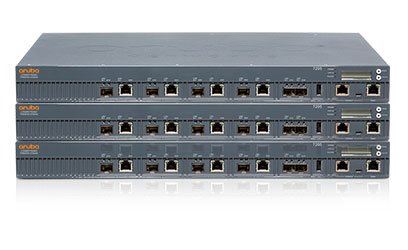

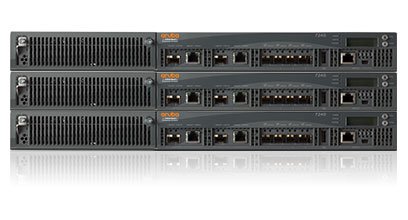

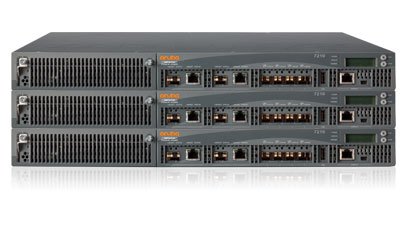

HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

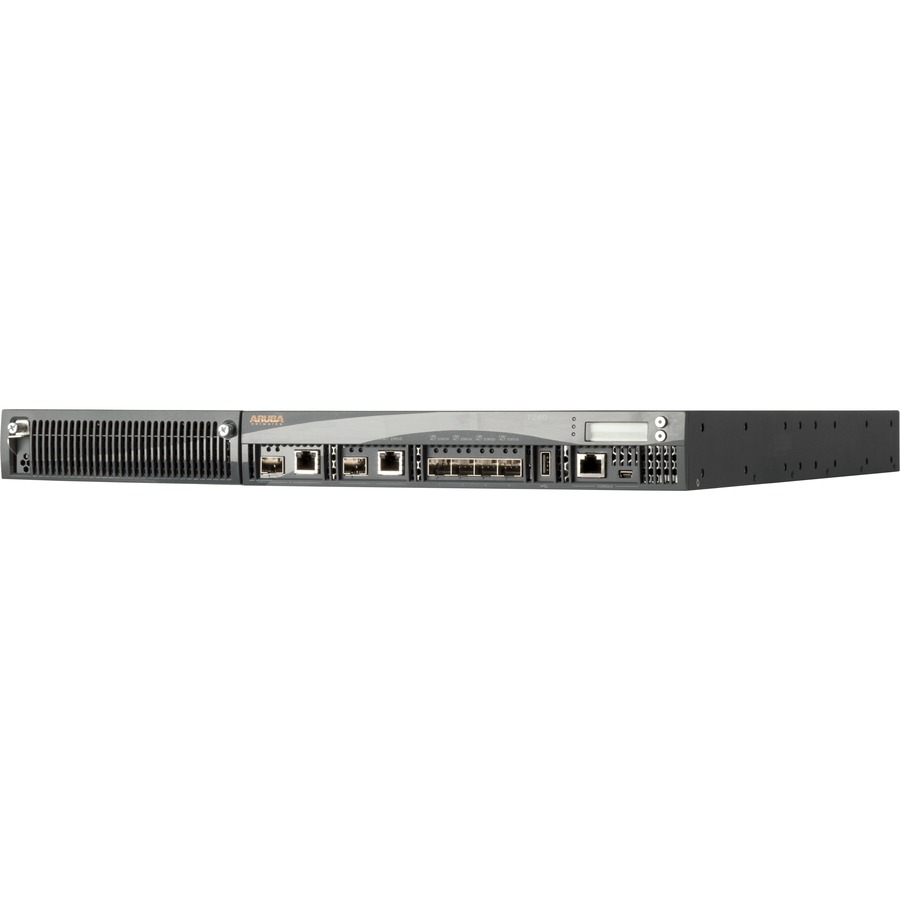

HPE Aruba JW838A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
What is the maximum number of mobile devices the HPE Aruba JW838A can support?
The Aruba 7200 series Mobility Controller JW838A supports up to 32,000 mobile devices, making it ideal for large enterprise deployments with extensive BYOD and 802.11ac device requirements. This capacity is enabled by its advanced eight-core central processor with four threads each, delivering the performance needed for high-density wireless environments.
What are the network connectivity options available on the JW838A?
The JW838A features 4x 10GBase-x ports (SFP/SFP+) and 2x dual media ports that support either 10/100/1000BASE-T or SFP connectivity. This flexible port configuration allows you to integrate the controller into various network topologies and upgrade paths within your infrastructure.
What firewall performance can I expect from the Aruba JW838A?
The JW838A performs stateful firewall policy enforcement at 40 Gbps, providing enterprise-grade security throughput for organizations managing complex security policies across thousands of mobile devices. This performance level ensures that security policies don't become a bottleneck in your network.
How does the AppRF technology on the JW838A improve network visibility?
AppRF is Aruba's unique technology that provides visibility into applications by user, including popular web-based applications like Facebook and Box. This granular application awareness enables IT teams to optimize bandwidth allocation, enforce policies, and troubleshoot performance issues with precision that traditional network monitoring cannot provide.
Is the JW838A an upgrade option from the Aruba 7240 controller?
Yes, the JW838A is designed as an upgrade path from the 7240, featuring extended memory with 16GB DRAM and enhanced processing capabilities. If you're currently running a 7240 and need to support more devices or higher throughput, contact us today to discuss your upgrade options.
What power specifications should I plan for when deploying the JW838A?
The JW838A includes one 350W AC power supply and operates on universal AC input voltage (100-240V) at 50-60 Hz, making it compatible with global power standards. We recommend consulting with our team at barcodesinc.com to ensure your data center power infrastructure meets the controller's requirements for your specific deployment scale.
The HPE Aruba JW838A Wireless Controllers is also known as
HPE-JW838A
Full specifications (PDF)
