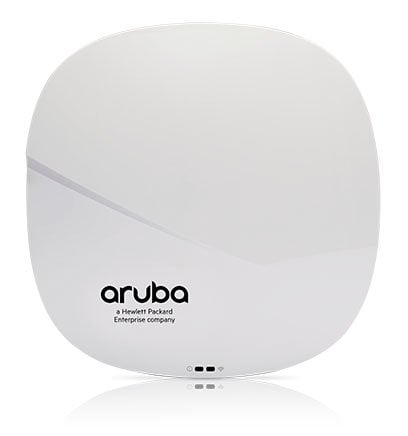

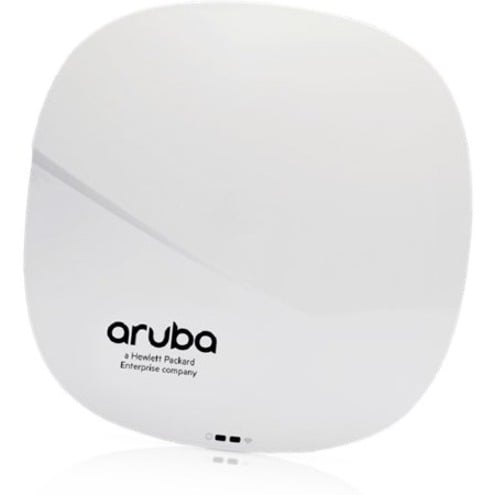

HPE Aruba 330 Series Wireless Access Points Model Overview
The Aruba 330 Series Access Points deliver exceptional gigabit data speeds and an unparalleled user experience, designed for the demands of modern digital workplaces. Equipped with HPE Smart Rate ports that support up to 5Gbps Ethernet, these access points effectively eliminate network bottlenecks. Featuring advanced ClientMatch technology, they ensure optimal performance by intelligently grouping compatible devices, maximizing network efficiency. Ideal for high-density environments like lecture halls and public venues, the 330 Series combines robust capabilities with innovative features, making it a crucial asset for any enterprise seeking reliable wireless connectivity.
Key Features:
Fast Data Rates: Achieves up to 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band.
Multi-User MIMO (MU-MIMO): Delivers simultaneous data transmission to multiple devices.
Integrated Bluetooth Beacon: Supports location services and proximity-based notifications.
Quality of Service: Prioritizes applications for optimal performance including voice and video.
Specifications:
Wireless Standards: 802.11ac Dual Radio (Wave 2) with 4x4 MIMO
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
What wireless standards does the HPE Aruba JW801A support?
The HPE Aruba JW801A supports 802.11n and 802.11ac wireless standards with Wave 2 technology. It features 4x4:4 MU-MIMO (multi-user MIMO) capabilities that enable simultaneous data transmission to multiple devices, improving network efficiency in high-density environments. The access point supports both 2.4 GHz and 5 GHz bands with integrated semi-directional antennas optimized for vertical orientation.
What is the maximum data throughput of the Aruba 330 Series access point?
The Aruba 330 Series delivers gigabit data speeds with an integrated HPE Smart Rate port that scales up to 5Gbps Ethernet over existing copper infrastructure. This multi-gigabit capability allows you to leverage your current wired network without bottlenecks, making it ideal for high-performance enterprise deployments. We offer this model to help eliminate bandwidth constraints in modern digital workplaces.
How does the JW801A handle power delivery and connectivity?
The JW801A features multiple connectivity options including one uplink 10/100/1000BASE-T Ethernet port, three local Gigabit Ethernet ports, and a USB 2.0 host interface for modems and accessories. The access point supports 802.3af/at PoE input for power delivery and includes one PoE-PSE output port capable of supplying up to 1A/5 watts to connected devices, plus a DC power interface option for flexible deployment scenarios.
What advanced RF management features are included in this access point?
The Aruba 330 Series includes Adaptive Radio Management (ARM) technology that automatically assigns optimal channel and power settings while providing airtime fairness and interference avoidance. The access point can be configured for spectrum analysis to identify RF interference sources and integrated wireless intrusion protection for threat detection and mitigation. These features ensure reliable, high-performance WLAN operation in enterprise environments.
Is the Aruba JW801A suitable for outdoor installations?
Yes, the Aruba 330 Series is designed for both indoor and outdoor deployments. The integrated semi-directional antennas with 4.5 dBi gain at 2.4 GHz and 5.0 dBi gain at 5 GHz are optimized for vertical orientation and provide excellent coverage in diverse environments. Contact us today to discuss outdoor mounting solutions and environmental specifications for your specific deployment needs.
What deployment modes does the JW801A support?
The HPE Aruba JW801A can operate as an Aruba Instant AP for standalone deployments or as a Mobility Controller-managed AP for centralized network management. It also supports Remote AP (RAP) mode for branch office deployments and can function as an air monitor for wireless intrusion detection and spectrum analysis. This flexibility allows you to scale from small installations to large enterprise networks. Visit barcodesinc.com to explore deployment options available from us.
The HPE Aruba JW801A Wireless Access Points is also known as
HPE-JW801A
Full specifications (PDF)
