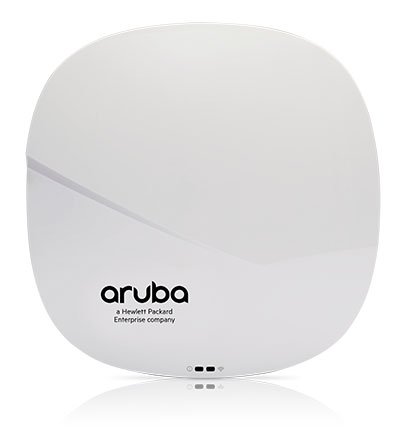

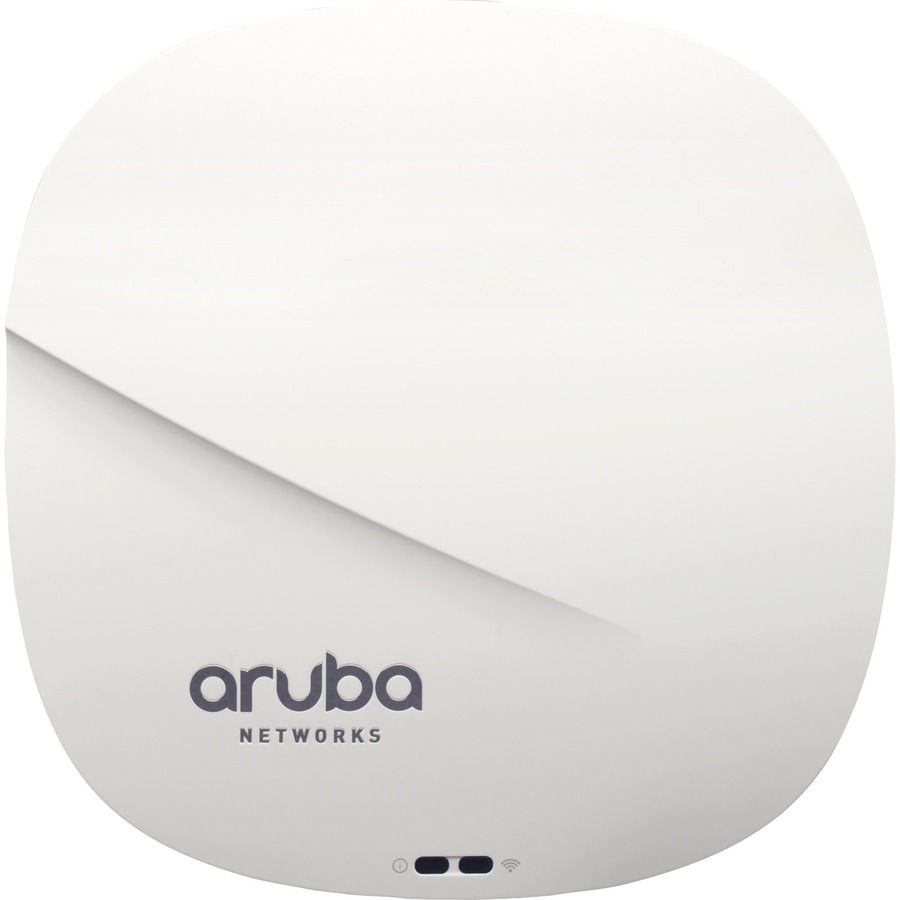

HPE Aruba JW799A Wireless Access Points

Part Number: JW799A
Model: 330 Series
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
5 GHz2.40 GHz
Wireless Transmission Speed
2.50 Gbit/s
MIMO Technology
Yes

Product Description:

  NBase-T Wireless Access Point, 802.11n/ac, 4x4:4 MU-MIMO, dual radio, antenna connectors

HPE Aruba 330 Series Wireless Access Points Model Overview

The Aruba 330 Series Access Points deliver exceptional gigabit data speeds and an unparalleled user experience, designed for the demands of modern digital workplaces. Equipped with HPE Smart Rate ports that support up to 5Gbps Ethernet, these access points effectively eliminate network bottlenecks. Featuring advanced ClientMatch technology, they ensure optimal performance by intelligently grouping compatible devices, maximizing network efficiency. Ideal for high-density environments like lecture halls and public venues, the 330 Series combines robust capabilities with innovative features, making it a crucial asset for any enterprise seeking reliable wireless connectivity.


Key Features:

  • Fast Data Rates: Achieves up to 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band.
  • Multi-User MIMO (MU-MIMO): Delivers simultaneous data transmission to multiple devices.
  • Integrated Bluetooth Beacon: Supports location services and proximity-based notifications.
  • Quality of Service: Prioritizes applications for optimal performance including voice and video.

Specifications:

  • Wireless Standards: 802.11ac Dual Radio (Wave 2) with 4x4 MIMO
  • Maximum Throughput: 2.5 Gbps (aggregate)
  • Antenna Type: Integrated Omni-Directional Antennas
  • Ports: 1 HPE Smart Rate port, 1 Ethernet port
  • Power Consumption: Max 25.3W (802.3at PoE)
  • Operating Temperature: 0° C to +50° C
  • Dimensions: 225mm x 224mm x 52mm
  • Weight: 1150g (excl. mounting accessories)
  • Warranty: Limited lifetime warranty
HPE Aruba JW799A Wireless Access Points Overview
The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.

Thanks to ClientMatch technology, ArubaOS enables the 330 series to automatically detect and classify 802.11ac Wave 2 capable mobile devices. This allows ClientMatch to automatically collect Wave 2 capable devices under a single Wave 2 radio so that performance benefits of multi-user
MIMO can be realized - without the adverse effects of slower 802.11ac and traditional 802.11n capable mobile devices. This means increased network capacity and a boost in network efficiency.

With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 800 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.5Gbps), the 330 Series Access Points deliver a best-in-class, next-generation 802.11ac Wi-Fi infrastructure that is ideal for lecture halls, auditoriums, public venues, and high-density office environments.

The high performance and high density 802.11ac 330 Series Access Points support 160 MHz channel bandwidth (VHT160), 4-stream multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS).

They provide simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.

The 330 Series Access Points have an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor wayfinding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 5 GHz
  • 2.40 GHz
Wireless Transmission Speed:
2.50 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
2
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
2"
Width:
8.9"
Depth:
8.8"
Weight (Approximate):
2.54 lb
Item Numbers
GTIN: 0190017169378
UPC: 190017169378
EAN: 0190017169378
UNSPSC: 43222631
