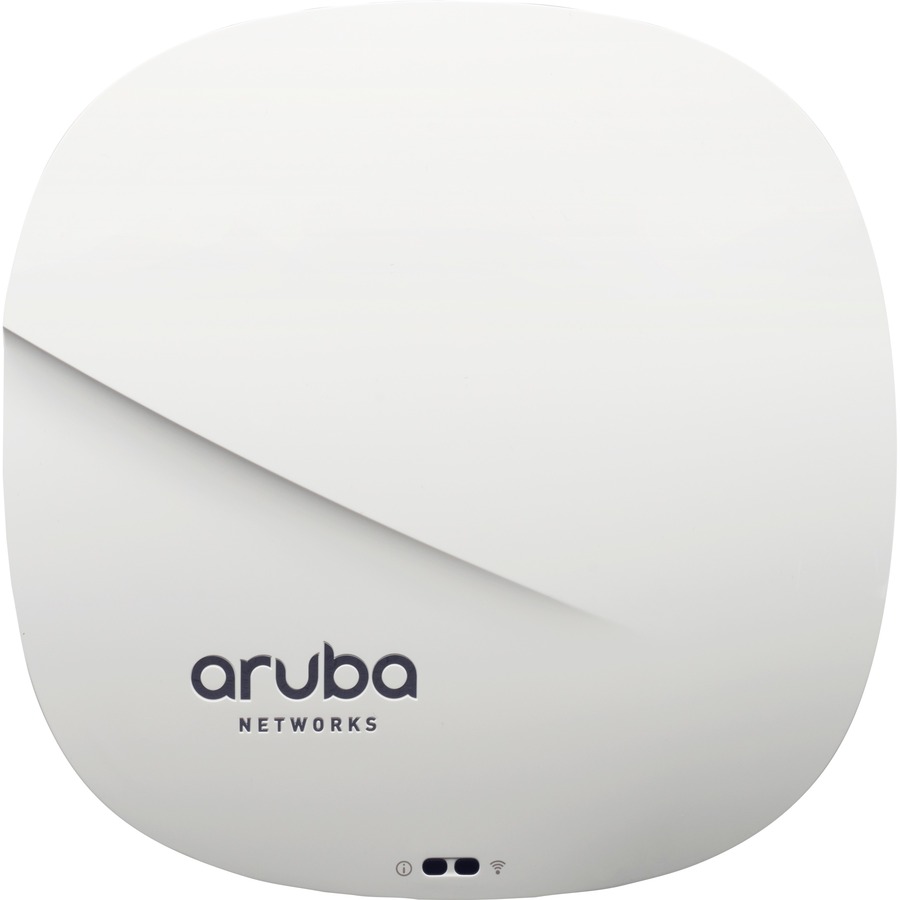

HPE Aruba 310 Series Wireless Access Points Model Overview
The Aruba 310 Series Access Points redefine wireless connectivity with high-performance 802.11ac Wave 2 technology, ideal for today’s mobile and IoT devices. Designed for dense office environments, these access points deliver exceptional user experiences with up to 1,733 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band. With features like MU-MIMO capability and sophisticated RF management, the Aruba 310 Series ensures efficient data throughput and seamless connectivity for high device density settings such as schools and retail branches. Integrated Bluetooth Low Energy (BLE) technology furthers its capabilities, enabling advanced location services and proximity notifications. Key features:
High-speed performance with up to 1,733 Mbps in the 5 GHz band
Multi-user MIMO (MU-MIMO) technology for simultaneous data transmission
ClientMatch technology for optimal device performance
Integrated Bluetooth Beacon for enhanced location services
Advanced RF management for reliable and efficient wireless networks
Specifications:
AP Model: Aruba AP-314 and AP-315
Data Rates:
5 GHz: 1,733 Mbps (4x4 MIMO)
2.4 GHz: 400 Mbps (2x2 MIMO)
Operating Modes:
Controller-managed
Aruba Instant mode
Remote Access Point (RAP)
Air Monitor (AM)
Power Consumption: Max 14.4W (802.3at PoE)
Environmental: Operating temp 0° C to +50° C
Dimensions: 182mm x 180mm x 48mm
HPE Aruba JW797A Wireless Access Points Overview
The Aruba 310 Series access points deliver high performance and superb user experience for mobile devices, Internet of Things (IoT) devices, and applications in dense office environments. Featuring the 4x4:4SS MU-MIMO capability, advanced Aruba ClientMatch radio management, and Aruba Beacon technologies, the 310 Series enables an all-wireless digital work environment in a cost-effective manner.
With a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band (for an aggregate peak data rate of 2.1 Gbps), the 310 Series Access Points can quickly add required capacities to your existing or new wireless networks. The mid-range 310 Series, with its single gigabit Ethernet uplink, is ideal for high device density environments, such as schools, retail branches, hotels and enterprise offices, where the organization is cost sensitive.
The high performance and high density 802.11ac 310 Series supports 160 MHz channel bandwidth (VHT160), multi-user MIMO (MU-MIMO) and 4 spatial streams (4SS). It provides simultaneous data transmission to multiple devices, maximizing data throughput and improving network efficiency.
The 310 Series includes the enhanced ClientMatch technology that extends the client steering technology with MU-MIMO client awareness. It automatically identifies MU-MIMO capable mobile devices and steers those devices to the closest MU-MIMO capable Aruba access point. By grouping MU-MIMO capable mobile devices together, the network starts taking advantage of the simultaneous transmission to these devices, increasing its overall capacity. These dynamic roaming policies that are based on device types, help users achieve the best WLAN performance in a mixed device environment during the technology transition period.
The 310 Series also has an integrated Bluetooth Aruba Beacon that simplifies the remote management of a network of large-scale battery-powered Aruba beacons while also providing advanced location and indoor way finding, and proximity-based push notification capabilities. It enables businesses to leverage mobility context to develop applications that will deliver an enhanced user experience and increase the value of the wireless network for organizations.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
Aruba Outdoor Antenna Cable Extension - 10 Long low-loss LMR 400 antenna extension cable for use with Outdoor Access Points, interfaces AP N-Type Female interface to N-Type Male on antenna.
What wireless standards does the HPE Aruba JW797A support?
The HPE Aruba JW797A 310 Series access point supports 802.11n and 802.11ac wireless standards, delivering dual-band performance across both 2.4 GHz and 5 GHz frequencies. This ensures compatibility with a wide range of mobile devices and IoT endpoints in modern enterprise environments. We offer this model as part of our comprehensive wireless networking solutions.
What is the maximum data rate for the Aruba 310 Series access point?
The JW797A delivers a maximum concurrent data rate of 1,733 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band, for an aggregate peak data rate of 2.1 Gbps. This performance level makes it suitable for high-density deployments where multiple devices require simultaneous connectivity. Contact us today to discuss bandwidth requirements for your specific environment.
Is the Aruba 310 Series suitable for high-density office environments?
Yes, the JW797A is specifically designed for dense office environments and other high device-density locations such as schools, retail branches, and hotels. Its 4x4:4 MU-MIMO capability and advanced Aruba ClientMatch radio management enable efficient handling of numerous concurrent connections without performance degradation. Visit barcodesinc.com to explore deployment options for your facility.
What connectivity options does the HPE Aruba JW797A provide?
The Aruba 310 Series features a single gigabit Ethernet uplink for network connectivity, making it ideal for cost-sensitive deployments where high-speed backhaul is not required. The integrated antennas eliminate the need for external antenna installations, reducing deployment complexity and costs. We can help you determine the right uplink configuration for your network architecture.
What is Aruba ClientMatch and how does it benefit wireless networks?
Aruba ClientMatch is an advanced radio management technology that optimizes device performance by intelligently steering wireless clients to the best available radio band and access point. Combined with Aruba Beacon technologies on the JW797A, it creates a seamless user experience across dense deployments with multiple access points. This technology is particularly valuable in environments where device density and application performance are critical.
What IoT and mobile device support does the Aruba 310 Series offer?
The JW797A is engineered to support both traditional mobile devices and IoT endpoints simultaneously, making it versatile for modern digital workplaces that integrate connected sensors, wearables, and smart devices. Its dual-band architecture and MU-MIMO capability ensure reliable connectivity for diverse device types with varying bandwidth requirements. Contact us today to discuss IoT integration planning for your organization.
The HPE Aruba JW797A Wireless Access Points is also known as
HPE-JW797A
Full specifications (PDF)
