The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement FirewallTM, Aruba Adaptive Radio ManagementTM, and Aruba RFProtectTM spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWaveTM network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.

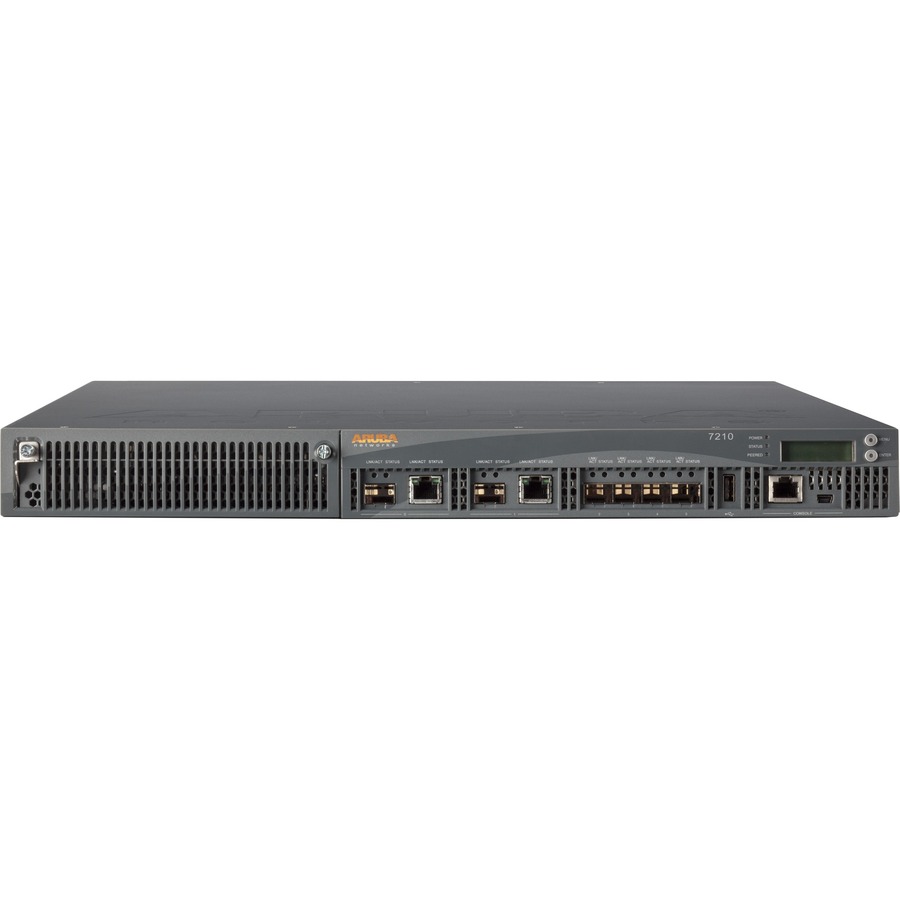

What is the maximum number of access points the HPE Aruba 7210 can support?
The HPE Aruba 7210 Mobility Controller supports up to 512 licensed access points, making it ideal for mid-to-large enterprise and educational deployments. This capacity allows organizations to scale their wireless infrastructure efficiently across multiple buildings and campuses. We offer the 7210 K-12 EDU Bundle with 256 licenses and support, which is specifically configured for educational institutions.
How many concurrent devices can the Aruba 7210 handle?
The Aruba 7210 can manage up to 16,384 concurrent devices simultaneously, providing robust performance for high-density wireless environments. This capacity makes it suitable for large schools, universities, and enterprise networks with thousands of users and IoT devices. Contact us today to discuss your specific device density requirements.
What network connectivity options does the HPE Aruba 7210 provide?
The Aruba 7210 features four 10GBASE-X (SFP+) ports for high-speed backbone connectivity, along with a USB 2.0 port and console management options (RS-232 RJ-45 or mini-USB). These interfaces enable flexible deployment in enterprise networks requiring high-throughput connections and remote management capabilities. Visit barcodesinc.com to explore our complete Aruba networking solutions.
What is the wired throughput capacity of the Aruba 7210?
The Aruba 7210 delivers 20 Gbps of wired throughput for large packets, providing excellent performance for network-intensive applications and high-bandwidth user activities. This throughput capacity ensures minimal latency and congestion in demanding educational and enterprise environments. Available from us with full technical support and documentation.
What are the environmental operating conditions for the Aruba 7210?
The Aruba 7210 operates reliably in temperature ranges from 0°C to 40°C with humidity levels between 5% to 95% non-condensing, making it suitable for standard data center and network closet deployments. The controller measures 44.5 cm (W) x 44.5 cm (D) x 4.4 cm (H) and weighs 7.45 kg with one AC power supply installed. Contact us today for installation guidance specific to your facility.
Is the Aruba 7210 suitable for K-12 educational institutions?
Yes, the HPE Aruba 7210 K-12 EDU Bundle is specifically designed for educational deployments with 256 licenses and comprehensive support included. This configuration addresses the unique networking needs of schools, including high-density student device connectivity, guest network management, and application visibility through Aruba's AppRF technology. We offer this bundle with full technical support tailored to educational IT teams.
The HPE Aruba JW782A Data Networking is also known as
HPE-JW782A
