The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement FirewallTM, Aruba Adaptive Radio ManagementTM, and Aruba RFProtectTM spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWaveTM network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
What networking ports does the HPE Aruba 7205 K-12 EDU Bundle include?

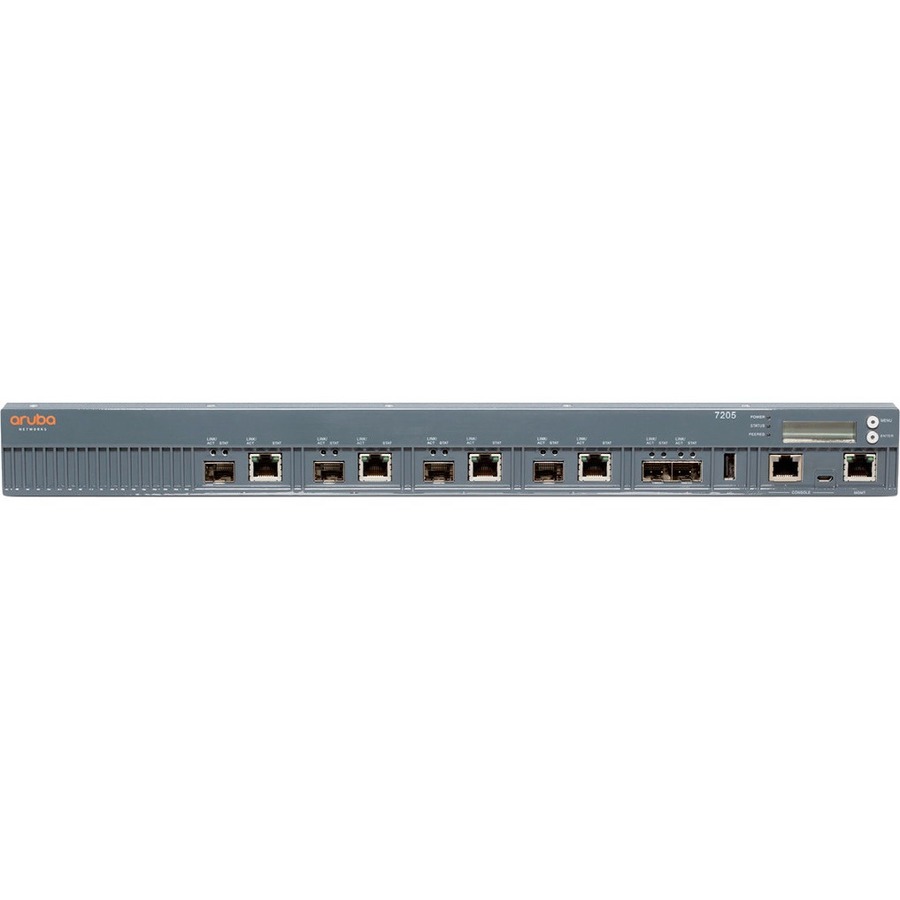

The HPE Aruba 7205 includes 4x 10GBase-x (SFP/SFP+) ports and 2x dual media ports that support either 10/100/1000BASE-T or SFP connectivity. This configuration provides flexible high-speed networking options suitable for K-12 educational environments. We offer this bundle with 64 licenses and support included to streamline deployment across school districts.
Is the HPE Aruba 7205 suitable for use in the United States?
The HPE Aruba 7205 K-12 EDU Bundle is a Rest of World product with restricted regulatory domain settings and must NOT be used for deployments in the United States, Israel, or Japan. If you require a model certified for U.S. deployment, contact us today to discuss alternative Aruba controller options available from our inventory.
What AppRF technology features does the Aruba 7200 series provide?
The Aruba 7200 series Mobility Controllers are powered by Aruba's unique AppRF technology, which enables IT teams to see applications by user and monitor top web-based applications like Facebook and Box. This application-aware visibility helps optimize network performance and security in educational settings. Contact us today to learn how AppRF can enhance your K-12 network management.
What power specifications should I plan for with the Aruba 7205?
The HPE Aruba 7205 includes one 350W AC power supply and operates on 100-240V universal input at 50-60 Hz. The controller supports Power-over-Ethernet with a total capacity of 78 watts and 19.5 watts per port, allowing flexible deployment options in school buildings. Visit barcodesinc.com for detailed power planning documentation.
What operating temperature range is supported by Aruba 7200 series controllers?
Aruba 7200 series controllers operate reliably in temperature ranges from 0°C to 40°C (32°F to 104°F) with non-condensing humidity between 5% to 95%. This environmental specification makes the controllers suitable for standard K-12 school infrastructure, server rooms, and network closets. We offer these controllers with full technical support to ensure optimal performance in your educational environment.
Does the Aruba 7205 support external storage and USB device connectivity?
Yes, the Aruba 7200 series supports maximum storage size up to 1TB with compatibility for Ext2/Ext3, FAT16, and FAT32 filesystems, along with tested USB modem and printer support. The controller can integrate with compatible USB devices including modems like Novatel U727 and Kyocera KPC680, as well as various HP and Lexmark printers. Contact us today for a complete list of validated USB devices and integration support for your K-12 deployment.
The HPE Aruba JW776A Data Networking is also known as
HPE-JW776A
