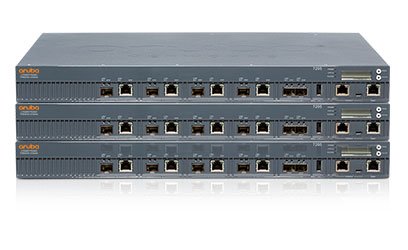

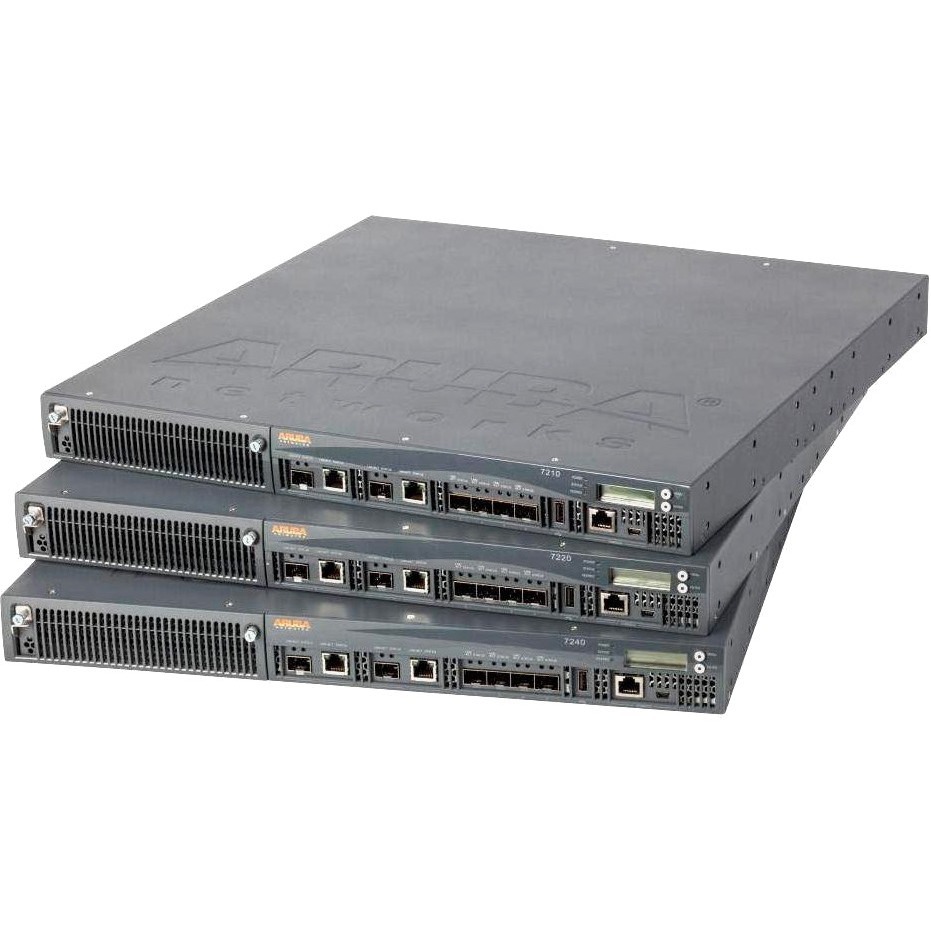

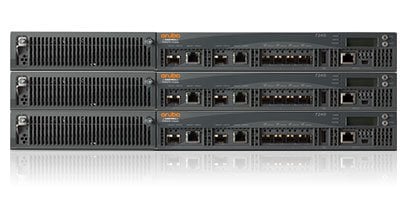

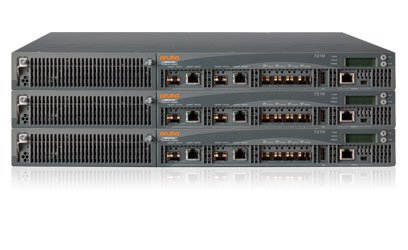

HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
HPE Aruba JW754A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
Architected for high AvAilAbility
Redundant power supplies: The 7200 series supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
Solid state drives for maximum reliability and uptime.
Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.
How many wireless access points and devices can the HPE Aruba 7200 series controller support?
The Aruba 7200 series supports up to 2,048 licensed access points and 32,768 concurrent mobile devices, making it ideal for large enterprise deployments. The JW754A model specifically is optimized for organizations with extensive BYOD and 802.11ac device requirements. We offer the full range of Aruba 7200 controllers to match your network scale.
What are the network connectivity specifications for the HPE Aruba JW754A?
The JW754A features four 10GBase-X (SFP+) ports for high-speed uplink connectivity, supporting up to 40 Gbps wired throughput for large packets. This configuration ensures robust backbone performance for organizations managing thousands of wireless devices. Contact us today to discuss your network architecture requirements.
What is AppRF technology and how does it help with network visibility?
AppRF is Aruba's unique application recognition and flow technology that runs on 7200 series controllers, enabling IT teams to see applications by user and identify top web-based applications like Facebook and Box. This provides unprecedented visibility into network traffic patterns and user behavior. We can help you leverage AppRF to optimize your wireless network performance.
What are the environmental operating conditions for the Aruba 7200 controller?
The Aruba 7200 series operates reliably in temperatures from 0°C to 40°C with humidity levels between 5% to 95% non-condensing. The compact form factor (4.4 cm H x 44.5 cm W x 44.5 cm D) and 350W AC power supply make it suitable for standard data center environments. Available from us with full technical support and warranty coverage.
How does the Aruba 7200 handle stateful firewall policy enforcement?
The 7200 series performs stateful firewall policy enforcement at 40 Gbps with support for up to 2,015,291 concurrent active firewall sessions, powered by its multi-core processor with up to 32 virtual CPUs. This architecture ensures consistent security policy application across thousands of connected devices without performance degradation. Visit barcodesinc.com to learn more about security features.
Is the HPE Aruba JW754A compliant with government and enterprise security standards?
Yes, the JW754A is FIPS and TAA compliant, meeting stringent federal and enterprise security requirements for sensitive deployments. The Restricted Regulatory Domain (US) designation ensures compliance with local spectrum regulations. Contact us today for compliance documentation and deployment guidance for your organization.
The HPE Aruba JW754A Wireless Controllers is also known as
HPE-JW754A
Full specifications (PDF)
