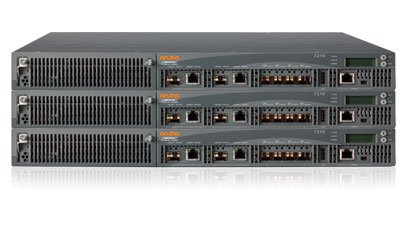

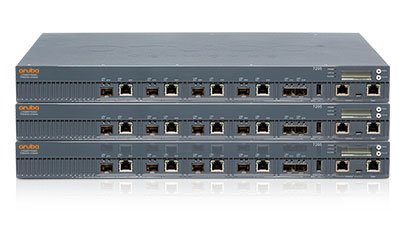

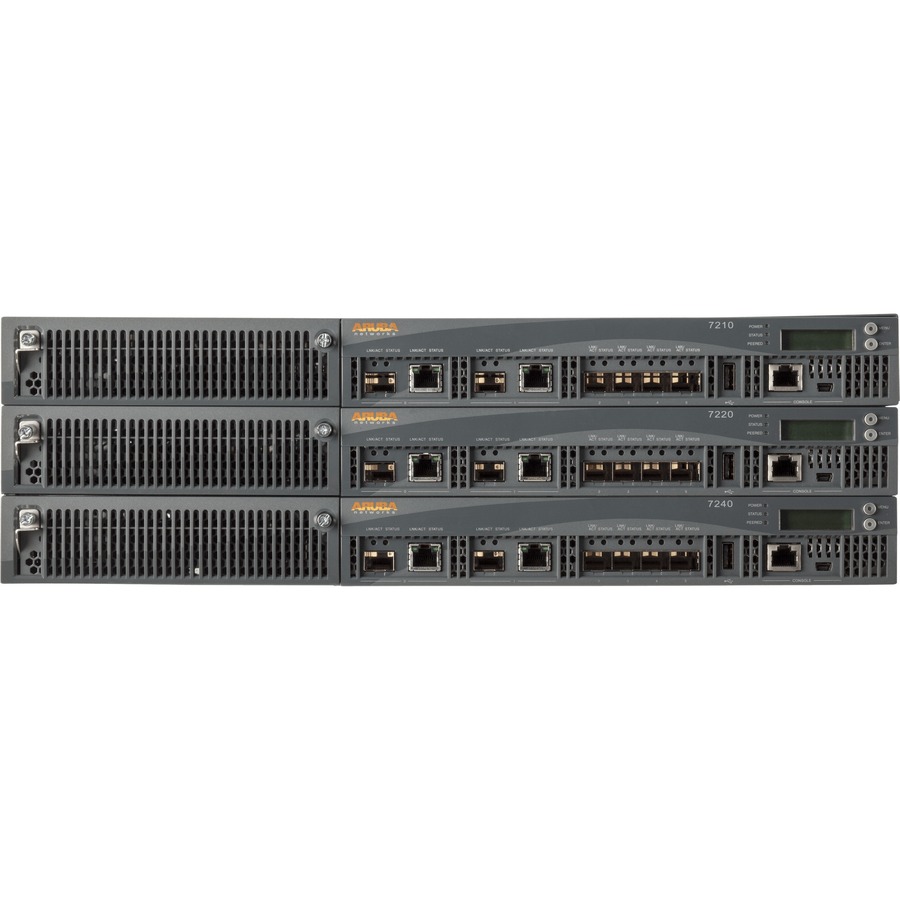

HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
HPE Aruba JW752A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall, Aruba Adaptive Radio Management, and Aruba RFProtect spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
Architected for high AvAilAbility
Redundant power supplies: The 7200 series supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
Solid state drives for maximum reliability and uptime.
Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.
What are the key networking ports on the HPE Aruba JW752A controller?
The JW752A features 4x 10GBase-x ports (SFP/SFP+) and 2x dual media ports that support either 10/100/1000BASE-T or SFP connectivity. This flexible port configuration allows you to scale your wireless infrastructure while maintaining high-speed uplink capacity to your core network. We offer this controller as part of our comprehensive wireless networking solutions.
How many mobile devices can the Aruba 7200 series controller support?
The Aruba 7200 series Mobility Controller, including the JW752A, supports up to 32,000 mobile devices with its advanced multi-core processor architecture featuring up to eight cores with four threads each. This capacity makes it ideal for large enterprise deployments and organizations with significant BYOD initiatives. Contact us today to discuss sizing for your environment.
What firewall performance can I expect from the JW752A?
The JW752A delivers stateful firewall policy enforcement at 40 Gbps, providing robust security for your wireless network without compromising throughput. This performance level ensures that security policies can be applied to high-volume traffic without creating bottlenecks. Available from us with full technical support for deployment and configuration.
Does the Aruba 7200 controller support 802.11ac devices?
Yes, the JW752A is specifically optimized for 802.11ac device support and modern mobile application delivery. The controller's next-generation architecture is designed to handle the demands of contemporary wireless standards while maintaining performance across thousands of concurrent connections. Visit barcodesinc.com to learn more about our wireless controller options.
What visibility features does the JW752A provide for application monitoring?
The JW752A includes Aruba's AppRF technology, which provides unique visibility into applications by user, including top web-based applications like Facebook and Box. This granular visibility enables IT teams to monitor, manage, and enforce policies on specific applications across your wireless network. We offer full technical consultation to help you leverage these capabilities.
What power supply is included with the JW752A?
The JW752A includes one 350W AC power supply, which is designed to support the controller's processing demands and networking components. The power supply is sized appropriately for the controller's maximum performance specifications. Contact us today for information about redundant power supply options or deployment requirements.
The HPE Aruba JW752A Wireless Controllers is also known as
HPE-JW752A
Full specifications (PDF)
