HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
HPE Aruba JW746A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall™, Aruba Adaptive Radio Management™, and Aruba RFProtect™ spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave™ network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
Architected for high AvAilAbility

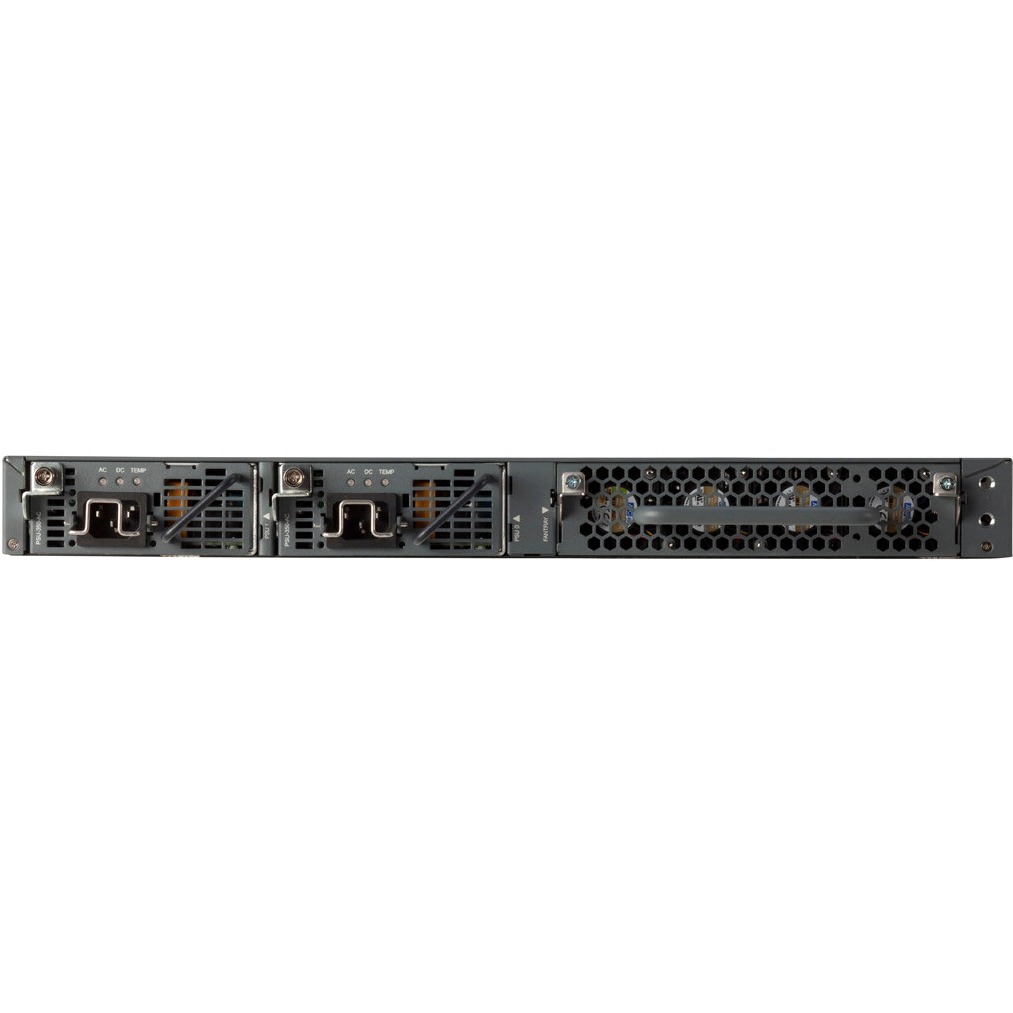

Redundant power supplies: The 7200 series supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
Solid state drives for maximum reliability and uptime.
Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.
What is the maximum number of wireless devices the HPE Aruba JW746A can support?
The HPE Aruba 7200 series Mobility Controller, which this model belongs to, supports up to 32,000 concurrent mobile devices. This capacity makes it ideal for large enterprise deployments with significant BYOD and 802.11ac device populations. We offer this controller as part of our comprehensive wireless networking solutions.
What network interfaces does the HPE Aruba JW746A provide?
This model features four 10GBase-X (SFP+) ports for high-speed uplink connectivity, delivering 40 Gbps wired throughput capacity. It also includes one 350W AC power supply and console management interfaces (RS-232 RJ-45 or mini-USB). These specifications ensure robust connectivity for enterprise wireless deployments available from us.
How does AppRF technology on the Aruba 7200 series improve network visibility?
AppRF technology provides granular application visibility by user, allowing IT teams to identify and monitor specific applications including web-based services like Facebook and Box. This visibility enables better network policy enforcement and bandwidth management for BYOD environments. Contact us today to learn how AppRF can optimize your wireless network management.
What are the physical dimensions and weight of the HPE Aruba JW746A?
The controller measures 4.4 cm (H) x 44.5 cm (W) x 44.5 cm (D) and weighs 7.45 kg (16.43 lbs) with one AC power supply installed. Its compact form factor makes it suitable for standard rack mounting in data center and network closet environments. Visit barcodesinc.com for detailed specifications and deployment guidance.
What stateful firewall performance does the Aruba 7200 series deliver?
The 7200 series performs stateful firewall policy enforcement at 40 Gbps with support for up to 2,015,291 concurrent active firewall sessions. This high-performance security processing ensures BYOD and mobile device traffic can be inspected and controlled without bottlenecks. We offer this advanced security capability as part of our wireless controller portfolio.
Is the HPE Aruba JW746A suitable for FIPS and TAA compliance requirements?
Yes, this model is FIPS and TAA compliant, making it appropriate for government and regulated enterprise deployments. However, note that this unit has a Restricted Regulatory Domain designation for the US and should not be used in United States, Israel, or Japan deployments. Contact us today to ensure you receive the correct regional configuration for your compliance requirements.
The HPE Aruba JW746A Wireless Controllers is also known as
HPE-JW746A
Full specifications (PDF)
