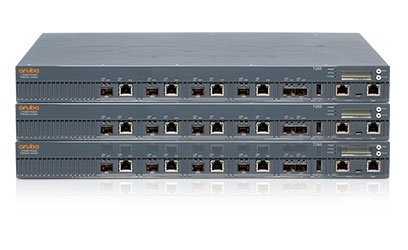

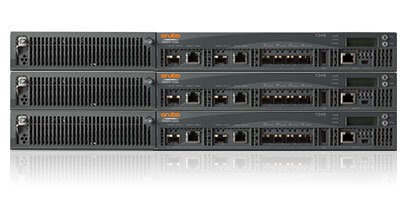

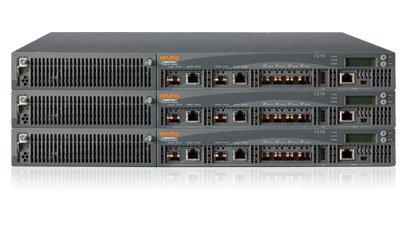

HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.

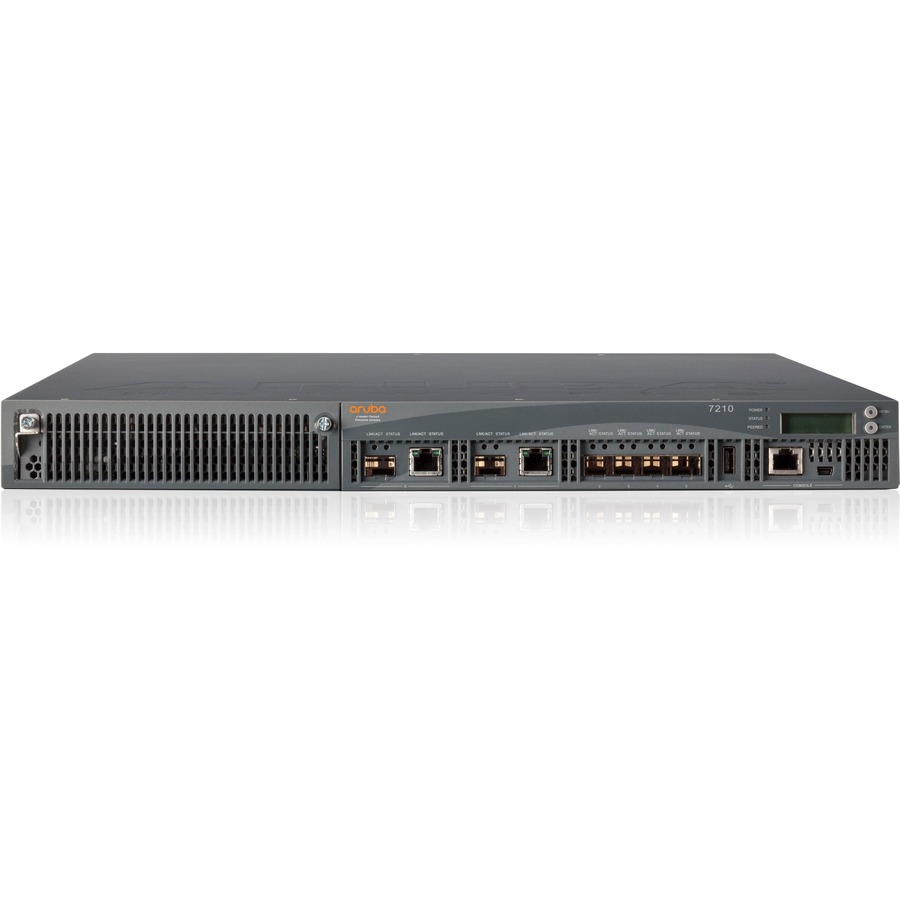

HPE Aruba JW744A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement Firewall™, Aruba Adaptive Radio Management™, and Aruba RFProtect™ spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWave™ network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
Architected for high AvAilAbility
Redundant power supplies: The 7200 series supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
Hot-swappable fan tray with multiple fans: The 7200 series includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
Solid state drives for maximum reliability and uptime.
Two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.
What are the key connectivity options available on the Zebra ZD611d printer?
The Zebra ZD611d offers multiple connectivity options including USB 2.0, USB Host, Ethernet, and Bluetooth Low Energy (BTLE5) for flexible integration into your warehouse or logistics operations. The printer also supports a mobile setup app for Android and iOS via BLE connection, making initial configuration quick and straightforward. For best performance during active printing, we recommend using wired connections like USB or Ethernet, while BLE is optimized for printer setup and light data transfer events.
What is the maximum number of wireless devices the HPE Aruba JW744A can support?
The HPE Aruba JW744A (7240 series) supports up to 32,768 concurrent mobile devices, making it ideal for large enterprise deployments with extensive BYOD and 802.11ac requirements. This capacity is backed by a multi-core processor with up to eight cores and four threads each, delivering the performance needed for demanding wireless environments.
What print resolution and speed does the ZD611d deliver?
The Zebra ZD611d provides 203 dpi (8 dots per mm) print resolution with a maximum print speed of 6 inches per second, delivering sharp, professional-quality barcode labels for industrial applications. The printer supports a maximum print width of 2.2 inches at 203 dpi resolution and can handle media up to 5 inches in outer diameter. This combination of resolution and speed makes it ideal for high-volume labeling in warehouse and logistics environments.
What network ports does the Aruba 7200 series controller include?
The HPE Aruba JW744A features four 10GBASE-X (SFP+) ports and two dual-media ports that support either 10/100/1000BASE-T or SFP connectivity. This flexible port configuration allows you to integrate the controller into various network topologies and provides high-speed uplink options for data center and campus deployments.
Is the ZD611d suitable for healthcare or regulated environments?
Yes, Zebra offers healthcare-specific variants of the ZD611d that feature a healthcare-preferred white color scheme and IEC 60601-1 certified power supply for compliance with medical device standards. These models include disinfectant-ready, easy-to-clean plastics designed for sanitization in clinical settings. Contact us today to discuss healthcare-compliant printer options that meet your regulatory requirements.
How much throughput can the Aruba 7240 controller handle?
The Aruba 7240 delivers 40 Gbps of wired throughput for large packets and supports stateful firewall policy enforcement at the same 40 Gbps rate. This performance level ensures that your wireless infrastructure can handle high-volume traffic and maintain security policies without bottlenecks.
What security features does the ZD611d include?
The ZD611d comes equipped with Zebra's Print DNA software suite, which includes PrintSecure—a security feature designed to protect your printer from cyberattacks and prevent costly downtime. The printer also features Link-OS operating system with enterprise-grade management capabilities. We offer this printer with comprehensive security features to ensure your barcode printing infrastructure remains protected against modern threats.
What is AppRF technology and how does it benefit our network?
AppRF is Aruba's proprietary application recognition and control technology that provides granular visibility into applications by user, including popular web-based applications like Facebook and Box. This capability enables IT teams to optimize bandwidth allocation, enforce security policies, and improve the overall user experience across your wireless network.
What programming languages and barcode formats does the ZD611d support?
The Zebra ZD611d supports ZPL II and EPL2 programming languages, along with XML and ZBI firmware options for flexible integration with your existing systems. The printer can produce linear and 2-D barcode symbologies, text, and graphics with 16 resident expandable ZPL II bitmap fonts and two resident scalable ZPL fonts. Unicode compliance enables multi-language printing, making it versatile for global logistics operations.
What are the environmental operating specifications for the Aruba 7240 controller?
The HPE Aruba JW744A is designed to operate in temperatures ranging from 0°C to 40°C with humidity levels between 5% to 95% non-condensing. These specifications ensure reliable operation in standard data center and network closet environments without requiring specialized cooling or environmental controls.
What are the memory and storage specifications of the ZD611d?
The Zebra ZD611d is equipped with 512 MB of Flash memory and 256 MB DDR3 SDRAM, providing sufficient capacity for storing fonts, graphics, and label templates for most warehouse and logistics applications. The printer's real-time clock (RTC) ensures accurate timestamping on printed labels. Visit barcodesinc.com to learn more about memory expansion options if your labeling requirements are particularly demanding.
How many access points and remote access points can this controller manage?
The Aruba 7240 series controller can manage up to 2,048 licensed access points and 2,048 remote access points (RAPs), providing comprehensive coverage for large campus and distributed network deployments. Contact us today to discuss licensing options and deployment configurations that match your specific infrastructure needs.
The HPE Aruba JW744A Wireless Controllers is also known as
HPE-JW744A
Full specifications (PDF)
