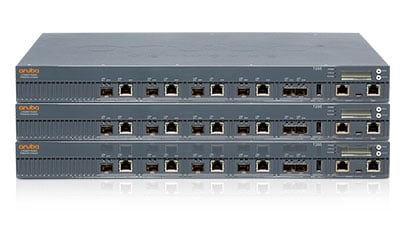

HPE Aruba 7200 Series Wireless Controllers Model Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi. With a new central processor that employs up to eight cores with four threads each, its like having a total of 32 virtual CPUs. As a result, the 7200 series supports up to 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps ?? plenty of capacity and speed for BYOD and 802.11ac devices.New levels of visibility are provided by Arubas unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
HPE Aruba JW736A Wireless Controllers Overview
The Aruba 7200 series Mobility Controller is the next-generation networking platform, optimized for mobile application delivery to ensure the best mobility experience over Wi-Fi.
With a new central processor that employs eight cores with four threads each, it's like having a total of 32 virtual CPUs. As a result, the 7200 series supports 32,000 mobile devices and performs stateful firewall policy enforcement at 40 Gbps - plenty of capacity and speed for BYOD and 802.11ac devices.
New levels of visibility are provided by Aruba's unique AppRF technology, which runs on 7200 series Mobility Controllers. With AppRF, IT can see applications by user, including top web-based applications like Facebook and Box.
The 7200 series also manages authentication, encryption, VPN connections, IPv4 and IPv6 Layer 3 services, the Aruba Policy Enforcement FirewallTM, Aruba Adaptive Radio ManagementTM, and Aruba RFProtectTM spectrum analysis and wireless intrusion protection.
Clustering and centralized management enable the deployment of large networks with hundreds of Mobility Controllers with minimal staff. A master Mobility Controller can manage local Mobility Controllers, while Aruba AirWaveTM network management provides enterprise-wide clarity and control through real-time monitoring, historical reporting and troubleshooting.
ARCHITECTED FOR HIGH AVAILABILITY
The 7200 series includes a number of features that make it ideal for deployment in customer locations that requiremaximum availability:
Redundant power supplies: The 7210/7220/7240 supports dual, field-replaceable redundant power supplies to maintain uninterrupted network operations.
Hot-swappable fan tray with multiple fans: The 7210/7220/7240 includes a field-replaceable fan tray with multiple fans, providing sufficient cooling and rapid time to repair.
Solid state drives for maximum reliability and uptime.
The 7210/7220/7240 support two dual-media ports: 1000BASE-X or 10/100/1000BASE-T connections for high availability.
What is the maximum number of wireless devices the HPE Aruba JW736A can support?
The Aruba 7200 series Mobility Controller supports up to 32,000 mobile devices with its advanced eight-core central processor. This capacity makes it ideal for large enterprise deployments with significant BYOD and 802.11ac device populations. We offer the JW736A configured specifically for U.S. regulatory requirements to handle your organization's wireless infrastructure needs.
What network interfaces does the HPE Aruba JW736A provide?
The JW736A features two 10GBASE-X (SFP+) ports for high-speed connectivity, along with four dual-media ports that support either 1000BASE-X or 10/100/1000BASE-T connections. It also includes one USB 2.0 port and an RS-232 console interface for management. This flexible connectivity ensures compatibility with your existing network infrastructure available from us.
What firewall performance can I expect from the HPE Aruba JW736A?
The Aruba 7200 series delivers stateful firewall policy enforcement at 40 Gbps with support for up to 2,015,291 concurrent active firewall sessions. This high-performance security capability ensures your organization can enforce comprehensive security policies without compromising network throughput. Contact us today to discuss how this firewall capacity meets your security requirements.
What is AppRF technology and how does it benefit my wireless network?
AppRF is Aruba's unique application recognition and flow technology that provides visibility into applications by user, including popular web-based applications like Facebook and Box. This capability runs natively on the 7200 series Mobility Controllers and allows IT teams to monitor, control, and optimize application performance across your wireless network. We offer AppRF-enabled controllers to give you unprecedented insight into your network traffic.
What are the operating environmental specifications for the HPE Aruba JW736A?
The controller operates reliably in temperatures from 0°C to 40°C with humidity levels between 5% and 95% non-condensing. The JW736A weighs 4.95 kg (10.19 lbs) and measures 33.4 cm (H) x 44.2 cm (W) x 44.2 cm (D), making it suitable for standard rack deployment in most data center environments. Visit barcodesinc.com for detailed specifications and deployment guidance.
Is the HPE Aruba JW736A suitable for my organization's network infrastructure?
The JW736A is optimized for enterprises requiring high-capacity wireless mobility with advanced application visibility and security enforcement. It supports up to 8,192 concurrent GRE tunnels, 4,096 concurrent tunneled ports, and 4,096 IPsec sessions, making it ideal for complex network architectures. Contact us today to evaluate whether this controller meets your specific deployment requirements and budget.
The HPE Aruba JW736A Wireless Controllers is also known as
HPE-JW736A
Full specifications (PDF)
