HPE Aruba JW178A Wireless Access Points

Part Number: JW178A
Model: 270 Series
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
5 GHz2.40 GHz
Total Number of Antennas
3
Number of Internal Antennas
3

Product Description:

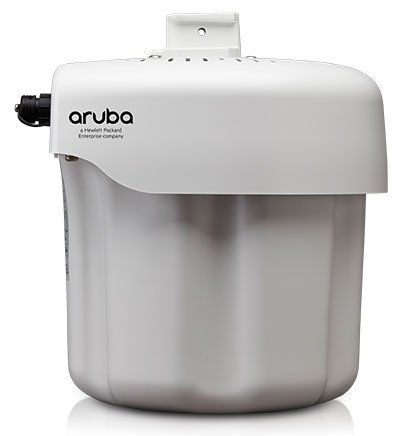

  Outdoor Wireless Access Point, 802.11ac, 3x3:3, dual radio, integrated omni antennas
Explore all HPE Aruba 270 Series Wireless Access Points
Add to Quote
HPE Aruba JW178A Wireless Access Points
HPE Aruba JW178A Wireless Access Points
HPE Aruba JW178A Wireless Access Points HPE Aruba JW178A Wireless Access Points
Full specifications (PDF)

HPE Aruba 270 Series Wireless Access Points Model Overview

The Aruba 270 Series Outdoor Access Points elevate your Wi-Fi experience with advanced 802.11ac capabilities, providing exceptional gigabit performance even in harsh weather conditions. These access points are designed to withstand extreme temperatures and moisture, ensuring uninterrupted service for your devices. With innovative ClientMatch technology, the 270 series optimizes client connectivity, ensuring seamless performance and efficiency. Whether used in expansive outdoor spaces or rugged environments, the Aruba 270 series is built for reliability and superior performance.


Key Features
  • Durable Design: IP66 and IP67 rated for superior protection against the elements.
  • Fast Wi-Fi Performance: Up to 1.3 Gbps on 5-GHz and 600 Mbps on 2.4-GHz bands.
  • ClientMatch Technology: Automatically connects devices to the best access point.
  • Advanced RF Management: Minimizes interference for reliable Wi-Fi connectivity.
  • Limited Lifetime Warranty: Industry-first warranty for outdoor APs.

Specifications
  • Operating Temperature: -40° C to +65° C (-40° F to +150° F)
  • Operating Humidity: 5% to 95% non-condensing
  • Wi-Fi Standards Supported: 802.11a/b/g/n/ac
  • Max Data Rate: 1.3 Gbps (5 GHz), 600 Mbps (2.4 GHz)
  • Power Consumption: 23 watts
  • Dimensions: 23 cm (W) x 24 cm (D) x 19 cm (H)
  • Weight: 2.7 kg (6 lbs)
HPE Aruba JW178A Wireless Access Points Overview
Innovative and aesthetically-designed 270 series outdoor wireless access points deliver gigabit Wi-Fiperformance to 802.11ac mobile devices under any weather conditions. The 270 series is also the only outdoor AP that enables 802.11n clients to operate three-times faster at greater distances.

Purpose-built to survive in the harshest outdoor environments, 270 series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrialstrength surge protection.

With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, 270 series outdoor APs supports concurrent dual-radio operation at speeds that greatly exceed Fast Ethernet.

WI-FI CLIENT OPTIMIZATION

To eliminate sticky client behavior and ensure consistently high performance, every Aruba AP includes ClientMatch technology, which gathers session performance metrics that steer mobile devices to the best AP and radio on the WLAN in real time.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
  • 5 GHz
  • 2.40 GHz
Total Number of Antennas:
3
Number of Internal Antennas:
3
Wireless Transmission Speed:
1.30 Gbit/s
MIMO Technology:
Yes
Beamforming Technology:
Yes
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Physical Characteristics
Form Factor:
  • Pole-mountable
  • Wall Mountable
Height:
10.6"
Width:
9.1"
Depth:
9.4"
Weight (Approximate):
5.29 lb
Miscellaneous
Certifications & Standards:
  • cTUVus
    • Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    Lifetime
    Item Numbers
    GTIN: 0070090141303, 0190017020792, 0818214660213, 0854006346521
    UPC: 070090141303, 190017020792, 818214660213, 854006346521
    EAN: 0070090141303, 0190017020792, 0818214660213, 0854006346521
    UNSPSC: 43222640
