The HPE Aruba Networking CX 6300 Switch Series delivers robust performance and versatility suited for modern enterprise environments. Featuring stackable Layer 3 switches with high-capacity throughput, it supports IoT, mobile, and cloud applications seamlessly. Designed to enhance operational efficiency with integrated security and advanced automation tools, the CX 6300 series stands as a backbone for organizations looking to improve their network infrastructure. With features like high power PoE support and flexible port configurations, these switches empower businesses to optimize connectivity and performance across their networks.
Key Features
Stackable Layer 3 switches with up to 1760 Gbps switching capacity
Comprehensive security features with trustworthy management and segmentation
High-density Power over Ethernet (PoE) support up to 90W per port
Supports 1G/2.5G/5G/10G multi-gigabit Ethernet
Built-in high-speed uplinks available on select models
Specifications
Performance:
Switching Capacity: 1760 Gbps
Forwarding Throughput: 1310 Mpps
Stacking Bandwidth: 400 Gbps
Power over Ethernet:
PoE Standards: IEEE 802.3af, 802.3at, 802.3bt (up to 90W)
Dimensions:
Height: 4.4 cm
Width: 44.2 cm
Depth: 38.5 cm
Temperature:
Operating: 0° to 45°C
Non-Operating: -40° to 70°C
Weight: 5.26 kg (11.60 lb)

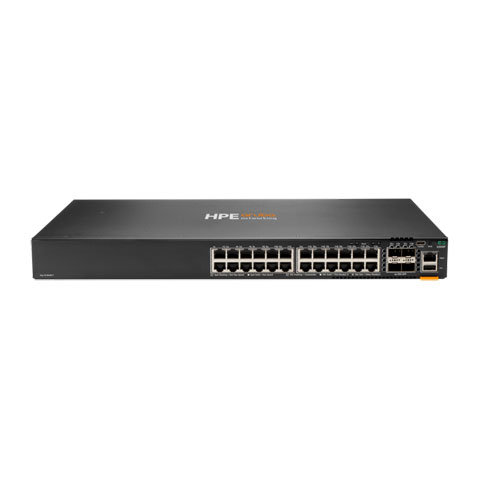

HPE Aruba JL659A Ethernet Switch Overview
The Aruba CX 6300 Switch Series is a modern, flexible and intelligent family of stackable switches ideal for enterprise network access, aggregation and core. Created for game- changing operational efficiency with built-in security and resiliency, the 6300 switches provide the foundation for high-performance networks supporting IoT, mobile and cloud applications.
Built from the ground up with a combination of cutting-edge hardware, software and analytics and automation tools, the stackable 6300 switches are part of the Aruba CX switching portfolio, designed for today's enterprise campus, branch and data center networks. By combining a modern, fully programmable OS with the Aruba Network Analytics Engine, the 6300 switches provide industry leading monitoring and troubleshooting capabilities for the access layer.
A powerful Aruba Gen7 ASIC architecture delivers performance and robust feature support with flexible programmability for tomorrow's applications. The Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE. HPE Smart Rate multi-gigabit Ethernet paves the way for high speed access points and IoT devices by delivering fast connectivity and high power PoE using existing cabling. Modular models offer redundancy and PoE customization. Modular power supplies and field replaceable fans are also supported.
Aruba Dynamic Segmentation extends Aruba's foundational wireless role-based policy capability to Aruba wired switches. What this means is that the same security, user experience and simplified IT management can be enjoyed throughout the network. Regardless of how users and IoT devices connect, consistent policies are enforced across wired and wireless networks, keeping traffic secure and separate.
The HPE Aruba JL659A Ethernet Switch is also known as
HPE-JL659A
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
