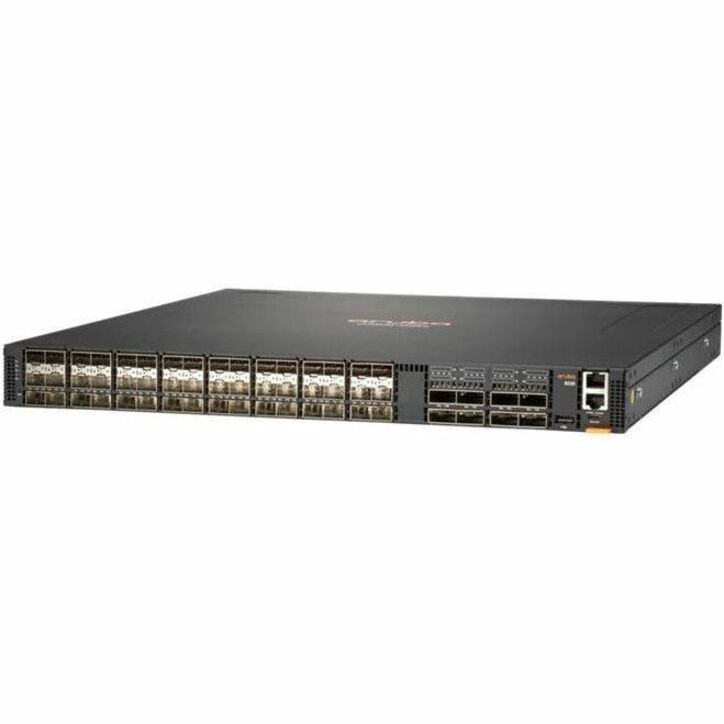

HPE Aruba JL624A#B2B Ethernet Switch

Part Number: JL624A#B2B
Model: Parts
$59,336.42
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Modular
Yes
Port/Expansion Slot Details
48 x 25 Gigabit Ethernet Expansion Slot8 x 100 Gigabit Ethernet Expansion Slot
Media Type Supported
Optical Fiber
Ethernet Technology
25 Gigabit Ethernet100 Gigabit Ethernet

Product Description:

  Aruba 8325-48Y8C FB 6 F 2 PS Bdl JmpCbl-NA/JP/TW

HPE Aruba Parts Accessory Model Overview

Products and parts from Aruba.
HPE Aruba JL624A#B2B Ethernet Switch Overview

Aruba 8325 Switch Series

The Aruba CX 8325 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud and IoT era. These switches serve the needs of the next generation core and aggregation layer, as well as emerging data center requirements at the Top of Rack (ToR) and End of Row (EoR). They provide over 6.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.

The CX 8325 series includes industry-leading line rate ports 1/10/25GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/QSFP28) with connectivity in a compact 1U form factor. These switches offer a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or 10GbE/40GbE to 100GbE ports.

Interfaces/Ports
Modular:
Yes
Port/Expansion Slot Details:
  • 48 x 25 Gigabit Ethernet Expansion Slot
  • 8 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
  • 25 Gigabit Ethernet
  • 100 Gigabit Ethernet
Network Technology:
  • 25GBase-X
  • 100GBase-X
I/O Expansions
Total Number of Expansion Slots:
56
Expansion Slot Type:
  • QSFP28
  • SFP28
Network & Communication
Layer Supported:
3
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3ba
  • IEEE 802.1Q
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.3ad
  • IEEE 802.1ab
  • IEEE 802.1ak
  • IEEE 802.1t
  • IEEE 802.1AX
  • IEEE 802.1p
  • IEEE 802.3ae
  • IEEE 802.3by
  • IEEE 802.3z
Management & Protocols
Manageable:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
  • Power Supply
  • AC
Redundant Power Supply Supported:
Yes
Number of Power Supplies Supported:
2
Power Consumption:
550 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Cabinet Mount
  • Surface Mount
Height:
1.7"
Width:
17.2"
Depth:
21.1"
Weight (Approximate):
22.05 lb
Miscellaneous
Package Contents:
  • 8325-48Y8C Ethernet Switch
  • 2 x FB Power Supplies (JL632A) With No Additional Open PS Slots
  • 6 x FB Fan Tray Bundles (JL628A) With No Additional Open FT Slots
Application/Usage:
  • Data Center
  • Business
  • Enterprise
  • Network
  • Industrial
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0190017327952
UPC: 190017327952
EAN: 0190017327952
UNSPSC: 43222612
The HPE Aruba JL624A#B2B Ethernet Switch is also known as HPE-JL624A#B2B
