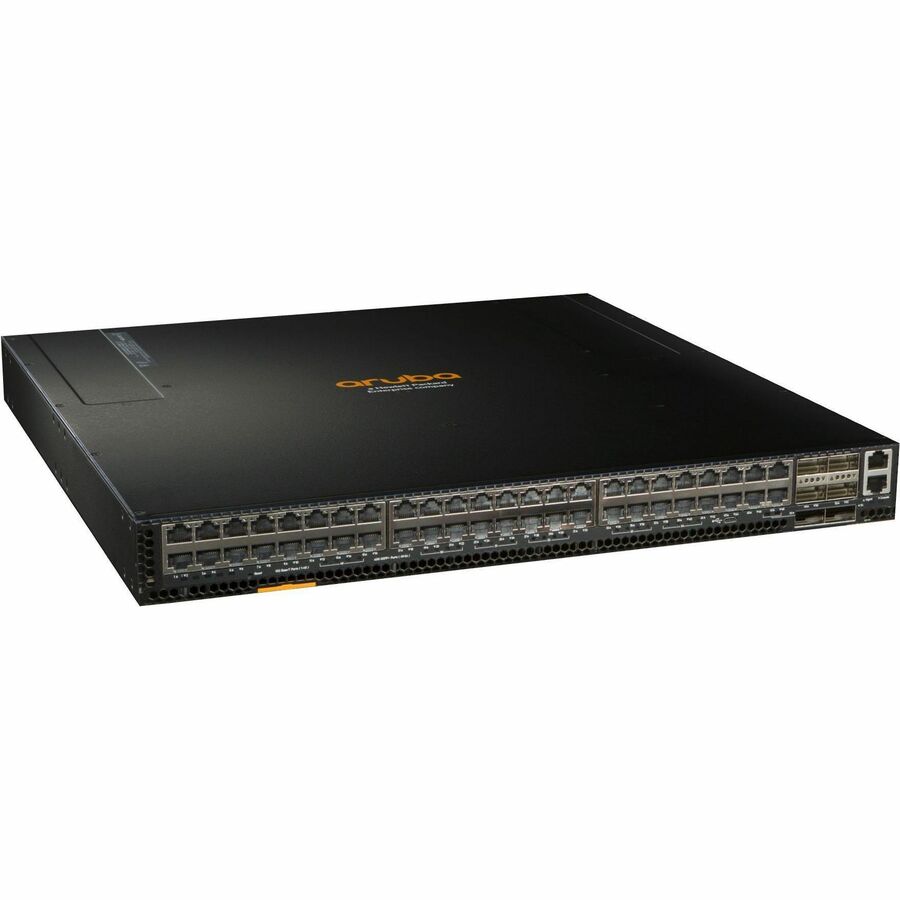

HPE Aruba JL581A#B2B Ethernet Switch

Part Number: JL581A#B2B
Model: Parts
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
48
Modular
Yes
Network (RJ-45)
Yes
Port/Expansion Slot Details
48 x 10 Gigabit Ethernet Network6 x 40 Gigabit Ethernet Expansion Slot

Product Description:

  Aruba 8320 48 T/6 40 X472 5 2 Bdl JmpCbl-NA/JP/TW

HPE Aruba Parts Accessory Model Overview

Products and parts from Aruba.
HPE Aruba JL581A#B2B Ethernet Switch Overview

Aruba 8320 Switch Series

The past several decades in networking have been defined by static, closed networking solutions designed for the client-server era. The Aruba CX 8320 campus core and aggregation switch is a game-changing solution offering a flexible and innovative approach to dealing with the demands of the mobile, cloud and IoT era. The Aruba CX 8320 also serves as a top of rack (ToR) switch for data centers needing 10GbE connectivity to servers and 40GbE to the spine.

The CX 8320 provides industry-leading line rate 1/10GbE (SFP/SFP+ and 10GBASE-T) and 40GbE connectivity in a compact 1U form factor. Together with the modular Aruba CX 8400 chassis and the Aruba CX 8325 series,, the CX 8320 rounds out Aruba's switching portfolio with an enterprise core and aggregation solution that ensures higher performance and higher uptime.

Interfaces/Ports
Total Number of Network Ports:
48
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 48 x 10 Gigabit Ethernet Network
  • 6 x 40 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • 10 Gigabit Ethernet
  • 40 Gigabit Ethernet
Network Technology:
  • 10GBase-T
  • 40GBase-X
I/O Expansions
Total Number of Expansion Slots:
6
Expansion Slot Type:
QSFP+
Network & Communication
Layer Supported:
3
Networking Standards:
  • IEEE 802.3ad
  • IEEE 802.1ab
  • IEEE 802.1ak
  • IEEE 802.1t
  • IEEE 802.1AX
  • IEEE 802.1p
  • IEEE 802.1Q
  • IEEE 802.1s
  • IEEE 802.1w
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.3ae
  • IEEE 802.3ba
Management & Protocols
Manageable:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Number of Power Supplies Supported:
2
Power Consumption:
348 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Cabinet Mount
  • Surface Mount
Height:
1.7"
Width:
18.6"
Depth:
17.4"
Weight (Approximate):
20.94 lb
Miscellaneous
Package Contents:
  • 8320 Ethernet Switch
  • 2 x Power Supplies With No Open PS Slots
  • 5 X Fan Tray Bundles With No Open FT Slots
  • 1 x 2-Post Rack Kit
  • Hardware
Application/Usage:
  • Network
  • Data Center
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0190017276922
UPC: 190017276922
EAN: 0190017276922
UNSPSC: 43222612
The HPE Aruba JL581A#B2B Ethernet Switch is also known as HPE-JL581A#B2B
