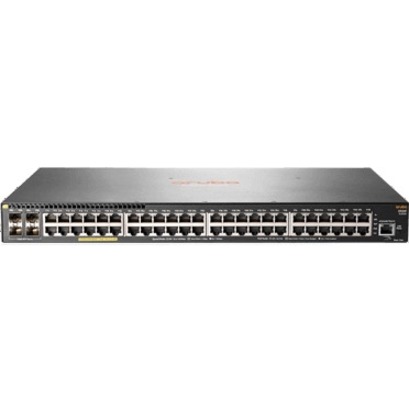

HPE Aruba JL559A#ABA Ethernet Switch

Part Number: JL559A#ABA
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$4,060.32

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
48
Uplink Port
Yes
Modular
Yes
Stack Port
Yes

Product Description:

  Aruba 2930F 48GPoE+4SFP+740WT Swch U.S. - English localization
Explore all HPE Aruba Parts Accessories
Add to Quote
HPE Aruba JL559A#ABA Ethernet Switch
HPE Aruba JL559A#ABA Ethernet Switch
HPE Aruba JL559A#ABA Ethernet Switch HPE Aruba JL559A#ABA Ethernet Switch

HPE Aruba Parts Accessory Model Overview

Products and parts from Aruba.
HPE Aruba JL559A#ABA Ethernet Switch Overview
The Aruba 2930F TAA-compliant Switch Series is designed for customers creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave. With support from Aruba Central, you can quickly set up remote branch sites with little or no IT support. A powerful Aruba ProVision ASIC delivers performance and flexibility to meet the needs of today and tomorrow's network programmability and automation requirements. Stacking with Virtual Switching Framework (VSF) provides simplicity and scalability. The 2930F supports built-in 1GbE or 10GbE uplinks, PoE+, Access OSPF routing, Tunnel Node, robust QoS, RIP routing, and IPv6 with no software licensing required.

The Aruba 2930F TAA-compliant Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust Layer 3 feature set includes a limited lifetime warranty.

FEATURES AND BENEFITS

Unified Wired and Wireless ?
  • ClearPass Policy Manager supports unified wired and wireless policies using Aruba ClearPass Policy Manager ?
  • Switch auto-configuration Automatically configures switch for different settings such as VLAN, CoS, PoE max. power, and PoE priority when an Aruba access point is detected ?
  • User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switchbased local user role or download from ClearPass ?Tunnel Node provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role
  • Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally ?
  • HTTP redirect function supports HPE Intelligent Management Center (IMC) bring your own device (BYOD) solution ?
  • Static IP visibility allows ClearPass to do accounting for clients with static IP address
Software-defined networks ?
  • Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting.
Quality of Service (QoS) ?
  • Traffic prioritization (IEEE 802.1p) allows real-time traffic classification into eight priority levels mapped to eight queues ?
  • Layer 4 prioritization enables prioritization based on TCP/UDP port numbers ?
  • Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ ?
  • Rate limiting sets per-port ingress enforced maximums and per-port, per-queue minimums ?
  • Large buffers provide graceful congestion management ?
  • Unknown Unicast Rate Limiting throttles unicast packets with unknown destination addresses and limits flooding on the VLAN
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 48 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
No
Power Consumption:
980 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
1.7"
Width:
17.4"
Depth:
12.8"
Weight (Approximate):
10.56 lb
Miscellaneous
TAA Compliant:
Yes
Item Numbers
GTIN: 0190017219899
UPC: 190017219899
EAN: 0190017219899
UNSPSC: 43222612
