Aruba JL430A#B2B Data Networking

Aruba - Aruba 3810M 24SFP+250W Swch JmpCbl-NA/JP/TW
  • Advanced Layer 3 switch series with backplane stacking, Dynamic Segmentation, low latency and resiliency
  • Advanced security and network management via Aruba ClearPass Policy Manager, Aruba AirWave and Aruba Central
  • Modular line rate 10GbE and 40GbE ports for wireless aggregation
  • HPE Smart Rate for high-speed multi-gigabit bandwidth (IEEE 802.3bz) and PoE+ power
  • Software defined ready with REST APIs and OpenFlow support
Read More
$20,132.37
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aruba Parts Accessory Model Overview
Products and parts from Aruba.
Aruba JL430A#B2B Data Networking Overview

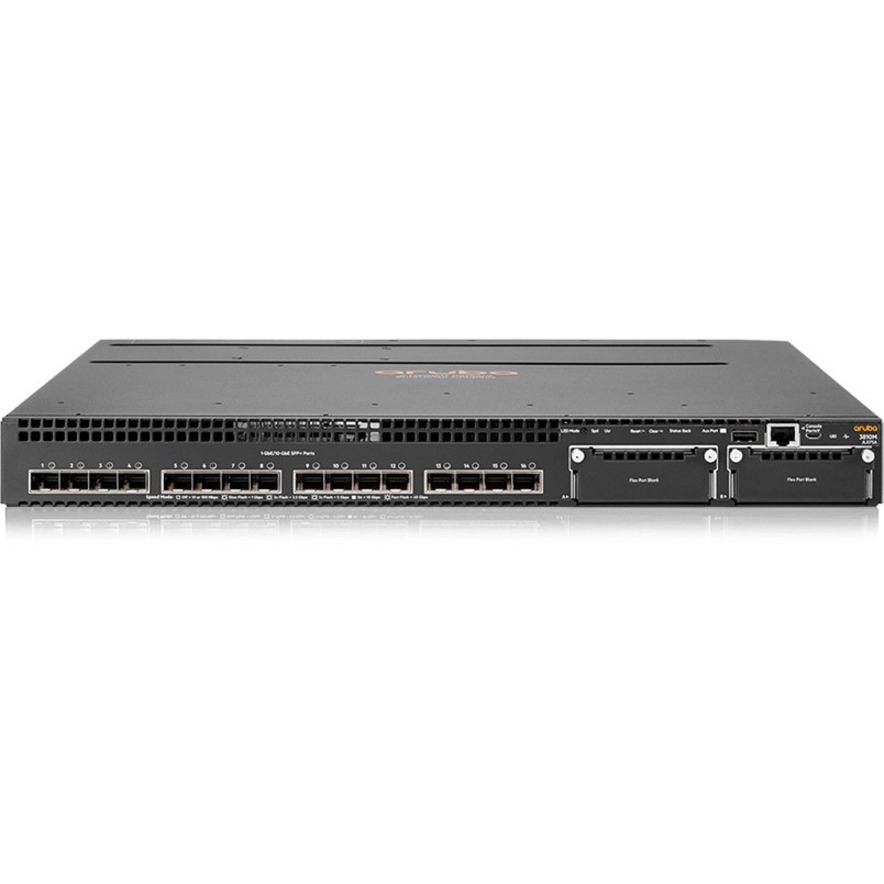

The Aruba 3810 Switch Series provides performance and resiliency for enterprises, SMBs, and branch office networks. With HPE Smart Rate multi-gigabit ports for high speed access points and IoT devices, this advanced Layer 3 network switch delivers a better application experience with low latency, virtualization with resilient stacking technology, and line rate 40GbE for plenty of back haul capacity.

A powerful Aruba ProVision ASIC delivers performance, robust feature support, and value with flexible programmability for the latest applications. The 3810 delivers resiliency and scalability via innovative backplane stacking technology and redundant, hot-swappable power supplies all in a convenient 1U form factor. It supports an advanced Layer 2 and 3 feature set with OSPF, IPv6, IPv4 BGP, Dynamic Segmentation, robust QoS, and policy-based routing are included with no software licensing.

Easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support. The switches offer a limited lifetime warranty.

ENHANCED CAPABILITIES

Software-defined networks

  • Supports multiple programmatic interfaces, including REST APIs and Openflow 1.0 and 1.3, to enable automation of network operations, monitoring, and troubleshooting

Unified wired and wireless support

  • Aruba ClearPass Policy Manager provides profiling, authentication, and policy management across multi-vendor wired and wireless networks
  • Switch auto-configuration automatically configures switch for different settings such as VLAN, CoS, PoE max power, and PoE priority when an Aruba access point is detected
  • User Role defines a set of switch-based policies in areas such as security, authentication, and QoS. A user role can be assigned to a group of users or devices, using switch-based local user role or download from ClearPass
  • For improved network simplicity and security, Aruba Dynamic Segmentation automatically enforces user, device and application-aware policies on Aruba wired and wireless networks. Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike
  • Dynamic Segmentation provides a secure tunnel that transports network traffic on a per-port or per-user role basis to an Aruba Controller. In a per-user role Tunnel Node, users are authenticated by the ClearPass Policy Manager which directs traffic to be tunneled to an Aruba controller or switch locally
  • Static IP Visibility allows ClearPass to do accounting for clients with static IP addresses

Quality of Service (QoS)

  • Advanced classifier-based QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
  • Layer 4 prioritization based on TCP/UDP port numbers
  • Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
  • Bandwidth shaping
    • Port-based rate limiting provides per-port ingress-/egress-enforced increased bandwidth
    • Classifier-based rate limiting uses an access control list (ACL) to enforce increased bandwidth for ingress traffic on each port
    • Supports per-port, per-queue egress-based reduced bandwidth
Interfaces/Ports
Modular:
Yes
Port/Expansion Slot Details:
  • 24 x 10 Gigabit Ethernet Expansion Slot
  • 1 x Stack
Media & Performance
Media Type Supported:
Optical Fiber
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
10GBase-X
I/O Expansions
Number of Total Expansion Slots:
25
Expansion Slot Type:
  • Stacking Module
  • SFP+
Number of SFP Slots:
24
Network & Communication
Layer Supported:
3
Management & Protocols
Manageable:
Yes
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
250 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Surface Mount
Height:
1.7"
Width:
17.4"
Depth:
17"
Weight (Approximate):
15.56 lb
Miscellaneous
Package Contents:
  • 3810M 24SFP+ 250W Switch
  • 1 x 3810 Switch Fan Tray
  • 1 x 3810M 4SFP+ Module
  • 1 x X371 12VDC 250W 100-240VAC Power Supply
  • Mounting Hardware
Country of Origin:
United States
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0190017142715
UPC: 190017142715
EAN: 0190017142715
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Aruba JL430A#B2B Data Networking is also known as HPE-JL430A#B2B
