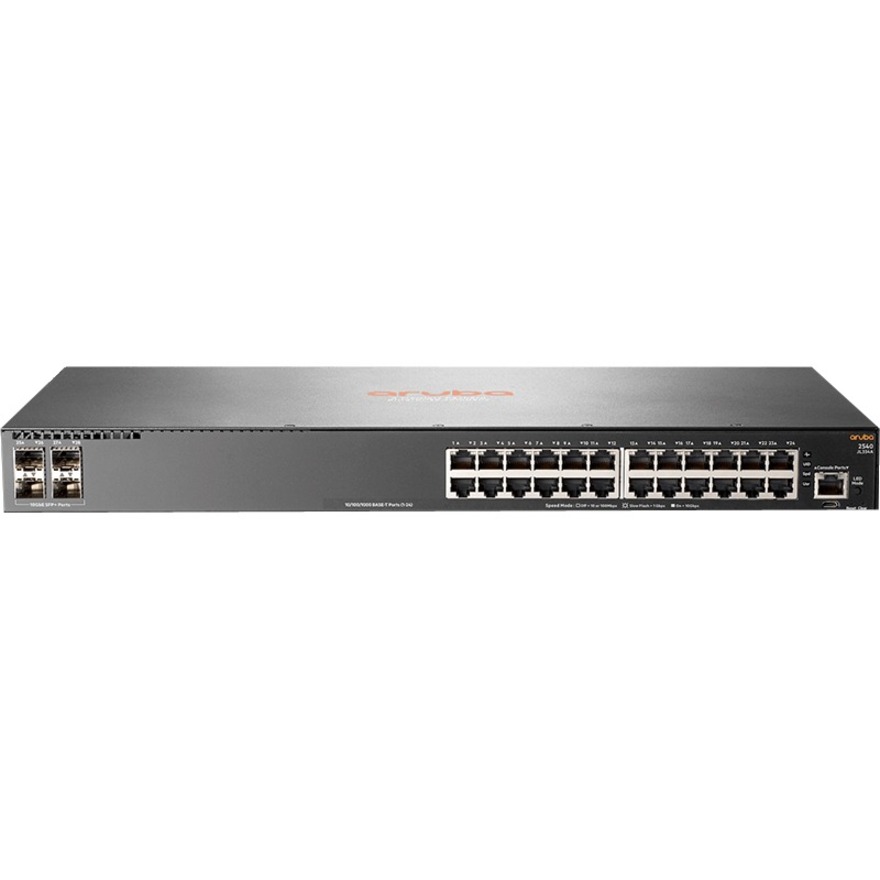

HPE Aruba JL354A#AC3 Ethernet Switch

Part Number: JL354A#AC3
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
24
Uplink Port
Yes
Modular
Yes
Network (RJ-45)
Yes

Product Description:

  Aruba 2540 24G 4SFP+ Switch No localization
Explore all HPE Aruba Parts Accessories
Add to Quote
HPE Aruba JL354A#AC3 Ethernet Switch
HPE Aruba JL354A#AC3 Ethernet Switch
HPE Aruba JL354A#AC3 Ethernet Switch HPE Aruba JL354A#AC3 Ethernet Switch

HPE Aruba Parts Accessory Model Overview

Products and parts from Aruba.
HPE Aruba JL354A#AC3 Ethernet Switch Overview

Aruba 2540 Switch Series

Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for today's mobile and IoT needs. The switches are easy to deploy, use and manage using Aruba AirWave or Aruba Central. Aruba ClearPass offers centralized security and external captive portal support.

The Aruba 2540 Switch Series provides a convenient and cost-effective wired access solution that can be quickly set up with Zero Touch Provisioning. PoE+ models deliver power across all access ports for wireless APs, security cameras and other IoT devices. The 2540 has wire speed backhaul bandwidth capacity with built-in 10GbE uplinks, robust QoS, static & RIP routing, IPv6 and includes a limited lifetime warranty with no software licensing required.

Interfaces/Ports
Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Network (RJ-45):
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X
I/O Expansions
Number of Total Expansion Slots:
4
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.1p
  • IEEE 802.3az
  • IEEE 802.1s
  • IEEE 802.3ad
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1v
  • IEEE 802.1Q
  • IEEE 802.1x
  • IEEE 802.1AX
  • IEEE 802.3x
Management & Protocols
Manageable:
Yes
Power Description
Frequency:
  • 50 Hz
  • 60 Hz
Power Source:
Power Supply
Power Consumption:
19.50 W
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
7.9"
Weight (Approximate):
5.31 lb
Item Numbers
GTIN: 0190017094175
UPC: 190017094175
EAN: 0190017094175
UNSPSC: 43222612
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The HPE Aruba JL354A#AC3 Ethernet Switch is also known as HPE-JL354AAC3
