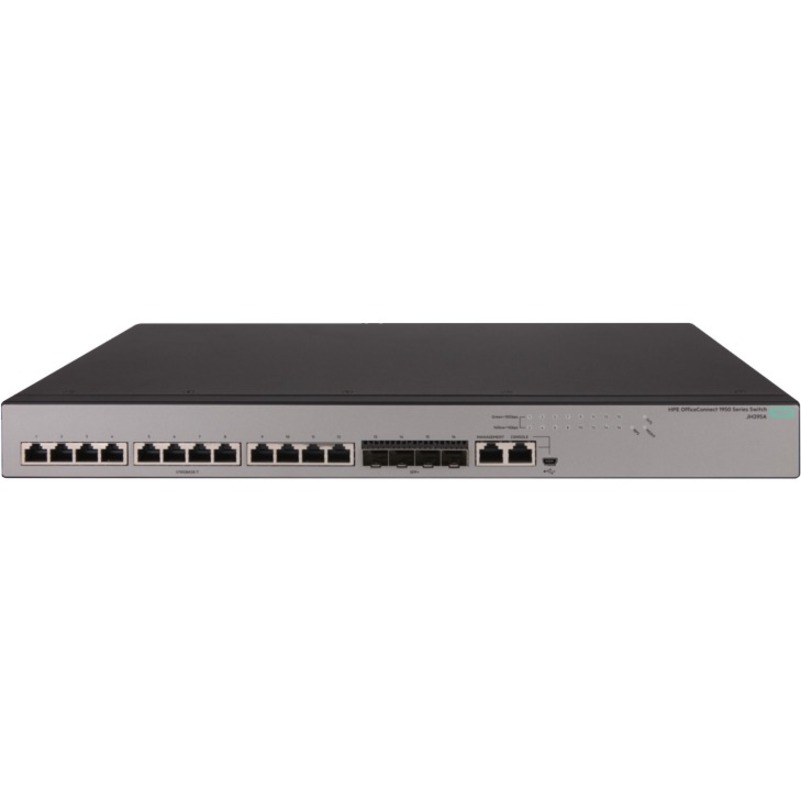

The HPE OfficeConnect 1950 Switch Series now provides a complete 10GbE solution for advanced small business networks who are looking for a high performance and cost effective networking solution today or in the future.
10GBASE-T deliver 10GbE over copper Category 6a cabling for simple, affordable, high-bandwidth connections to a maximum distance of 100 meters.
SFP+ ports allow for fiber connectivity at various distances, at 1/10GbE speeds, using optional SFP+ 10GbE or SFP Gigabit transceivers.
Aggregate 10GbE connections for even higher bandwidth using Link Aggregation Control Protocol.
Simplified Network AdministrationLogically group or stack two aggregation or four access switches of the HPE OfficeConnect 1950 Switch Series and manage this as a single entity, greatly simplifying network administration. Interconnect stacked units using 10GbE connections, for higher total bandwidth
Use the intuitive web-browser based interface to configure and administer these smart-managed devices.
These devices support SNMP versions 1, 2c and 3, allowing administration of these devices from a remote SNMP-based management platform.
Network Time Protocol facilitates timekeeping across your network so time-based actions and trouble-shooting logs are kept synchronized.
Units will automatically retrieve an IP Address from a DHCP server, allowing for near plug-and-play deployments.
Robust Security to Protect Your NetworkThe HPE OfficeConnect 1950 Switch Series lets you use Virtual LANs and access control lists to set bounds on what data can be seen by which users.
Leverage 802.1X with a RADIUS server to ensure only known and authorized users can access your network.
Multiple features guard your network from user or server spoofing and from malicious network-based attacks.
Help secure management traffic using supported SSL/HTTPS encryption and SNMPv3 capabilities.
Resiliency Features to Keep Your Network RunningThe HPE OfficeConnect 1950 Switch Series supports Spanning Tree Protocol, Rapid Spanning Tree Protocol, and Multiple Spanning Tree Protocol standards for creating hot-standby recovery links.
Distribute important links across multiple units in a logical stack for added resiliency. Units can even be in different buildings and still be logically stacked.
Devices support two independent primary and secondary operating system flash images for backup and recovery during unit upgrades.
Aggregation and PoE+ models can be paired with an optional Redundant Power System for power redundancy or PoE power supplement of the PoE+ switches; Increase available PoE+ power budget up to 740 Watts for the 24-port PoE+ model and to 800 Watts for the 48-port PoE+ model.
