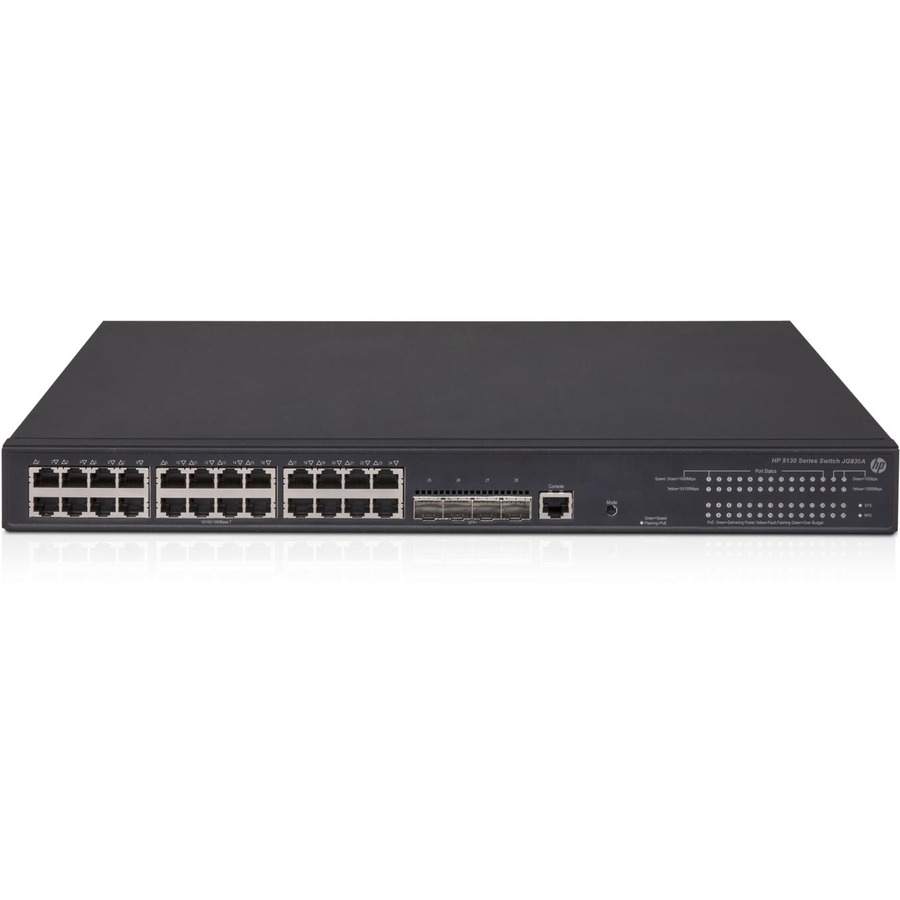

Aruba JG936A#ABA Network Switch

The Aruba JG936A#ABA Network Switch has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Aruba - HPE 5130 24G PoE+ 4SFP+ EI Swch U.S. - English localization

Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
Lets you conveniently connect different networks to enable improved flexibility to your infrastructure
With PoE+ Port, transfer data and up to 25.5 W of power on a single cable to?places where a power outlet is not present
Features 24 networking ports to meet the requirements of the most demanding workgroups
Built-in power supply to ensure all components are being supplied with accurate voltage
Can work as layer 3 routing for scalable network design
Rack-mountable form factor for added reliability and dependability
Management capability provides control over setup and configuration of your network
Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

Need a different version? See all Aruba Parts Accessories

Discontinued Need Assistance?

Add to Quote

Overview

Aruba Parts Accessory Model Overview

Products and parts from Aruba.

Aruba JG936A#ABA Network Switch Overview

The HP 5130 EI Switch Series is comprised of Gigabit Ethernet switches that support static and RIP Layer 3 routing, diversified services, and IPv6 forwarding, as well as provide four 10-Gigabit Ethernet (10GbE) extended interfaces. Unique Intelligent Resilient Framework (IRF) technology creates a virtual fabric by managing several switches as one logical device, which increases network resilience, performance, and availability, while reducing operational complexity. These switches provide Gigabit Ethernet access and can be used at the edge of a network or to connect server clusters in data centers. High availability, simplified management, and comprehensive security control policies are among the key features that distinguish this series.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Yes

Bypass:

Modular:

Management Port:

Yes

USB:

Number of PoE+ (RJ-45) Ports:

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network
4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet
10 Gigabit Ethernet

Network Technology:

10/100/1000Base-T
10GBase-X

I/O Expansions

Number of Total Expansion Slots:

Expansion Slot Type:

SFP+

Number of SFP Slots:

Number of SFP+ Slots:

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

Web-based Management
SNMP v1/2c/3
Command Line Interface (CLI)
RMON
DHCP
IMC
MIB

Memory

Standard Memory:

1 GB

Memory Technology:

SDRAM

Flash Memory:

128 MB

Reliability

MTBF:

417312 Hour

Power Description

PoE (RJ-45) Port:

Power Source:

Power Supply

Power Consumption:

460 W

Physical Characteristics

Compatible Rack Unit:

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.3"

Depth:

11.8"

Weight (Approximate):

17.64 lb

Miscellaneous

Package Contents:

5130-24G-POE+-4SFP+ EI Switch
Mounting Brackets
Power Cord

Certifications & Standards:

Safety:

UL 60950-1
EN 60825-1 Safety of Laser Products-Part 1
EN 60825-2 Safety of Laser Products-Part 2
IEC 60950-1
CAN/CSA-C22.2 No. 60950-1
Anatel
ULAR
GOST
EN 60950-1/A11
FDA 21 CFR Subchapter J

Emissions:

EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A
EN 61000-4-11:2004
ANSI C63.4-2009
EN 61000-3-3:2008
VCCI V-4/2012.04
EN 6100-3-2:2006+A1:2009 + A2:2009
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-4-3:2006
EN 61000-4-4:2012
EN 61000-4-5:2006
EN 61000-4-6:2009
AS/NZS CISPR 22:2009 Class A
CISPR 22:2008 Class A
EN 55022:2010 Class A
EN 61000-4-29: 2000
CISPR 24:2010
EN 300 386 V1.6.1
VCCI V-3/2013.04 Class A

Immunity:

Generic: EN 55024
ESD: EN300 386

IEEE Standards:

802.1D
802.1p
802.1Q
802.1s
802.1w
802.3
802.3a
802.3a
802.3i
802.3x
802.3z

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE
REACH

Warranty

Limited Warranty:

Lifetime

Item Numbers

UNSPSC: 43222612
