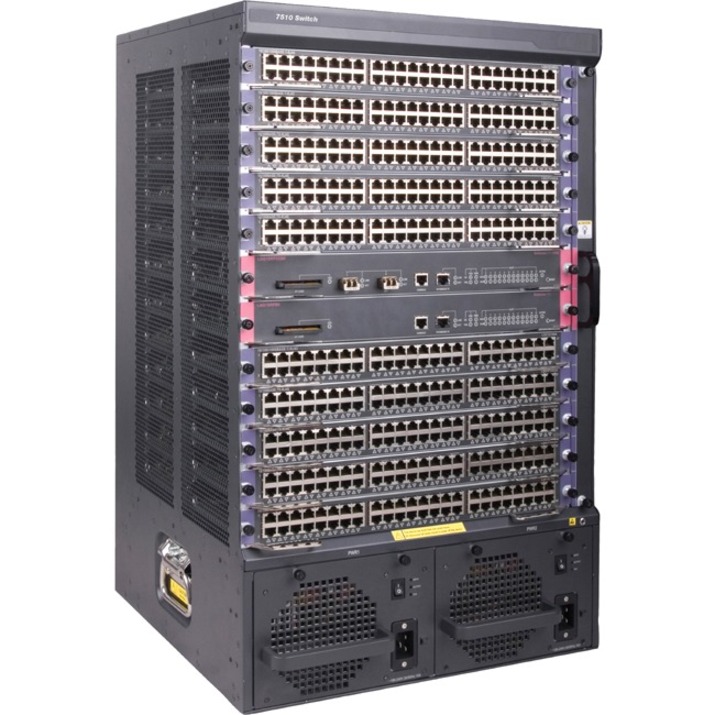

The HP 7500 Switch Series are designed for the evolving network demands of a campus LAN core, aggregation, and access layer. They deliver up to 160 Gbps of switching capacity per slot and up to 1500 W for PoE/PoE+ power per slot for mission-critical applications and high-speed communications.
Broad offering of interfaces include 40GbE connectivity, cost-effective wire-speed 10GbE and high-density PoE/PoE+ of up to 480 PoE/PoE+ ports for IP phones, cameras, and future high-density Internet of Things (IoT) deployments.
Includes advanced hardware feature sets such as MACsec for greater end-point or switch-to-switch security and VXLAN to support flexible connections over a layer 3 everywhere campus network.
No hidden costs with license-free software with Layer 2/3 feature set including IPv6, MPLS functionality, and robust QoS.
Scalable Architecture for a High-Performance NetworkThe HP 7500 Switch Series supports a maximum of 1,920 Gb/s switching capacity with a 2.4 Tbps backplane, delivering enhanced performance and future expansion capability.
Delivers up to 966 MPPS of packet performance with dual fabrics performing all switching and routing functions in the I/O modules, meeting current and future demands of bandwidth-intensive applications.
HP IRF allows up to four 7500 Switch Series chassis to be virtualized into a single switching/routing fabric that improves network performance and resiliency, that simplifies deployment and management.
Open application architecture enables fully integrated high-performance application-specific modules, such as a 20 Gbps Firewall module, providing advanced security.
Robust Security and Quality of Service (QoS) ControlsThe HP 7500 Switch Series includes a robust set of security and quality of service features to build a trusted network that meets your ever-changing corporate policies and compliances.
Flexible authentication options include 802.1X, MAC and Web Authentication, and Endpoint Admission Defense, providing you with greater security and policy-driven application authentication.
Advanced distributed denial of service (DDOS) protection, such as DHCP Snooping, IP Source Guard, and ARP Protection, and flexible traffic controls, such as policy-based routing, QoS, and ACLs, are available to manage end-to-end application priorities.
Included with the 7500 Switch Series are a powerful set of multilevel-access security controls, such as varying security management login, RADIUS, SSH, TACACS/TACACS+, to protect and control change management access.
Single Management View of the NetworkThe HP 7500 Switch Series can be seamlessly managed with Intelligent Management Center (IMC) software which provides end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
