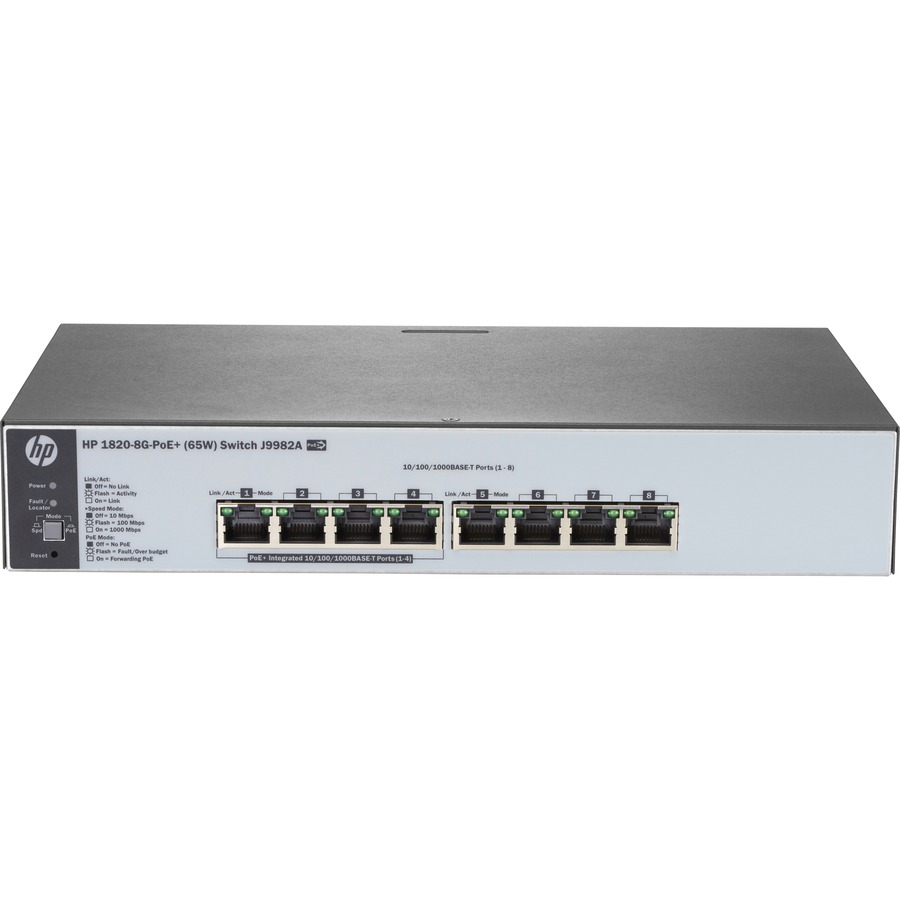

HPE Aruba J9982A#ABA Ethernet Switch

Part Number: J9982A#ABA

Model: Parts

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Total Number of Network Ports

Token Ring Port

LRE Port

Uplink Port

Product Description:

HPE 1820 8G PoE+ (65W) Switch U.S. - English localization

Explore all HPE Aruba Parts Accessories

Add to Quote

Overview

HPE Aruba Parts Accessory Model Overview

Products and parts from Aruba.

HPE Aruba J9982A#ABA Ethernet Switch Overview

HP 1820 Switch Series devices are basic smart-managed, fixed-configuration Gigabit Ethernet Layer 2 switches designed for small businesses looking for key features in an easy-to-administer solution.

The series consists of 6 switches including 8-, 24-and 48 port Gigabit Ethernet switches and 8-, 24-, and 48 port Gigabit PoE+ models each providing non-blocking Gigabit per port performance. Some models include SFP ports for fiber connectivity and some are fanless, making them ideal for office deployments. All 1820 Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet (PoE) switch for environments where no line power is available.

These Gigabit switches are plug-and-play out of the box, yet network operation can be fine-tuned through features available from a simple web browser-based GUI, if necessary. Customizable features include VLANs, Rapid Spanning Tree, IGMP Snooping, link aggregation trunking and DSCP QoS policies. All models include the latest energy-saving capabilities, including Energy Efficient Ethernet (EEE) and idle-port power down.

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Token Ring Port:

LRE Port:

Uplink Port:

Bypass:

Modular:

Management Port:

USB:

Number of PoE+ (RJ-45) Ports:

Stack Port:

Number of Network (RJ-45) Ports:

Port/Expansion Slot Details:

8 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Yes

Management:

Web based management
DHCP
VLAN
QoS

Memory

Standard Memory:

128 MB

Memory Technology:

SDRAM

Flash Memory:

16 MB

Reliability

MTBF:

984273.60 Hour

Power Description

PoE (RJ-45) Port:

Yes

Power Source:

Power Supply

Physical Characteristics

Product Color:

Gray

Compatible Rack Unit:

Form Factor:

Rack-mountable
Desktop
Under Table
Wall Mountable

Height:

1.7"

Width:

10"

Depth:

6.3"

Weight (Approximate):

2.01 lb

Miscellaneous

Package Contents:

1820-8G-PPoE+ (65W) Switch
Rack Mount Kit

Certifications & Standards:

Safety:

UL 60950-1
CAN/CSA 22.2 No. 60950-1
EN 60825
IEC 60950-1
EN 60950-1

Emissions:

FCC Class A
EN 55022/CISPR-22 Class A
VCCI Class A

Immunity:

Generic: EN 55024, CISPR 24
EN: EN 55024, CISPR 24
ESD: IEC 61000-4-2
Radiated: IEC 61000-4-3
EFT/Burst: IEC 61000-4-4
Surge: IEC 61000-4-5
Conducted: IEC 61000-4-6
Power frequency magnetic field: IEC 61000-4-8
Voltage dips and interruptions: IEC 61000-4-11
Harmonics: EN 61000-3-2, IEC 61000-3-2
Flicker: EN 61000-3-3, IEC 61000-3-3

IEEE Standards:

802.1D Spanning Tree Protocol
802.1p Priority
802.1Q VLANs
802.1W Rapid Spanning Tree Protocol
802.3ad Link Aggregation Control Protocol (LACP)
802.3x
802.3
802.3u
802.3ab
802.3z

Environmentally Friendly:

Yes

Environmental Certification:

REACH

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0818240865101

UPC: 818240865101

EAN: 0818240865101

UNSPSC: 43222612
