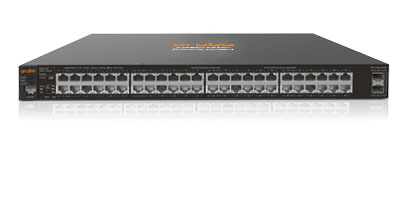

HPE Aruba J9777A Ethernet Switch

Part Number: J9777A
Model: 2530 Series
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Token Ring Port
No
LRE Port
No
Bypass
No

Product Description:

  Managed - 8 x 10/100/1000 + 2 x combo Gigabit SFP - desktop, rack-mountable, wall-mountable

HPE Aruba 2530 Series Ethernet Switch Model Overview

he Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprises, branch offices, and SMBs. This series of fully managed switches delivers full Layer 2 capabilities with enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support. Right size deployment is simple with choice of 8-, 24-, and 48-port models available with Gigabit or Fast Ethernet ports, optional PoE+, and optional 10GbE uplinks. The 2530 delivers power savings with fanless models, Energy Efficient Ethernet, ability to disable LEDs and enable port low power mode. These switches provide consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.
HPE Aruba J9777A Ethernet Switch Overview
HP 2530 Switch Series consists of four fully managed Layer 2 edge switches, delivering cost-effective, reliable, and secure connectivity for business networks. Designed for entry-level to midsize enterprise networks, these Gigabit Ethernet switches deliver full Layer 2 capabilities with enhanced access security, traffic prioritization, IPv6 host support, and optional PoE+, and include a product lifetime warranty.

Interfaces/Ports
Total Number of Network Ports:
8
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Management Port:
Yes
USB:
No
Number of Network (RJ-45) Ports:
10
Port/Expansion Slot Details:
  • 10 x Gigabit Ethernet Network
  • 2 x Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
I/O Expansions
Total Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP
Shared SFP Slot:
Yes
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
  • MIB II
  • Command Line Interface (CLI)
  • SNMP v1/2c/3
  • QoS
  • VLAN
  • Web-based Management
  • DHCP
  • Telnet
  • RMON
  • Intelligent Management Center
  • sFlow
Memory
Standard Memory:
256 MB
Memory Technology:
DDR3 SDRAM
Flash Memory:
128 MB
Power Description
PoE (RJ-45) Port:
No
Power Source:
Power Supply
Physical Characteristics
Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Wall Mountable
  • Desktop
Height:
1.8"
Width:
10"
Depth:
6.3"
Weight (Approximate):
2.01 lb
Miscellaneous
Certifications & Standards:
  • FCC Class A certified
  • CISPR 22 Class A
  • CISPR 24
  • EN 61000-3-2
  • IEC 61000-3-2
  • IEC 61000-3-3
  • IEC 61000-4-11
  • IEC 61000-4-2
  • IEC 61000-4-3
  • IEC 61000-4-4
  • IEC 61000-4-5
  • IEC 61000-4-6
  • IEC 61000-4-8
  • VCCI Class A ITE
  • EN 61000-3-3
  • EN55024
  • EN55022 Class A
  • UL 60950-1
  • IEC 60950-1
  • EN 60950-1
  • EN 60825
  • CSA C22.2 No. 60950-1
Country of Origin:
China
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0641753364904, 0657379383014, 0818264215791, 0886112458706
UPC: 641753364904, 657379383014, 818264215791, 886112458706
EAN: 0641753364904, 0657379383014, 0818264215791, 0886112458706
UNSPSC: 43222612
