Aruba IAP-105-US Access Point


5.0

(1 reviews)

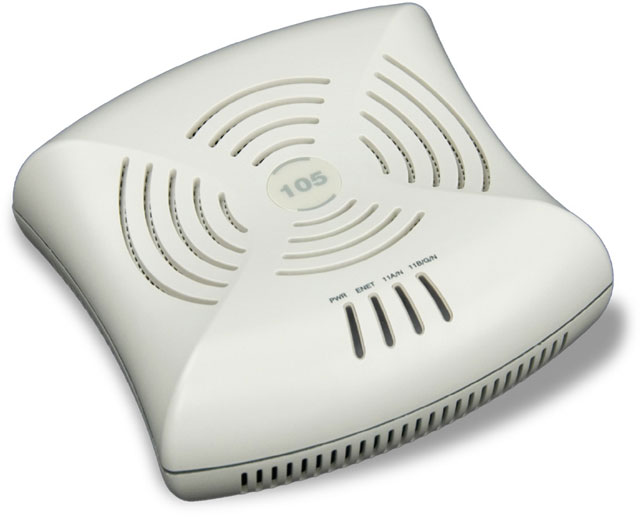

Aruba AP-105 - Instant Access Point, 802.11a/b/g-n, US Only
Features 802.11a/b/g/n AP, air monitor (AM) and Remote AP (RAP)

The Aruba AP-105 is an affordable indoor 802.11n access point (AP) designed for high-density deployments in offices, hospitals, schools and retail stores. The compact, high-speed AP-105 delivers wire-like performance at data rates up to 300 Mbps per radio. The AP-105 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with two internal omnidirectional antennas. With ceiling and wall-mounting options, the AP-105 is built to provide years of trouble-free operation and is backed by a limited lifetime warranty.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: Yes
  • ISM Minimum Frequency: 2.40 GHz
  • UNII Minimum Frequency: 5.15 GHz
  • Antenna Gain:
    • 2.5 dBi
    • 4 dBi
  • Antenna Type: Omnidirectional Antenna
  • Total Number of Antennas: 4
  • Wireless Transmission Speed: 300 Mbps
  • ISM Maximum Frequency: 2.48 GHz
  • UNII Maximum Frequency: 5.85 GHz
  • Features:
    • MIMO Technology
    • Quality of Service (QoS)
  • Wireless Security: IEEE 802.1x

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Aruba Networks
  • Manufacturer: Aruba Networks, Inc
  • Product Model: AP-105
  • Product Name: Instant AP-105 Wireless Access Point
  • Product Line: Instant

Physical Characteristics

  • Height: 5.3"
  • Width: 5.2"
  • Depth: 1.8"
  • Form Factor:
    • Wall Mountable
    • Ceiling Mountable
    • Desktop
  • Weight (Approximate): 10.58 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • VGA: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • IEEE 802.11a
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.3ab
    • IEEE 802.3af
    • FCC/Industry of Canada
    • CE Marked
    • R&TTE Directive 1995/5/EC
    • Low Voltage Directive 72/23/EEC
    • EN 300 328
    • EN 301 489
    • EN 301 893
    • UL/IEC/EN 60950
    • CB Scheme Safety
    • cTUVus
    • Japan MIC/VCCI
    • Korea KCC
    • Brazil ANATEL
    • Mexico NOM/COFETEL
    • China SRRC/CCC
    • UL2043 Compliant

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: Lifetime

Management & Protocols

  • Management: Adaptive Radio Management (ARM)

Full specifications (PDF)

Full specifications (PDF)

Brand Aruba
Model AP-105
Wireless Type 802.11a/b/g/n


Customer Review Summary


5.0

(based on 1 reviews)

Ratings Distribution

  • 5 Stars



    (1)

  • 4 Stars



    (0)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

100%

of respondents would recommend this to a friend.

Reviewed by 1 customers

Sort by

Displaying reviews 1-1

Back to top


5.0

Winner!

By Jared

from South Florida

5/13/2014

Verified Buyer

Pros

  • Easy setup
  • Lots of features
  • Never crashes

Cons

  • Pricey

Best Uses

Comments about Aruba AP-105 IAP-105-US:

I use these at work, but had a cheap Zoom wifi box at my house. I was so sick of it crashing (previously had a Linksys that did a similar thing), that I decided you get what you pay for. The Aruba's are rock solid and never have issues.

Displaying reviews 1-1

Back to top

Recommended Accessories for Model: Aruba AP-105 Access Point

The Aruba IAP-105-US is also known as ARU-IAP-105-US or IAP105US .
