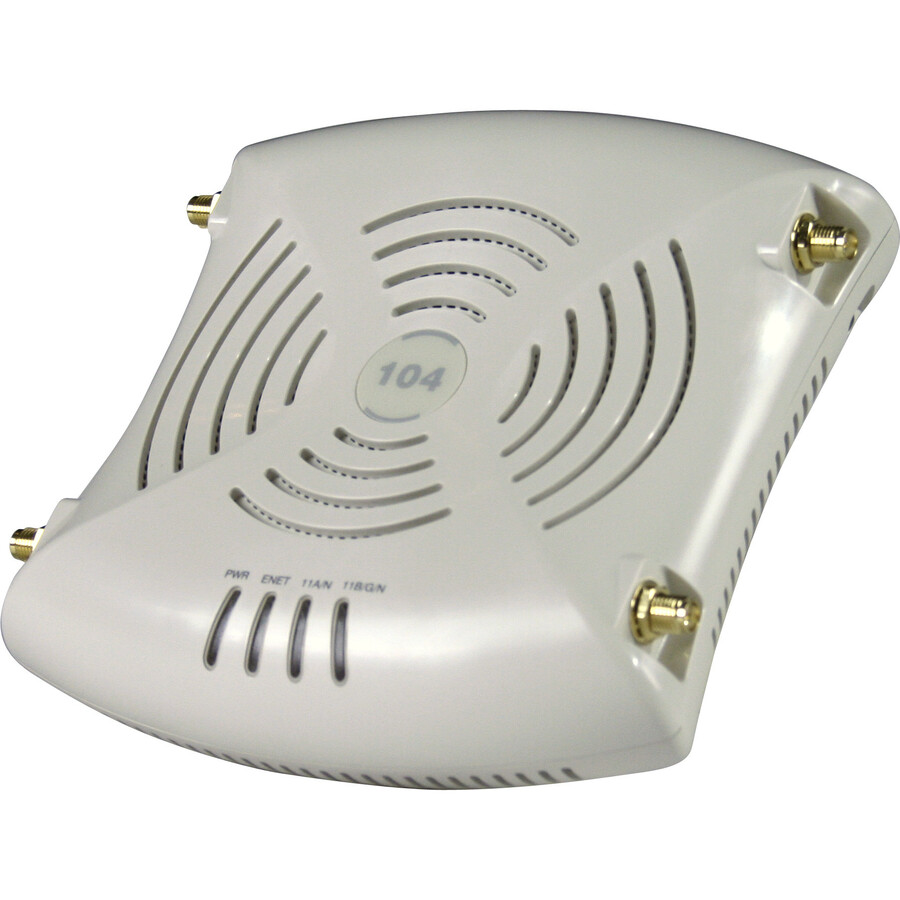

HPE Aruba IAP-104 Wireless Access Points

Part Number: IAP-104
Model: AP-104
Add to My Shopping List Add to Compare
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  AP-104 Instant Access Point, 802.11ABGN (NOT for use in United States)
Explore all HPE Aruba AP-104 Wireless Access Points
Add to Quote
HPE Aruba IAP-104 Wireless Access Points
HPE Aruba IAP-104 Wireless Access Points
HPE Aruba IAP-104 Wireless Access Points
HPE Aruba IAP-104 Wireless Access Points HPE Aruba IAP-104 Wireless Access Points HPE Aruba IAP-104 Wireless Access Points
Full specifications (PDF)

HPE Aruba AP-104 Wireless Access Points Model Overview

Working with Aruba's line of centralized Mobility Controllers, the AP-104 deliverd secure, high-speed network services that move users to a "wireless where possible, wired where necessary" network access model. The network can then be rightsized by eliminating unused Ethernet switch ports, which reduces operating costs.
HPE Aruba IAP-104 Wireless Access Points Overview

Multifunctional and affordable 100 series wireless access points (APs) deliver enterprise-grade Wi-Fi to high-density client environments in offices, hospitals, schools, retail stores and warehouses.

These high-performance 802.11n APs deliver wireless data rates up to 300 Mbps per radio and ensure peak performance by utilizing channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases RF signal range and reliability.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.88 GHz
Total Number of Antennas:
4
Antenna Type:
Omnidirectional Antenna
Antenna Connector:
RP-SMA Connector
Wireless Transmission Speed:
300 Mbit/s
Features:
MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Management Port:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color Family:
White
Product Color:
White
Form Factor:
  • Ceiling Mountable
  • Wall Mountable
Height:
1.8"
Width:
5.2"
Depth:
5.3"
Weight (Approximate):
10.58 oz
Miscellaneous
Package Contents:
  • Instant IAP-104 Wireless Access Point
  • External Antenna Connectors
Certifications & Standards:

Regulatory:

  • FCC/Industry of Canada
  • CE Marked
  • R&TTE Directive 1995/5/EC
  • Low Voltage Directive 72/23/EEC
  • EN 300 328
  • EN 301 489
  • EN 301 893
  • UL/IEC/EN 60950
  • EN 60601-1-1, EN60601-1-2
  • Korea KCC
  • Mexico NOM/COFETEL
  • Japan MIC/VCCI
  • Brazil ANATEL
  • China SRRC/CCC
  • AS/NZS 4260, 4771, 3548
  • cTUVus
  • UL2043 Plenum Rating

IEEE Standards:

  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.11a
  • IEEE 802.3af
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43222640
The HPE Aruba IAP-104 Wireless Access Points is also known as ARU-IAP-104
