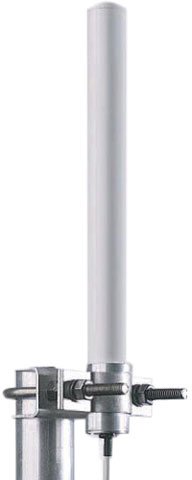

Aruba AP-ANT-19-KIT Wireless Antenna

The Aruba AP-ANT-19-KIT Wireless Antenna has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Aruba Antennas - Aruba Indoor/Outdoor Omni Antenna AP-ANT-19 - Range - UHF, SHF - 2.40 GHz, 5.15 GHz to 2.50 GHz, 5.88 GHz - 6 dBi - Wireless Data Network, Outdoor, Radio CommunicationPole/Ceiling - Omni-directional
  • Receive signals from multiple directions with this omnidirectional antenna
  • Offers up to 6 dBi gain
  • Designed for outdoor applications
  • Antenna can be mounted as pole/ceiling
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Aruba Antennas Accessory Model Overview
Aruba antenna options.
Aruba AP-ANT-19-KIT Wireless Antenna Overview

The wideband AP-ANT-19 antenna offers full-band coverage for 802.11b/a/g/n and includes all hardware re-quired to mount indoors or outdoors. The antenna provides the "no compromise" performance expected from a single-band radio system in a dual-band radio.

While many dual-band antennas are a compromise between the two operating bands, the AP-ANT-19 provides full-band coverage and omnidirectional coverage over both bands.

Technical Information
Directivity:
Omni-directional
Frequency Band Type:
  • UHF
  • SHF
Operating Frequency Range:
  • 2.4 GHz to 2.5 GHz
  • 5.15 GHz to 5.875 GHz
Antenna Gain:
6 dBi
Impedance:
50 Ohm
Polarization:
Vertical
Cable Length:
3 ft
Interfaces/Ports
Number of Connectors:
1
Connector Type:
RP-SMA
USB:
No
Physical Characteristics
Height:
9.65"
Form Factor:
Pole/Ceiling
Weight (Approximate):
308.65 lb
Miscellaneous
Application/Usage:
  • Wireless Data Network
  • Outdoor
  • Radio Communication
Package Contents:
  • Indoor/Outdoor Omni Antenna AP-ANT-19
  • RP-SMA Connector
  • Integrated Pigtail Cable (36 inch)
  • Pole,I-beam and Ceiling Tile Mount Hardware
Certifications & Standards:

IEEE 802.11b/a/g/n

Item Numbers
GTIN: 0096962253912
UPC: 096962253912
EAN: 0096962253912
UNSPSC: 43221706
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Aruba AP-ANT-19-KIT Wireless Antenna is also known as ARU-AP-ANT-19-KIT
