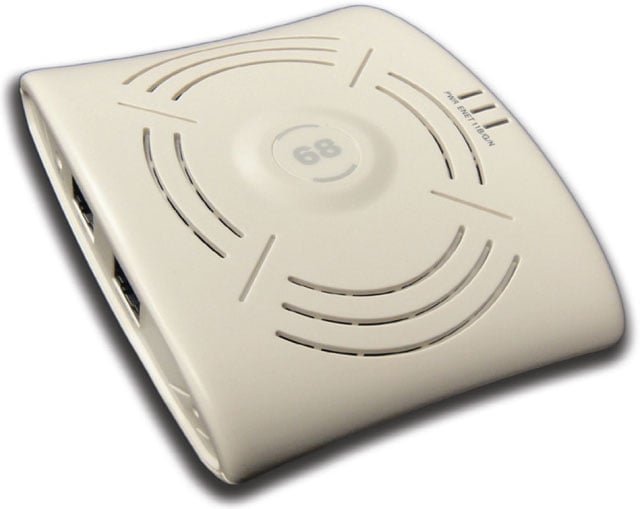

Aruba AP-68 - AP 68 Access Point (Wireless)
Entry-level indoor 802.11n at 2.4 GHz

The Aruba AP-68 is ideal for environments that require a wireless LAN with enterprise-class security and reliability, but do not need to support high densities of Wi-Fi clients or extended range. This access point is ideal for organizations transitioning from wired to Wi-Fi, and those that are upgrading from 802.11b/g to 802.11n. The AP-68 features one 2.4-GHz radio with nominal 100-milliwatt transmit power and two internal antennas.

Technical Information

  • Wireless LAN Standard: IEEE 802.11n
  • ISM Band: Yes
  • UNII Band: No
  • ISM Minimum Frequency: 2.40 GHz
  • Antenna Gain: 3 dBi
  • Antenna Type: Omnidirectional Antenna
  • Wireless Transmission Speed: 150 Mbps
  • ISM Maximum Frequency: 2.48 GHz

General Information

  • Product Type: Wireless Access Point
  • Brand Name: Aruba Networks
  • Manufacturer: Aruba Networks, Inc
  • Product Model: AP-68
  • Product Name: AP-68 Access Point

Physical Characteristics

  • Height: 1.5"
  • Width: 5.5"
  • Depth: 4.1"
  • Form Factor:
    • Desktop
    • Ceiling Mountable
  • Weight (Approximate): 5.10 oz

Interfaces/Ports

  • Ethernet Port: Yes
  • Fast Ethernet Port: Yes
  • Gigabit Ethernet Port: Yes
  • 10Gigabit Ethernet Port: No
  • Number of Network (RJ-45) Ports: 1
  • PoE (RJ-45) Port: Yes
  • USB: No
  • HDMI: No
  • VGA: No
  • Audio Line Out: No
  • Serial Port: No
  • Network (RJ-11): No
  • Powerline: No
  • Management Port: Yes

Other

  • Certifications & Standards:
    • IEEE 802.3
    • IEEE 802.3u
    • IEEE 802.11b
    • IEEE 802.11g
    • IEEE 802.11n
    • Regulatory:
    • FCC/Industry of Canada
    • R&TTE Directive - 1995/5/EC
    • EN 300 328
    • EN 301 893
    • CB Scheme Safety, cTUVus
    • Korea KCC
    • Mexico NOM/COFETEL
    • UL2043 Compliant
    • CE Marked
    • Low Voltage Directive - 72/23/EEC
    • EN 301 489
    • UL/IEC/EN 60950
    • Japan MIC/VCCI
    • Brazil ANATEL
    • China SRRC/CCC

Power Description

  • Input Voltage: 48 V DC
  • Power Source: AC Adapter

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Aruba
Model AP-68
Wireless Type 802.11 b/g/n
