HPE Aruba AP-175AC Wireless Access Points

Part Number: AP-175AC
Model: Antennas
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  AP-175AC OUTDOOR ACCESS POINT 802.11N, AC POWERED (WITH PSE)
Explore all HPE Aruba Antennas Accessories
Add to Quote

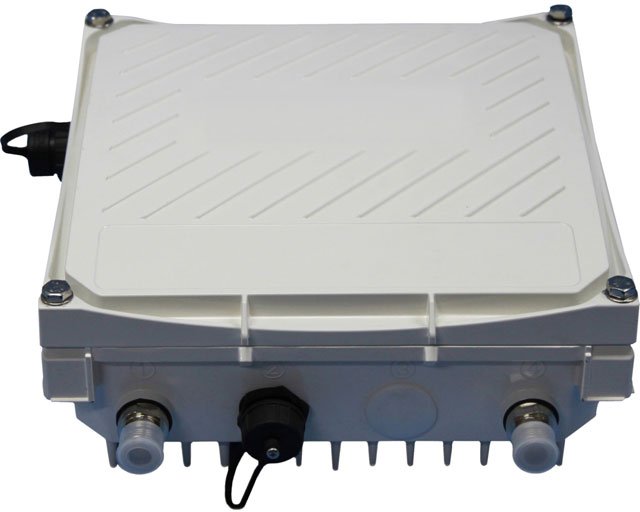

HPE Aruba AP-175AC Wireless Access Points
HPE Aruba AP-175AC Wireless Access Points

HPE Aruba Antennas Accessory Model Overview

Aruba antenna options.
HPE Aruba AP-175AC Wireless Access Points Overview

The multifunction AP-175 is an affordable, fully hardened outdoor 802.11n access point (AP) that provides maximum deployment flexibility in high-density campuses, storage yards, warehouses, container/transportation facilities, extreme industrial production areas and other harsh environments. The high-performance AP-175 delivers wire-like performance at data rates up to 300 Mbps per radio.

The AP-175 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with quad antenna interfaces. Each radio is capable of providing a maximum aggregate transmit power of up to 25dBm. With wall and mast mounting options, the AP-175 is built to provide years of trouble-free operation.

Engineered to survive in harsh outdoor environments, the AP-175 withstands exposure to high and low temperatures, persistent moisture and precipitation, and is fully sealed for protection from airborne contaminants. All electrical interfaces include industrialstrength surge protection.

Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Total Number of Antennas:
4
Antenna Connector:
N-Type
Wireless Transmission Speed:
300 Mbit/s
Features:
MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
Yes
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:

Adaptive Radio Management (ARM)

Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Mast-mountable
Height:
10.2"
Width:
9.4"
Depth:
4.1"
Weight (Approximate):
9.37 lb
Miscellaneous
Package Contents:
  • AP-175 Access Point
  • Mounting Bracket
  • Solar Shield
Certifications & Standards:
  • IEEE 802.11a
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • FCC/Industry of Canada
  • R&TTE Directive 1995/5/EC
  • EN 300 328
  • EN 301 893
  • CB Scheme Safety, cTUVus
  • Korea KCC
  • Mexico NOM/COFETEL
  • IEC 60529 IP66, NEMA 4X
  • CE Marked
  • Low Voltage Directive 72/23/EEC
  • EN 301 489
  • UL/IEC/EN 60950
  • Japan MIC/VCCI
  • Brazil ANATEL
  • China SRRC/CCC
  • AS/NZS 4260, 4771, 3548
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0096962254438, 0493212116896
UPC: 096962254438, 493212116896
EAN: 0096962254438, 0493212116896
UNSPSC: 43222640
The HPE Aruba AP-175AC Wireless Access Points is also known as ARU-AP-175AC
