HPE Aruba AP-105-F1 Wireless Access Points

Part Number: AP-105-F1
Model: AP-105
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.40 GHz

Product Description:

  105 Wireless Access Point, FIPS/TAA
Explore all HPE Aruba AP-105 Wireless Access Points
Add to Quote
HPE Aruba AP-105-F1 Wireless Access Points
HPE Aruba AP-105-F1 Wireless Access Points
HPE Aruba AP-105-F1 Wireless Access Points HPE Aruba AP-105-F1 Wireless Access Points
Full specifications (PDF)

HPE Aruba AP-105 Wireless Access Points Model Overview

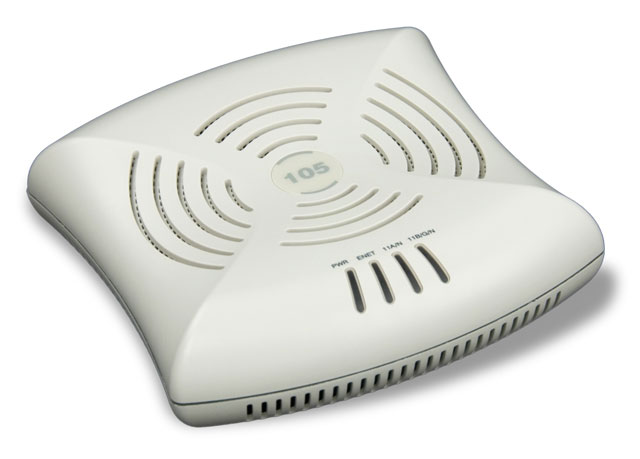

The Aruba AP-105 is an affordable indoor 802.11n access point (AP) designed for high-density deployments in offices, hospitals, schools and retail stores. The compact, high-speed AP-105 delivers wire-like performance at data rates up to 300 Mbps per radio. The AP-105 features two 2x2 MIMO dual-band 2.4-GHz/5-GHz radios with two internal omni-directional antennas. With ceiling and wall-mounting options, the AP-105 is built to provide years of trouble-free operation and is backed by a limited lifetime warranty.
HPE Aruba AP-105-F1 Wireless Access Points Overview

Multifunctional and affordable 100 series wireless access points (APs) deliver enterprise-grade Wi-Fi to high-density client environments in offices, hospitals, schools, retail stores and warehouses.

These high-performance 802.11n APs deliver wireless data rates up to 300 Mbps per radio and ensure peak performance by utilizing channel bonding, block acknowledgement and MIMO radios. Advanced antenna technology also increases RF signal range and reliability.

The 105 series of APs features two dual-band 2.4-GHz and 5-GHz radios with 2x2 MIMO and four integrated omni-directional downtilt antennas, making it ideal for warehouses and high-ceiling deployments. The 104 series features the same radios with external antenna connectors.
Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.88 GHz
Total Number of Antennas:
4
Number of Internal Antennas:
4
Antenna Gain (Isotropic):
4.5 dBi
Antenna Type:
Omnidirectional Antenna
Wireless Transmission Speed:
300 Mbit/s
Features:
MIMO Technology
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
Network (RJ-11):
No
PoE (RJ-45) Port:
Yes
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No
Management Port:
Yes
Management & Protocols
Management:

Adaptive Radio Management (ARM)

Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
5.2"
Width:
5.3"
Depth:
1.8"
Weight (Approximate):
10.56 oz
Miscellaneous
Certifications & Standards:
  • FIPS Complaint
  • TAA Complaint
  • FCC/Industry of Canada
  • CE Marked
  • R&TTE Directive 1995/5/EC
  • Low Voltage Directive 72/23/EEC
  • EN 300 328
  • EN 301 489
  • EN 301 893
  • UL/IEC/EN 60950
  • EN 60601-1-1
  • EN 60601-1-2
  • CB Scheme Safety
  • cTUVus
  • UL2043 Plenum Rating
IEEE Standards:
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.3af
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43222640
