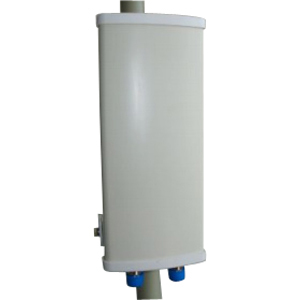

HPE Aruba ANT-2X2-5614L Wireless Antenna

Part Number: ANT-2X2-5614L
Model: Antennas
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Operating Frequency Range
4.9 GHz to 5.5 GHz
Antenna Gain
14 dBi
Impedance
50 Ohm
Number of Connectors
2

Product Description:

  Aruba Outdoor MIMO Antenna ANT-2x2-5614L - 14 dBi - Wireless Data NetworkPole/Wall
Explore all HPE Aruba Antennas Accessories
Add to Quote
HPE Aruba ANT-2X2-5614L Wireless Antenna
HPE Aruba ANT-2X2-5614L Wireless Antenna
HPE Aruba ANT-2X2-5614L Wireless Antenna HPE Aruba ANT-2X2-5614L Wireless Antenna

HPE Aruba Antennas Accessory Model Overview

Aruba antenna options.
HPE Aruba ANT-2X2-5614L Wireless Antenna Overview

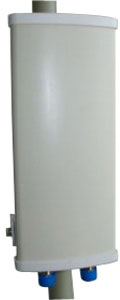

ANT-2x2-5614L is a 2-element 60 degree sector antenna for use in 802.11n MIMO mesh link applications. The antenna integrates 2 differently polarized elements, and provides coverage of the 4.9 - 5.5 GHz frequency band in a single antenna radome.

Technical Information
Operating Frequency Range:
4.9 GHz to 5.5 GHz
Antenna Gain:
14 dBi
Impedance:
50 Ohm
Interfaces/Ports
Number of Connectors:
2
Connector Type:
N-Type
Physical Characteristics
Height:
10.63"
Width:
4.06"
Depth:
1.38"
Form Factor:
Pole/Wall
Weight (Approximate):
1.43 lb
Miscellaneous
Application/Usage:
Wireless Data Network
Package Contents:
  • Outdoor MIMO Antenna ANT-2x2-5614L
  • Mount Kit for Wall and Pole Mounting
Compatibility:

Aruba AP-175 Access Point

Certifications & Standards:

IEEE 802.11n

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43221706
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The HPE Aruba ANT-2X2-5614L Wireless Antenna is also known as ARU-ANT-2X2-5614L
