Arecont Vision AV5245DN-01-DA-LG Products

Part Number: AV5245DN-01-DA-LG
Model:

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Fixed Focal Length
1.12 mm
Image Sensor Type
CMOS

Product Description:

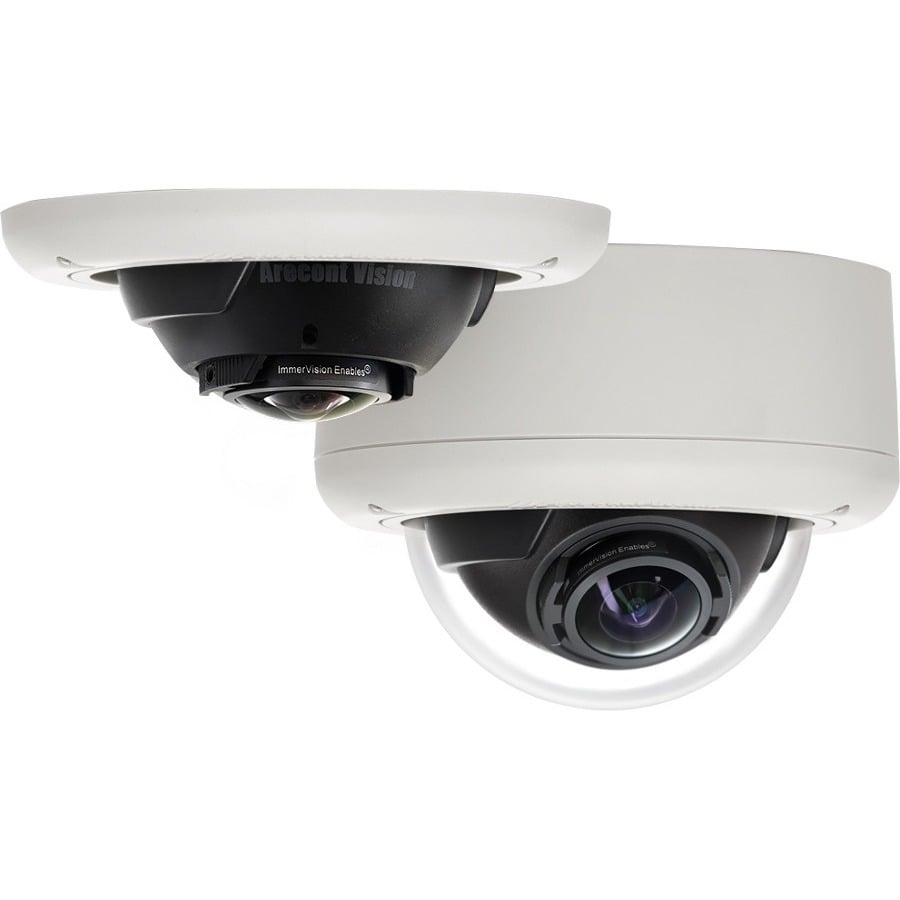

  Arecont Vision MegaBall AV5245DN-01-DA-LG 5 Megapixel Network Camera - Dome - MJPEG, MPEG-4, H.264 - 2592 x 1944 - CMOS - Surface Mount

Arecont Vision Parts Accessory Model Overview

Products and parts from Arecont-Vision.
Arecont Vision AV5245DN-01-DA-LG Products Overview
Stylish MegaBall® 2 multi-megapixel cameras provide ample resolution to zoom-in for details in live or recorded video. These indoor all-in-one solutions integrate a 1080p, 3 or 5-megapixel (MP) camera with fast frame rates and a remote focus/zoom P-iris lens with an adjustable wall mount or flush and surface mount dome housing. On 5MP models, an optional manual lens with an ImmerVision Enables® panomorph system offers 180° and 360° views. H.264 compression reduces network bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. True Day/Night functionality allows for 24-hour surveillance. WDR (Wide Dynamic Range) up to 100dB at full resolution balances light and dark areas in the same scene (1080p and 3MP). Binning mode for increased low light sensitivity is available for 3MP and 5MP cameras.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Fixed Focal Length:
1.12 mm
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • MJPEG
  • MPEG-4
  • H.264
Maximum Video Resolution:
2592 x 1944
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.12 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Physical Characteristics
Mount Type:
Surface Mount
Form Factor:
Dome
Height:
3.8"
Weight (Approximate):
1.20 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • REACH
  • WEEE
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0749857518145, 0847778007813
UPC: 749857518145, 847778007813
EAN: 0749857518145, 0847778007813
UNSPSC: 46171610
The Arecont Vision AV5245DN-01-DA-LG Products is also known as ARE-AV5245DN01DALG
