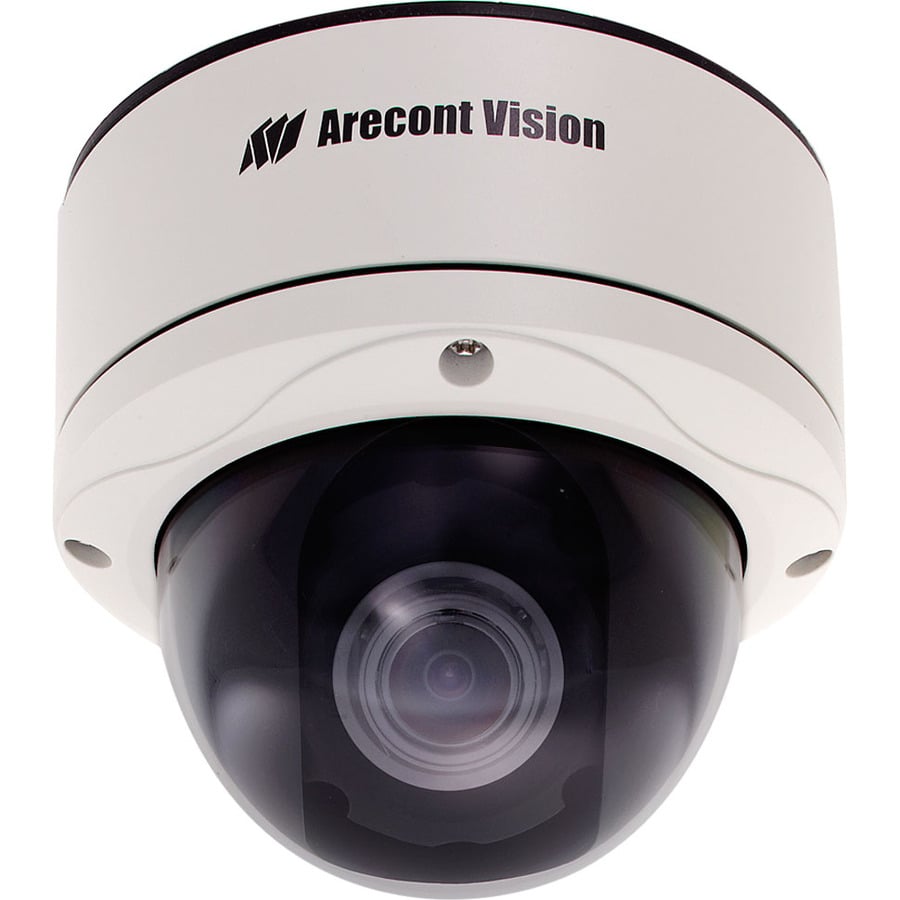

Arecont Vision AV3255AM-H Security Camera

The Arecont Vision AV3255AM-H Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Arecont Vision - Arecont Vision MegaDome AV3255AM-H Network Camera - Dome - H.264, MJPEG, MPEG-4 - 2048 x 1536 - 3x Optical - CMOS - Fast Ethernet
  • Network camera - Helps achieve high-quality video results
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 2048 x 1536 video resolution
Read More
Discontinued Need Assistance?
Add to Quote
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV3255AM-H Security Camera Overview

The AV3255AM-H MegaDome® 2 series network camera is part of Arecont Vision's full line of H.264 MegaDome® series cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides full 2048 x 1536 megapixel resolution at full video frame rates of 21fps. The AV3255AM-H camera line provides an all-in-one solution with integrated 3 megapixel camera, remote focus, remote zoom, auto iris lens, and IP66 and vandal resistant dome enclosure. With the features of binned mode, PSIA compliance, privacy masking, extended motion detection and flexible cropping, the AV3255AM-H is a high sensitivity, PoE (IEEE 802.3af) compliant camera with heater. Built with Arecont Vision's massively-parallel MegaVideo® technology, this camera offers over four times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver the high quality megapixel imaging for both indoor and outdoor applications.

Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.5"
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
Color
Tilt:
90°
Swivel:
360°
Video
Video Formats:
  • H.264
  • MJPEG
  • MPEG-4
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
41 fps
Image Formats:
JPEG
Lens
Lens Type:
Zoom
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Lens Included:
Yes
Maximum Aperture:
f/1.2
Optical Zoom:
3x
Exposure
Shortest Shutter Speed:
1/500000 Second
Longest Shutter Speed:
1/1000 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TFTP
  • HTTP
  • RTSP
  • RTP/TCP
  • RTP/UDP
Power Description
Maximum Power Consumption:
2.28 W
Physical Characteristics
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Weather Proof
Height:
4.9"
Diameter:
5.5"
Weight (Approximate):
2.25 lb
Miscellaneous
Features:
  • Motion Detection
  • ePTZ
Indoor/Outdoor:
Indoor/Outdoor
Certifications & Standards:
  • Class A FCC
  • EN55022 Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • IK-10 (EN62262)
  • IP66 (EN60529)
  • CE
  • UL
  • cUL
  • PSIA
  • ONVIF
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
Environmental Certification:
  • REACH
  • RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
36 Month
Item Numbers
GTIN: 0847778003419
UPC: 847778003419
EAN: 0847778003419
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Arecont Vision AV3255AM-H Security Camera is also known as ARE-AV3255AMHK
