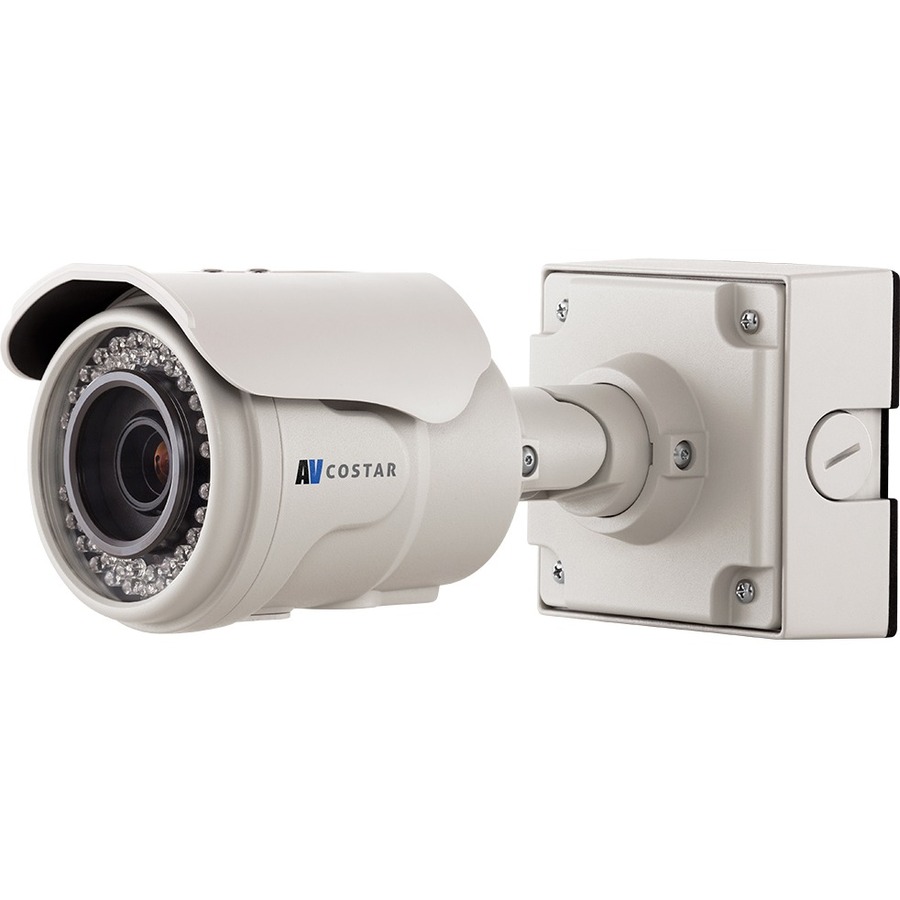

Arecont Vision AV3226PMIR Security Camera

Arecont Vision - MegaView 2 Multi-Megapixel Camera (3MP, 21fps, WDR, IRArray, D/N, 3-9mm, Remote Foc/ZmP-Iris, PoEPwrFan)
  • NDAA Compliant
  • SNAPstream™ Capability to Reduce Bandwidth without Impacting Image Quality
  • Outdoor Rated IP66 and IK-10 Impact-Resistant Housing
  • Network Protocols Include 802.1x, DHCP, QoS, IPv6, and More
  • Privacy Mask, Motion Detection, Flexible Cropping, Bit Rate Control, Multi-Streaming, Multicasting, and Forensic Zooming
  • True Day/Night Functionality with Mechanical IR Cut Filter and IR LEDs
  • Dual Encoder H.264/MJPEG
  • Easily Adjustable 3-Axis Wall Mount, Junction Box Included
  • 3MP Resolution
  • 2.8-8mm Wide Angle Lens
Read More
$907.69
Add to Quote
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV3226PMIR Security Camera Overview

The AV3226 MegaView 2 3-megapixel wide dynamic range (WDR) series network camera is part of Arecont Vision's full line of H.264 MegaView® cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides 2048x1536 megapixel resolution at full video frame rates of 21 frames per second (fps). The AV3226 camera line provides an all-in-one solution with integrated 3 megapixel WDR camera, IR illuminator, remote focus, remote zoom, P-iris IR corrected lens and vandal resistant aluminum cylindrical (Bullet-style) enclosure with IP66 weatherproofing standard.

With the features of ONVIF Profile S conformance, auto adjustment between WDR and LDR modes, privacy mask, extended motion detection and flexible cropping, the AV3226 is a high sensitivity, PoE (IEEE 802.3af) compliant Day/Night camera w/ IR illuminator. Built with Arecont Vision's massively-parallel MegaVideo® processing technology, this camera offers more than 10-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor/outdoor applications.

Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
100 ft
Night Vision Type:
Infrared
Number of IR LEDs:
48
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H-FOV: 105°-39°
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
  • H.264 (MPEG-4 Part 10)
  • MJPEG
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Video Signal Format:
  • NTSC
  • PAL
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
8 mm
Lens Included:
Yes
Maximum Aperture:
f/1.2
Optical Zoom:
2.9x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 24 V AC
  • 48 V DC
Physical Characteristics
Mount Type:
  • Corner Mount
  • Junction Box Mount
  • Pole Mount
  • Wall Mount
Form Factor:
Bullet
Durability:
  • Weather Proof
  • Impact Resistant
  • Weather Resistant
Height:
4.7"
Width:
4.7"
Depth:
11.1"
Weight (Approximate):
3.88 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
90%
Miscellaneous
Features:
  • Day/Night
  • Built-in IR LED
  • Removable IR Cut-off Filter
  • Wide Dynamic Range
  • SD Card Local Storage
  • Motion Detection
  • Privacy Masking
  • Back Light Compensation (BLC)
  • 3-Axis Adjustable
  • Audio Compression
  • Microphone In
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • MegaView 2 AV3226PMIR Network Camera
  • Junction Box
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
36 Month
Item Numbers
GTIN: 0008082479578
UPC: 008082479578
EAN: 0008082479578
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Arecont Vision AV3226PMIR Security Camera is also known as ARE-AV3226PMIR
