Recording Formats:
HD
HD Recording:
Yes

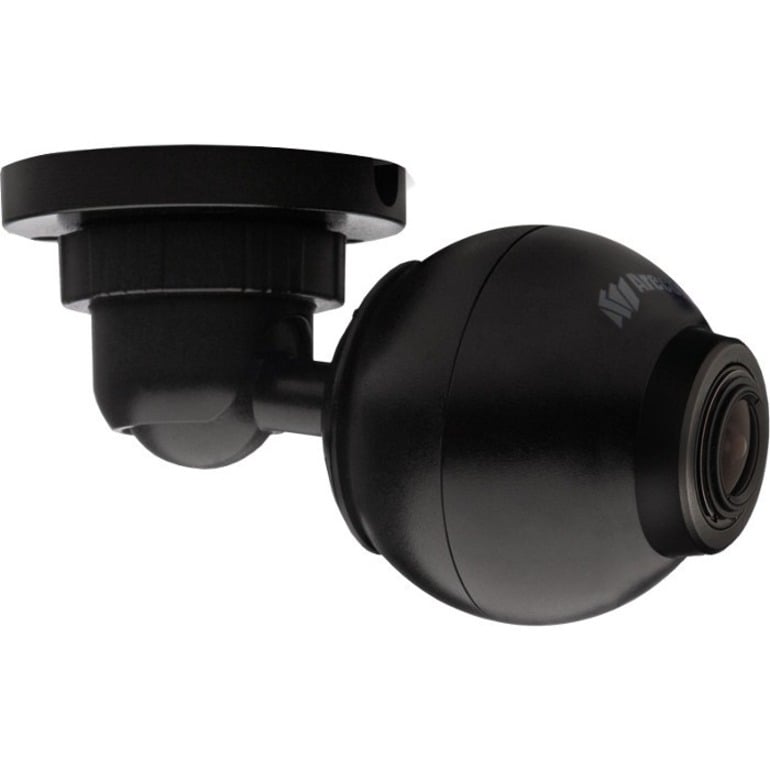

Arecont Vision AV3146DN-3310-D-LG Security Camera
Part Number:
AV3146DN-3310-D-LG
Model:
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV3146DN-3310-D-LG Security Camera Overview
The AV3146 MegaBall™ 3-megapixel WDR network camera is part of Arecont Vision's full line of H.264 MegaBall™ cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 2048 (H) x 1536 (V) megapixel resolution at full video frame rates of 21 frames per second (fps). The AV3146 camera line provides an all-in-one indoor 3" ball shape solution with integrated 3-megapixel WDR camera, 4mm or 3.3-10mm IR corrected lens, wall mount or dome enclosure options. With the features of PSIA conformance, privacy masking, extended motion detection and flexible cropping, the AV3146 is a high sensitivity, PoE (IEEE 802.3af) compliant, day/night camera with audio and light gray dome options. Built with Arecont Vision's massively-parallel MegaVideo® processing technology, this camera offers more than 10-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
3 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- MPEG-4
Maximum Video Resolution:
2048 x 1536
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.30 mm
Maximum Focal Length:
10 mm
Optical Zoom:
3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Physical Characteristics
Mount Type:
- Ceiling Mount
- Wall Mount
- Pendant Mount
Form Factor:
Dome
Height:
1.7"
Weight (Approximate):
1.20 lb
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- REACH
- RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
46171610
The Arecont Vision AV3146DN-3310-D-LG Security Camera is also known as
ARE-AV3146DN3310DLG
