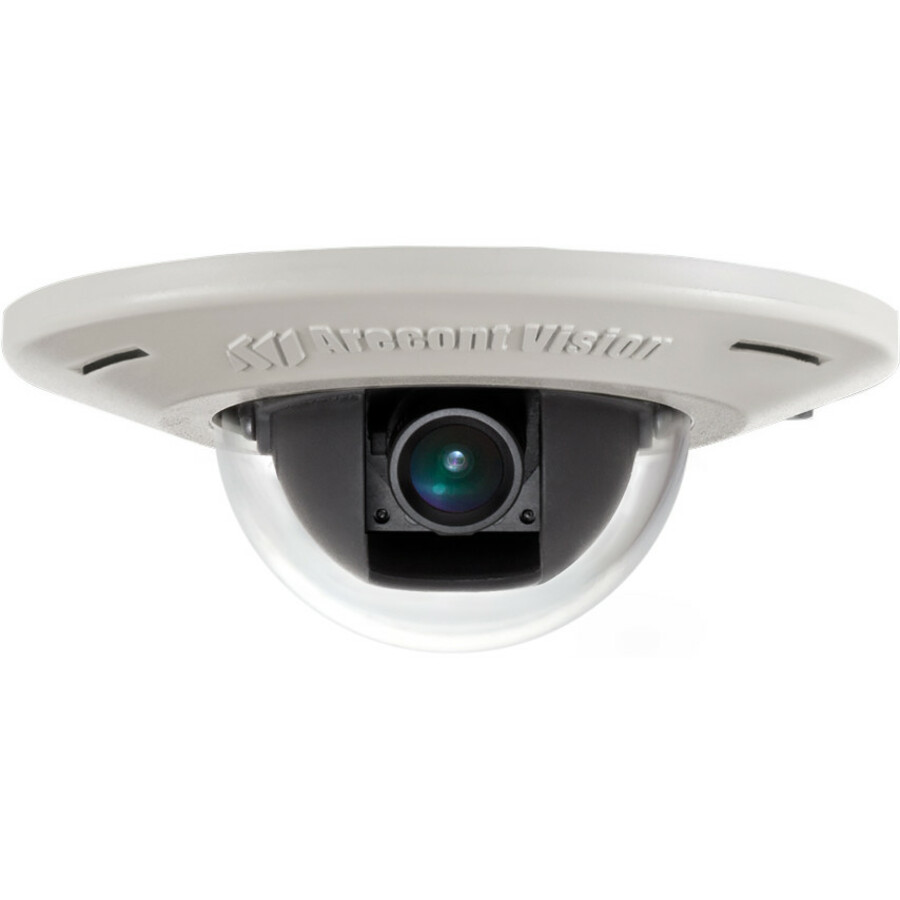

Arecont Vision AV2455DN-F Security Camera

Part Number: AV2455DN-F
Model: Parts
Add to My Shopping List Add to Compare
$270.69

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
CMOS
Image Sensor Size
1/2.7"
Color Supported
Color
Effective Camera Resolution
2.1 Megapixel

Product Description:

  Arecont Vision MicroDome AV2455DN-F 2.1 Megapixel Network Camera - Dome - H.264, MJPEG, MPEG-4 - 1920 x 1080 - CMOS - Fast Ethernet - Flush Mount, Ceiling Mount
Explore all Arecont Vision Parts Accessories
Add to Quote
Arecont Vision AV2455DN-F Security Camera
Arecont Vision AV2455DN-F Security Camera
Arecont Vision AV2455DN-F Security Camera Arecont Vision AV2455DN-F Security Camera

Arecont Vision Parts Accessory Model Overview

Products and parts from Arecont-Vision.
Arecont Vision AV2455DN-F Security Camera Overview
MicroDome™ offers all of the great features of existing Arecont Vision megapixel camera technology like superior image quality and the industry's fastest frame rates, and now in a much smaller, more discreet housing. With an integrated mechanical day/night switcher and pixel binning in 3 and 5 megapixel, the MicroDome™ has excellent low-light capabilities. With an option for true Wide Dynamic Range of up to 100dB at full resolution there are no lighting conditions too tough for the MicroDome™.
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.7"
Color Supported:
Color
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
  • MPEG-4
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
42 fps
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
4 mm
Lens Included:
Yes
Lens Mount Type:
M12-mount
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/1000 Second
Longest Shutter Speed:
1/2 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • TFTP
  • HTTP
  • RTSP
  • RTP/TCP
  • RTP/UDP
  • DHCP
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Maximum Power Consumption:
5.59 W
Physical Characteristics
Mount Type:
  • Flush Mount
  • Ceiling Mount
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Tamper Resistant
  • Weather Proof
Height:
3.1"
Diameter:
4"
Weight (Approximate):
10.93 oz
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
Indoor/Outdoor:
Indoor
Certifications & Standards:
  • UL (CB)
  • FCC 47 CFR 15 Class A
  • (CE) EN55022 Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • EN60950-1
  • IP66 (EN60529)
  • IK-10
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
United States
Environmentally Friendly:
Yes
Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0847778009015
UPC: 847778009015
EAN: 0847778009015
UNSPSC: 46171610
The Arecont Vision AV2455DN-F Security Camera is also known as ARE-AV2455DNF
