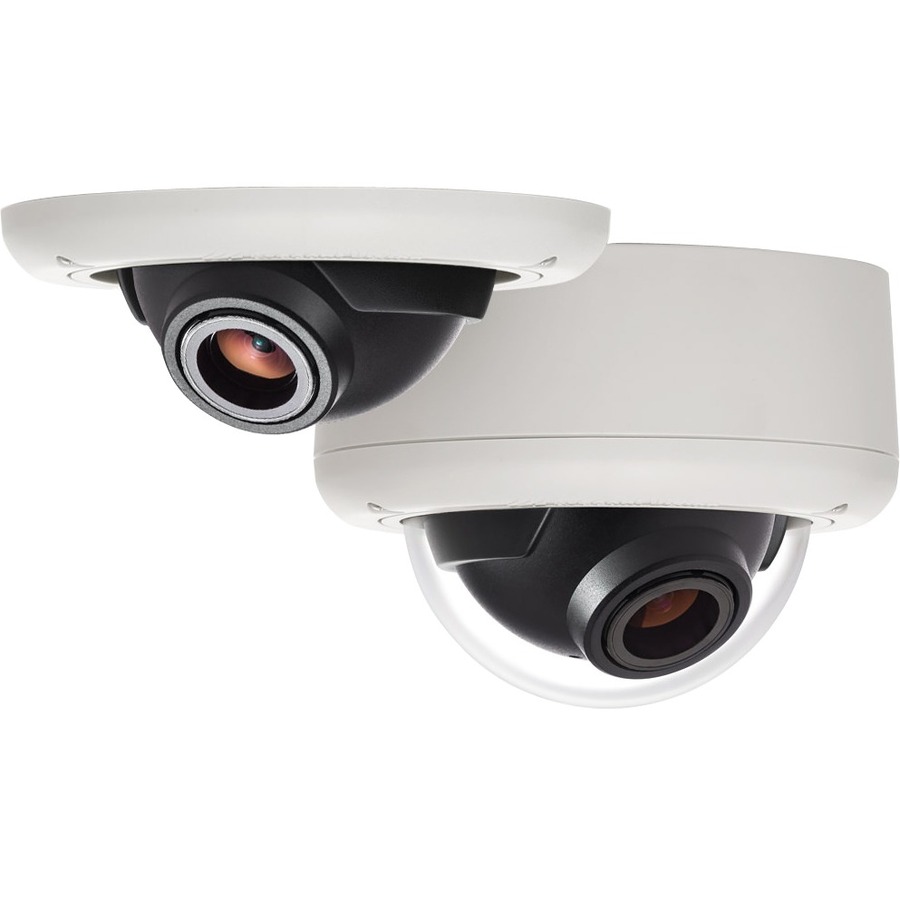

Arecont Vision AV2246PM-D-LG Security Camera

The Arecont Vision AV2246PM-D-LG Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Arecont Vision - Arecont Vision MegaBall AV2246PM-D-LG 2.1 Megapixel Network Camera - Dome - MJPEG, H.264, MPEG-4 - 1920 x 1080 - 3.3x Optical - CMOS - Surface Mount, Wall Mount, Pendant Mount
  • Network camera - Helps achieve high-quality video results
  • Up to 1920 x 1080 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 8.50 mm maximum focal length for dependable identification distances with better coverage
  • f/1.2 maximum aperture for productive capturing according to focal length and lighting conditions
  • 3.3x optical zoom for desired image clarity and maximum capturing convenience
  • Up to 50 ft of night vision
  • HD recording format for exceptional video quality with maximum productivity
  • Zoom lens type provides enhanced visual resolution and effectively maintains focus when its focal length changes
  • Surface Mount mount type is reliable and allows trouble-free and easy usage
Read More

Need a different version? See all Arecont Vision Parts Accessories

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Arecont Vision AV2246PM-D-LG Security Camera
Arecont Vision AV2246PM-D-LG Security Camera Arecont Vision AV2246PM-D-LG Security Camera
Arecont Vision AV2246PM-D-LG Security Camera
Arecont Vision AV2246PM-D-LG Security Camera
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV2246PM-D-LG Security Camera Overview

The AV2246 MegaBall® 2 1080p full HD wide dynamic range (WDR) network camera is part of Arecont Vision's full line of H.264 MegaBall® cameras. This fully-compliant implementation of H.264 (MPEG-4, Part 10) provides full 1920 x 1080 megapixel resolution at full video frame rates of 30 frames per second (fps). The AV2246 camera line provides an all-in-one indoor 3" ball shape solution with integrated 1080p WDR camera, remote focus, remote zoom, p-iris IR corrected lens and wall mount or dome enclosure options.

With the features of PSIA conformance, auto adjustment between WDR and LDR modes, privacy masking, extended motion detection and flexible cropping, the AV2246 is a high sensitivity, PoE (IEEE 802.3af) compliant day/night camera. Built with Arecont Vision's massively-parallel MegaVideo® processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor/outdoor applications.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
50 ft
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • MPEG-4
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
8.50 mm
Maximum Aperture:
f/1.2
Optical Zoom:
3.3x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Surface Mount
  • Wall Mount
  • Pendant Mount
Form Factor:
Dome
Height:
3.9"
Weight (Approximate):
1.20 lb
Miscellaneous
Indoor/Outdoor:
Indoor/Outdoor
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0847778007653
UPC: 847778007653
EAN: 0847778007653
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Arecont Vision AV2246PM-D-LG Security Camera is also known as ARE-AV2246PMDLG
