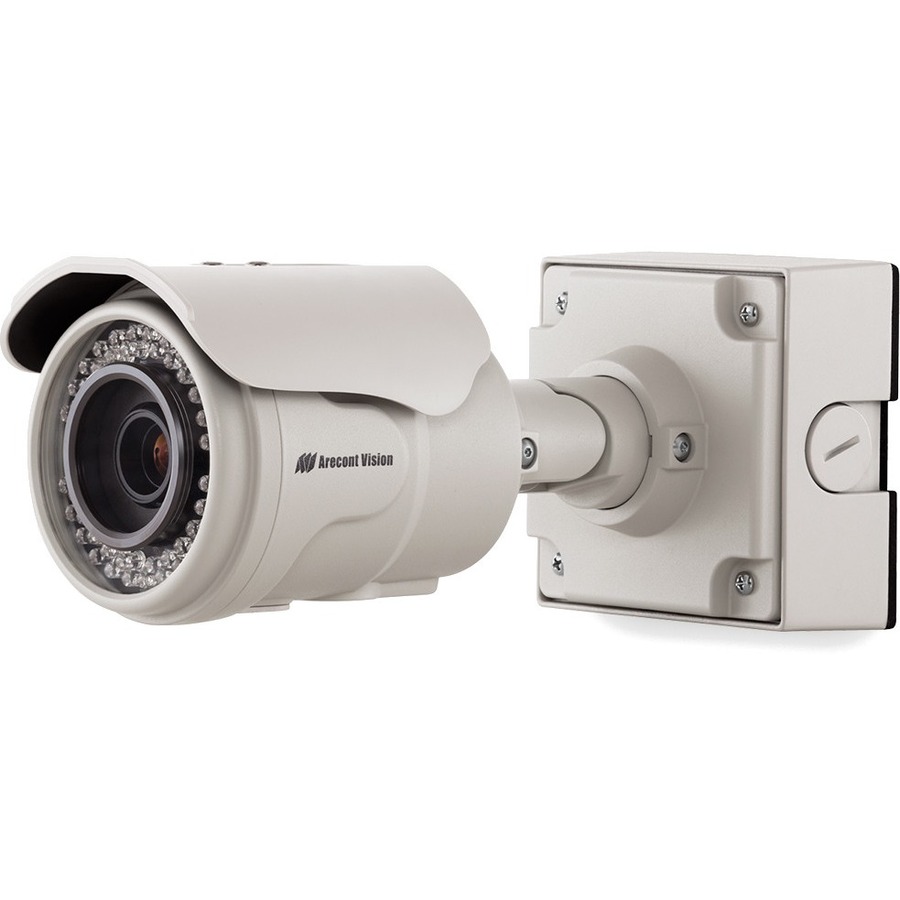

Arecont Vision AV2226PMIR Security Camera

Arecont Vision - Arecont Vision MegaView AV2226PMIR 2.1 Megapixel Network Camera - Bullet - H.264, MJPEG - 1920 x 1080 - 3x Optical - CMOS - Fast Ethernet - Wall Mount, Pole Mount, Corner Mount

For remote surveillance needs, this network camera is best suited
Up to 1920 x 1080 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
9 mm maximum focal length for dependable identification distances with better coverage
f/1.2 maximum aperture for better light absorption and dependable, better-quality results
3x optical zoom for bringing the subject closer for maximum surveillance efficiency
Zoom lens type allows you to get a better, wide viewing angle, without compromising the quality of the image
Wall mount encourages collaboration, interactivity with maximum productivity
Wired connectivity technology offers maximum visual convenience

Need a different version? See all Arecont Vision Parts Accessories

$804.11

Add to Quote

Arecont Vision AV2226PMIR Security Camera

Overview

Arecont Vision Parts Accessory Model Overview

Products and parts from Arecont-Vision.

Arecont Vision AV2226PMIR Security Camera Overview

The AV2226 MegaView® 2 1080p full HD wide dynamic range (WDR) series network camera is part of Arecont Vision's full line of H.264 MegaView® cameras. This fully compliant implementation of H.264 (MPEG 4, Part 10) provides 1920x1080 megapixel resolution at full video frame rates of 30 frames per second (fps). The AV2226 camera line provides an all-in-one solution with integrated 1080p full HD WDR camera, IR illuminator, remote focus, remote zoom, p-iris IR corrected lens and vandal resistant aluminum cylindrical (Bullet-style) enclosure with IP66 weatherproofing standard.

With the features of PSIA compliance, auto adjustment between WDR and LDR modes, privacy mask, extended motion detection and flexible cropping, the AV2226 is a high sensitivity, PoE (IEEE 802.3af) compliant Day/Night camera w/ IR illuminator. Built with Arecont Vision's massively-parallel MegaVideo® processing technology, this camera offers more than 6-times the resolution of standard resolution IP cameras with the ability to output full real-time frame rates and deliver high-quality megapixel imaging for indoor applications.

Detailed Specs

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/3.2"

Color Supported:

Color
Monochrome

Field of View:

27° to 82°

Effective Camera Resolution:

2.1 Megapixel

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

1920 x 1080

Maximum Frame Rate:

41 fps

Lens

Lens Type:

Zoom

Minimum Focal Length:

3 mm

Maximum Focal Length:

9 mm

Lens Included:

Yes

Wide Angle:

Yes

Maximum Aperture:

f/1.2

Optical Zoom:

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

RTSP
RTP/TCP
RTP/UDP
HTTP
DHCP
TFTP

Interfaces/Ports

Network (RJ-45):

Yes

Power Description

Maximum Power Consumption:

12.40 W

Physical Characteristics

Mount Type:

Wall Mount
Pole Mount
Corner Mount

Form Factor:

Bullet

Durability:

Vandal Resistant

Height:

4.3"

Width:

4.3"

Depth:

9.3"

Weight (Approximate):

3.80 lb

Miscellaneous

Features:

Day/Night
Built-in IR LED
Privacy Masking
Motion Detection
Built-in Mechanical ICR
Back Light Compensation (BLC)
ePTZ

Indoor/Outdoor:

Indoor

Package Contents:

MegaView AV2226PMIR Network Camera
Junction Box

Certifications & Standards:

IP66
PSIA
FCC
(CE) EN55022 Class A
EN55024
EN61000-3-2
EN61000-3-3
EN60950-1
cULus

Ingress Protection Rating:

IP66

Environmentally Friendly:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0847778006267

UPC: 847778006267

EAN: 0847778006267

UNSPSC: 46171610
