Fixed Focal Length:
6.20 mm

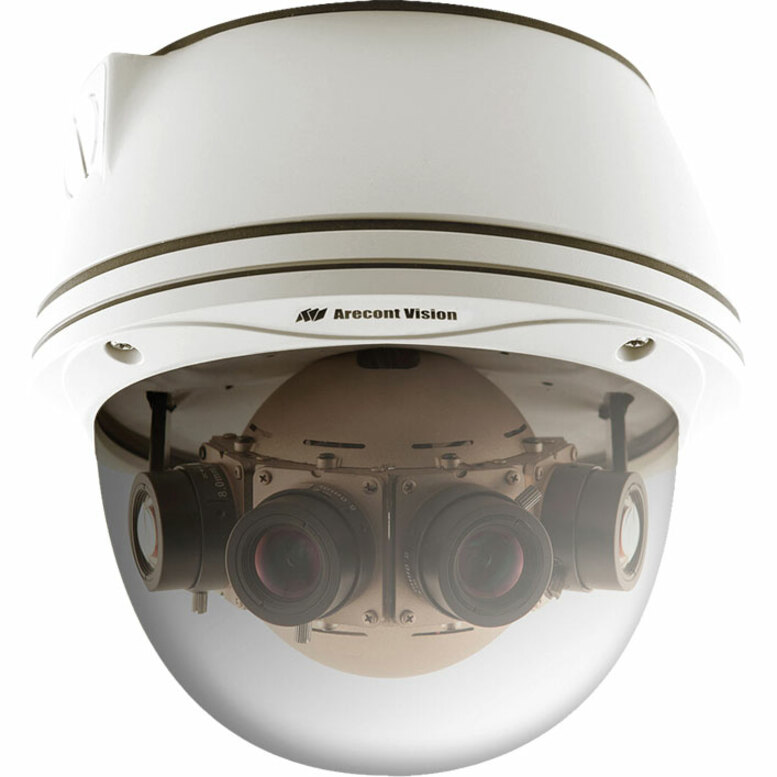

Arecont Vision AV20185DN-HB Security Camera
Part Number:
AV20185DN-HB
Model:
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV20185DN-HB Security Camera Overview
World's first 20mp h.264 day/night 180° and 360° panoramic megapixel cameras. The fastest megapixel image rates on the market, 3.5fps at 20mp and 11fps at 5mp. Unparalleled high definition resolution to substitute up to sixty-five analog cameras.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
White Balance Modes:
Auto
Maximum Illumination:
0.3 lux
Color Supported:
Color
Tilt:
90°
Swivel:
360°
Video
Video Formats:
- MJPEG
- MPEG-4
Maximum Video Resolution:
10240 x 1920
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
6.20 mm
Lens Included:
Yes
Maximum Aperture:
f/1.8
Focus Modes:
Fixed Focus
Exposure
Exposure Control:
Auto
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TFTP
- HTTP
- RTSP
- RTP/TCP
- RTP/UDP
Power Description
Maximum Power Consumption:
9 W
Physical Characteristics
Height:
6.6"
Diameter:
6.9"
Weight (Approximate):
3.81 lb
Miscellaneous
Certifications & Standards:
- IP66
- FCC
- CE
- UL
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
12 Month
Item Numbers
GTIN:
0847778005130
UPC:
847778005130
EAN:
0847778005130
UNSPSC:
46171610
The Arecont Vision AV20185DN-HB Security Camera is also known as
ARE-AV20185DNHB
