Recording Formats:
HD
HD Recording:
Yes
Arecont Vision AV20175DN-08 Products
Part Number:
AV20175DN-08
Model:
Parts
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV20175DN-08 Products Overview

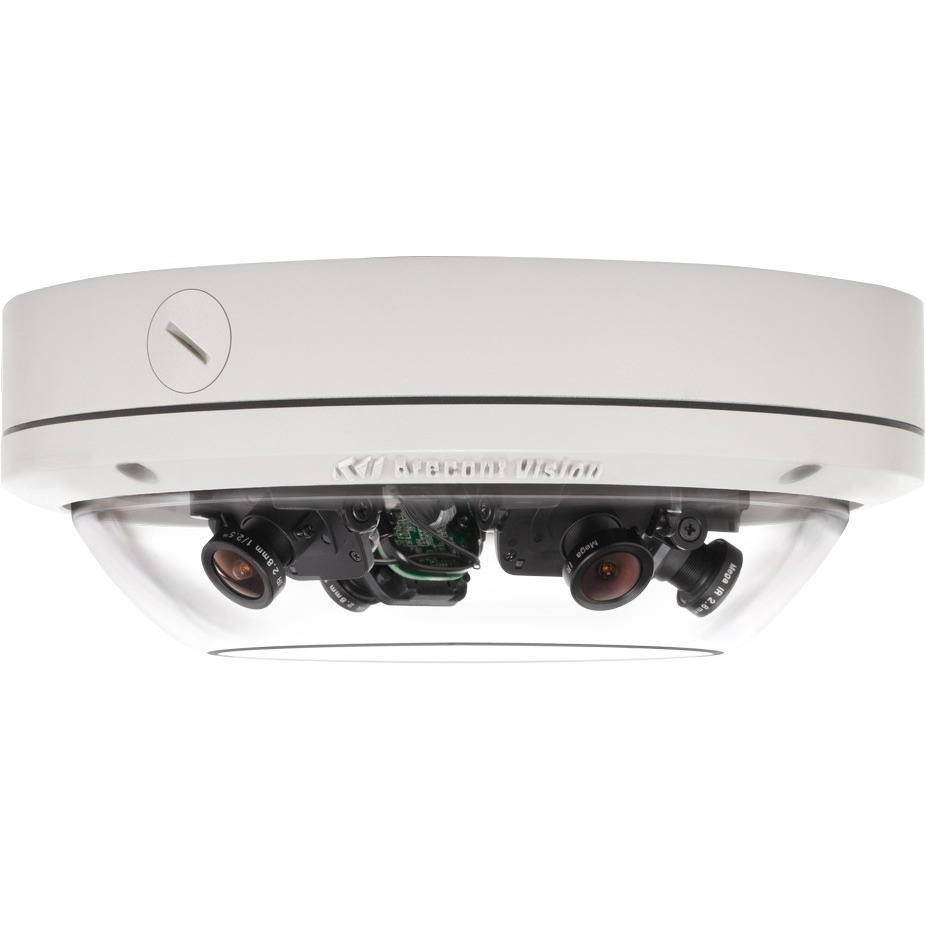

Delivering revolutionary flexibility, Arecont Vision SurroundVideo® Omni multi-sensor multi-megapixel cameras provide ample resolution to zoom-in for details in live and recorded video. Arecont Vision integrates up to four imagers, each with a choice of IR corrected lens, into an IP66 rated / IK-10 impact resistant dome housing. A unique track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270-degree view at the corner of a building. SurroundVideo Omni cameras are available in total resolutions of 12-megapixels (MP) WDR or 20MP, all with fast frame rates. 2.8mm, 4mm, 6mm, 8mm, 12mm and 16mm lens options are available. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Wide Dynamic Range (WDR) up to 100dB at full resolution is available in the 12MP model.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
20 Megapixel
Video
Video Formats:
- H.264
- MJPEG
- MPEG-4
Maximum Video Resolution:
10240 x 1920
Lens
Lens Type:
Fixed
Maximum Focal Length:
8 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Surface Mount
- Pole Mount
- Corner Mount
- Pendant Mount
- Wall Mount
Form Factor:
Dome
Height:
3.1"
Weight (Approximate):
2.80 lb
Miscellaneous
Environmentally Friendly:
Yes
Country of Origin:
United States
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0847778005291
UPC:
847778005291
EAN:
0847778005291
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Arecont Vision AV20175DN-08 Products is also known as
ARE-AV20175DN08
