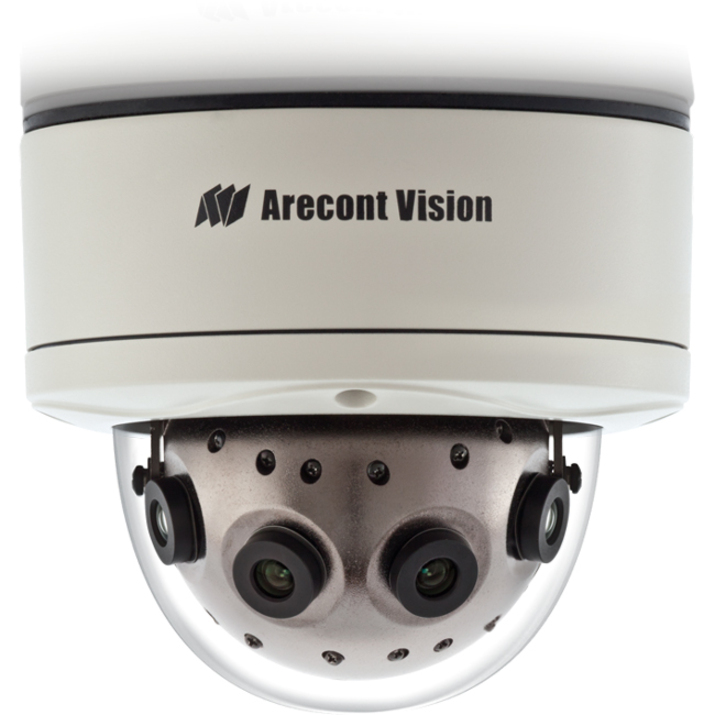

Arecont Vision AV12186DN Security Camera

The Arecont Vision AV12186DN Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Arecont Vision - Arecont Vision SurroundVideo AV12186DN 12 Megapixel Network Camera - Dome - MJPEG, H.264 - 8192 x 1536 - CMOS - Fast Ethernet
  • For remote surveillance needs, this network camera is best suited
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • Up to 8192 x 1536 resolution for surveillance in real-time
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Arecont Vision Parts Accessory Model Overview
Products and parts from Arecont-Vision.
Arecont Vision AV12186DN Security Camera Overview
The AV12186DN SurroundVideo® series network camera is WDR (wide dynamic range), dual encoder (H.264 & MJPEG), 12 Megapixel resolution, 180 degree panoramic Day/Night IP camera, designed to provide an all-in-one solution with integrated four 3 megapixel WDR sensors, four 5.4mm M12 lenses, IK-10 vandal resistant dome and housing, rated IP66 for water and dust protection. The AV12186DN is a PoE (IEEE 802.3af) compliant Day/Night camera, featuring WDR switch control, PSIA compliance, privacy masking, extended motion detection and flexible cropping. Built with Arecont Vision's proprietary massively-parallel MegaVideo® technology, the AV12186DN has the ability to output multiple image formats allowing the simultaneous viewing of the full resolution field of view and regions of interest for high definition forensic zooming. Binning technique improves low-light performance, increases sensitivity and produces better SNR by combining and averaging pixels. This camera offers over ten times the resolution of standard resolution IP cameras with the ability to output full real time frame rates.
Technical Information
Fixed Focal Length:
5.40 mm
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/3.2"
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
  • Monochrome
  • Color
Tilt:
90°
Swivel:
360°
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
Maximum Video Resolution:
8192 x 1536
Maximum Frame Rate:
17 fps
Image Formats:
JPEG
Lens
Lens Type:
Fixed
Maximum Focal Length:
5.40 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • HTTP
  • TFTP
  • RTSP
  • RTP/TCP
  • RTP/UDP
  • DHCP
Physical Characteristics
Form Factor:
Dome
Durability:
  • Vandal Resistant
  • Water Proof
  • Dust Proof
Height:
4.9"
Diameter:
5.5"
Weight (Approximate):
2.80 lb
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
Certifications & Standards:
  • FCC 47 CFR 15 Class A
  • UL
  • ONVIF
  • (CE) EN55022 Class A
  • EN55024
  • EN61000-3-2
  • EN61000-3-3
  • EN60950-1
  • IK-10 (EN62262)
  • IP66 (EN60529)
  • cULus
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • REACH
  • RoHS
Country of Origin:
United States
Item Numbers
GTIN: 0030915438032, 0847778005208, 4923773172797, 4923773196182
UPC: 030915438032, 847778005208
EAN: 0030915438032, 0847778005208, 4923773172797, 4923773196182
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Arecont Vision AV12186DN Security Camera is also known as ARE-AV12186DN
