Arecont Vision AV12176DN-NL Products

The Arecont Vision AV12176DN-NL Products has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

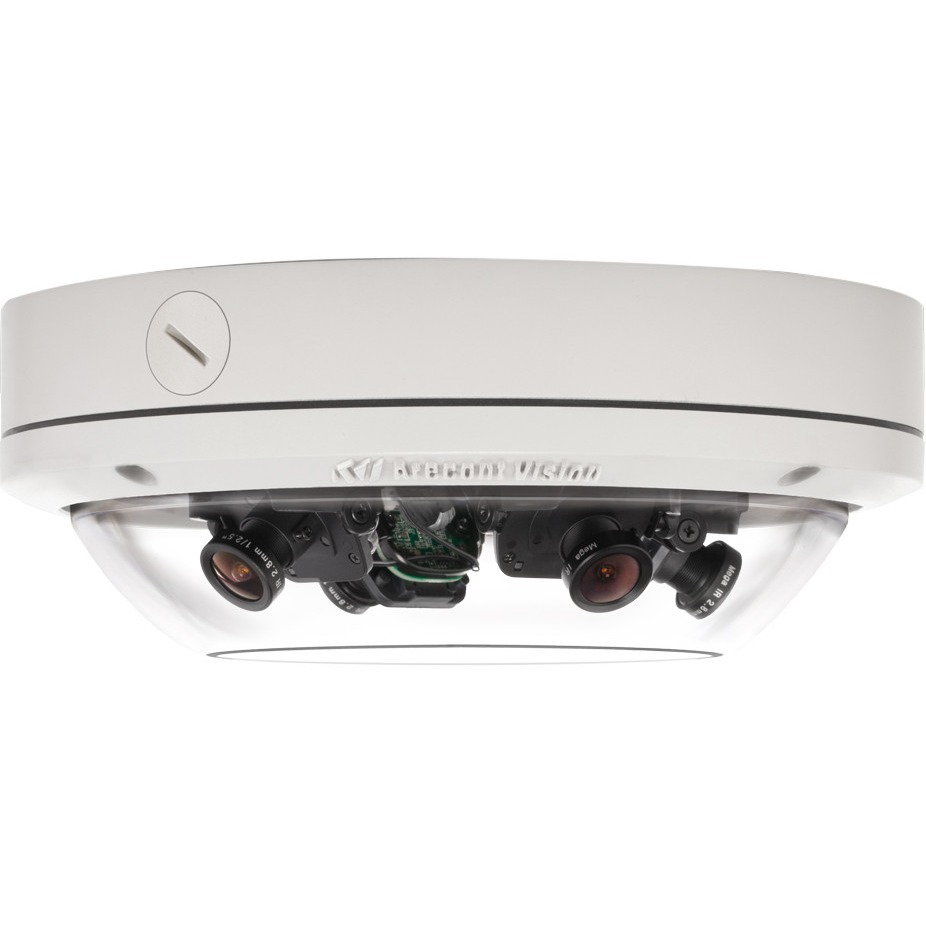

Arecont Vision - Arecont Vision SurroundVideo Omni AV12176DN-NL 3 Megapixel Network Camera - Dome - H.264, MPEG-4, MJPEG - 8192 x 1536 - CMOS - Corner Mount, Pole Mount, Wall Mount, Pendant Mount, Surface Mount

For remote surveillance needs, this network camera is best suited
Up to 8192 x 1536 resolution for surveillance in real-time
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Up to 34 ft of night vision
HD recording format for a lively video quality experience with maximum dependability
Corner Mount mount type allows convenient, easy usage with maximum efficiency
Wired connectivity technology offers maximum visual convenience

Need a different version? See all Arecont Vision Parts Accessories

Discontinued Need Assistance?

Add to Quote

Overview

Arecont Vision Parts Accessory Model Overview

Products and parts from Arecont-Vision.

Arecont Vision AV12176DN-NL Products Overview

Delivering revolutionary flexibility, Arecont Vision SurroundVideo® Omni multi-sensor multi-megapixel cameras provide ample resolution to zoom-in for details in live and recorded video. Arecont Vision integrates up to four imagers, each with a choice of IR corrected lens, into an IP66 rated / IK-10 impact resistant dome housing. A unique track design allows up to four individual sensor gimbals to be independently placed in nearly any configuration, including at the intersection of hallways or in a 270-degree view at the corner of a building. SurroundVideo Omni cameras are available in total resolutions of 12-megapixels (MP) WDR or 20MP, all with fast frame rates. 2.8mm, 4mm, 6mm, 8mm, 12mm and 16mm lens options are available. H.264 compression reduces bandwidth and storage requirements while delivering full frame rates and full resolution without sacrificing image quality. Wide Dynamic Range (WDR) up to 100dB at full resolution is available in the 12MP model.

Detailed Specs

Technical Information

Recording Formats:

HD Recording:

Yes

Night Vision Distance:

34 ft

Display & Graphics

Image Sensor Type:

CMOS

Color Supported:

Color

Effective Camera Resolution:

3 Megapixel

Video

Video Formats:

H.264
MPEG-4
MJPEG

Maximum Video Resolution:

8192 x 1536

Maximum Frame Rate:

5 fps

Network & Communication

Connectivity Technology:

Wired

Remote Management:

Yes

Interfaces/Ports

Network (RJ-45):

Yes

Physical Characteristics

Mount Type:

Corner Mount
Pole Mount
Wall Mount
Pendant Mount
Surface Mount

Form Factor:

Dome

Height:

3.1"

Weight (Approximate):

2.80 lb

Miscellaneous

Indoor/Outdoor:

Indoor/Outdoor

Environmentally Friendly:

Yes

Country of Origin:

United States

Warranty

Limited Warranty:

36 Month

Item Numbers

GTIN: 0013669411568, 0847778005246

UPC: 013669411568, 847778005246

EAN: 0013669411568, 0847778005246

UNSPSC: 46171610

Reviews

Q&A

Get help from a Barcoding Expert!

The Arecont Vision AV12176DN-NL Products is also known as ARE-AV12176DNNL
